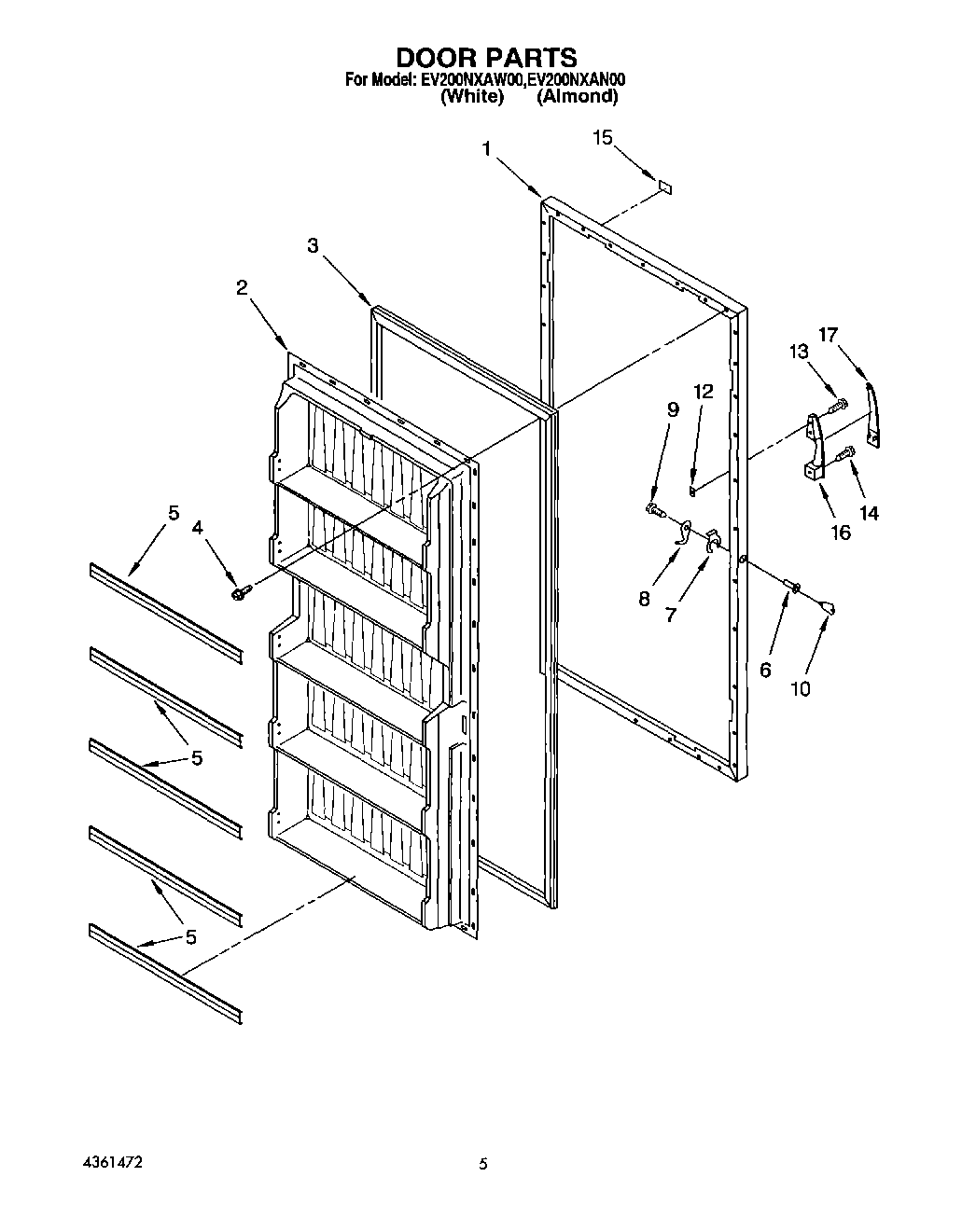

| 1 | Exterior Door (Almond) |
| 1 | Exterior Door (White) |
| 2 | Interior Panel |
| 3 | WP4-81049-001 Whirlpool Refrigerator Door Gasket |
| 4 | WP489478 Whirlpool Refrigerator Screw |
| 5 | Door Shelf Trim (4) |
| 6 | 4357145 Whirlpool Refrigerator Door Lock |
| 7 | Spring Clip |
| 8 | 3-35284-001 Whirlpool Refrigerator Door Lock |
| 10 | WP4356840 Whirlpool Refrigerator Door Key |
| 12 | Anchor, Screw |
| 13 | Screw, 8-18 x 1-5/8 St. Stl. (4) |
| 14 | Screw (Repair) |
| 15 | Nameplate |
| 16 | Handle |
| 17 | Handle, Insert (Almond) |
| 17 | Insert, Handle (White) |
