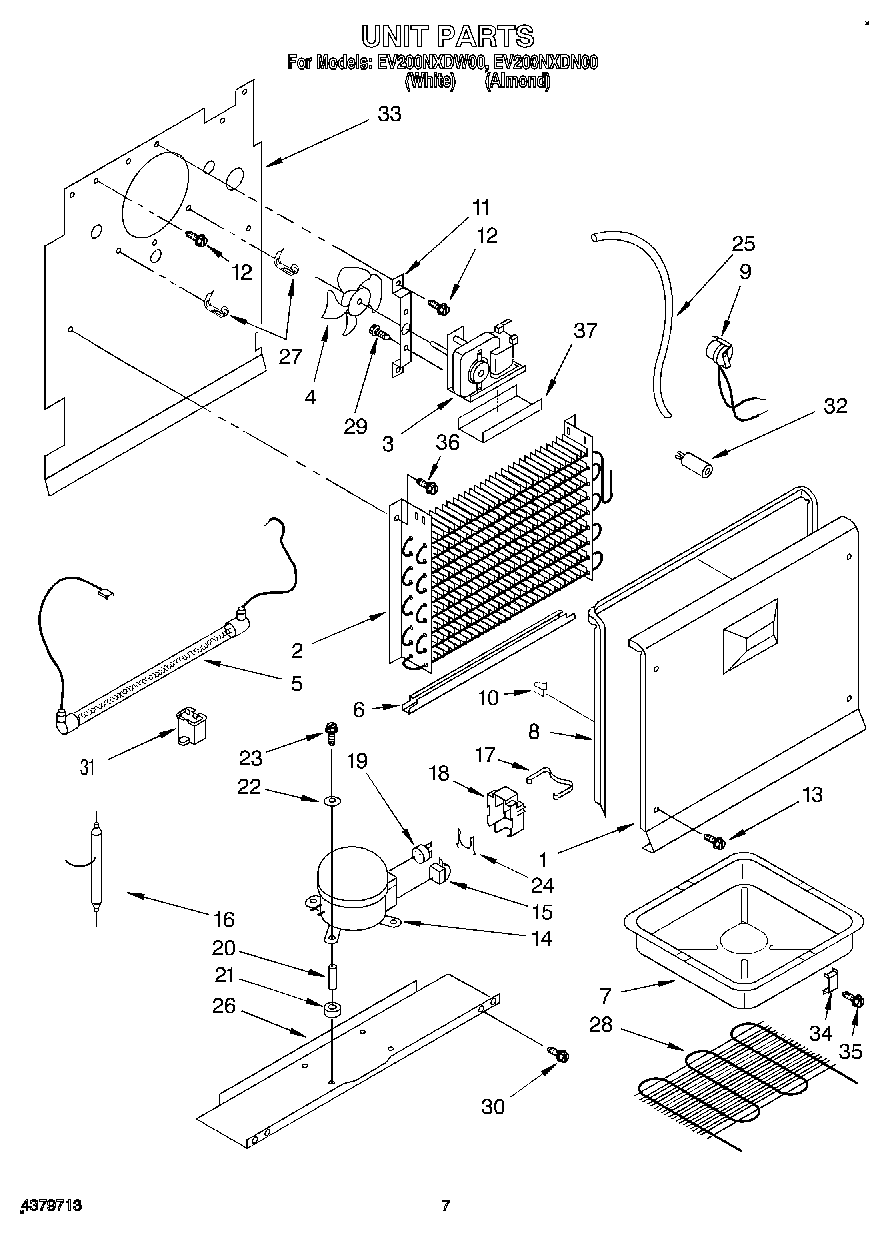

| 1 | Cover, Evaporator |
| 2 | WP4-81546 Whirlpool Refrigerator Evaporator |
| 3 | Fan Motor |
| 4 | BLADE-FAN |
| 5 | W11175809 Whirlpool Refrigerator Heater |
| 6 | Shield Heater |
| 7 | Drain Pan |
| 8 | Gasket, Cover Evaporator |
| 9 | WP4387501 Whirlpool Refrigerator Bimetallic Defrost Assembly |
| 10 | Clip |
| 11 | 2-80028-101 Whirlpool Refrigerator Motor Bracket |
| 12 | 60001022 Whirlpool Oven Screw |
| 13 | WP3-24004-109 Whirlpool Refrigerator Screw |
| 14 | Compressor |
| 15 | Relay |
| 16 | W10843121 Whirlpool Refrigerator Tube |
| 17 | Clip, Cover |
| 18 | Cover |
| 19 | Overload |
| 20 | 4356846 Whirlpool Refrigerator Sleeve |
| 21 | Grommet, Mounting Compressor |
| 22 | Washer |
| 23 | Compressor Mounting Screw |
| 24 | Clip, Overload |
| 25 | WP4357245 Whirlpool Refrigerator Exchanger |
| 26 | Pan, Compressor Mounting |
| 27 | Thermostat, Clip |
| 28 | Precooler |
| 29 | WP3400094 Whirlpool Screw |
| 30 | WP3-24838-048 Whirlpool Refrigerator Screw |
| 31 | WPW10662129 Whirlpool Refrigerator Run Capacitor |
| 32 | Grommet |
| 33 | Plate, Evaporator Mount |
| 34 | Bracket |
| 35 | WP489478 Whirlpool Refrigerator Screw |
| 36 | Screw |
| 37 | 4357128 Whirlpool Refrigerator Motor Bracket |
