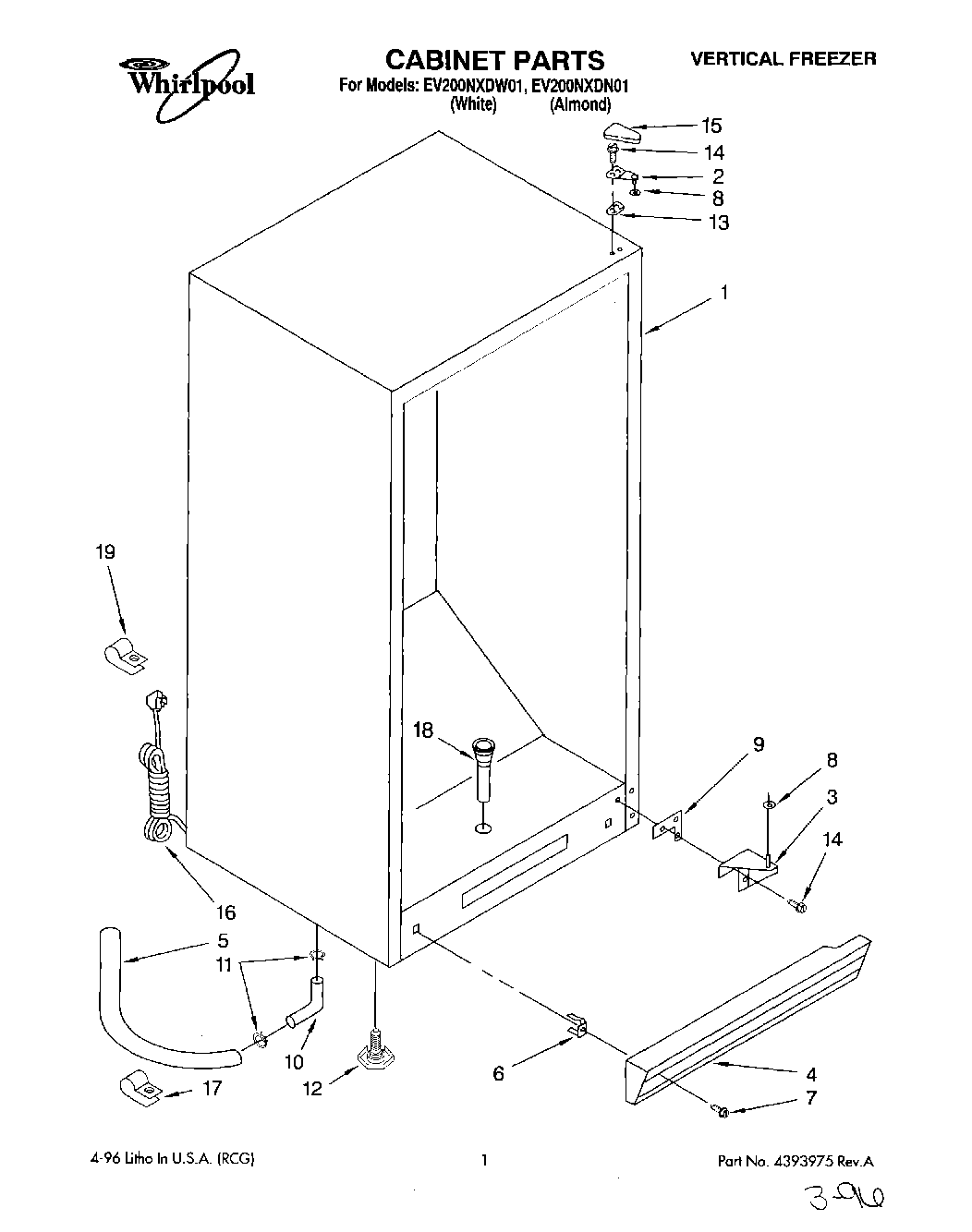

EV200NXDN01 01 – CABINET, LIT/OPTIONAL

Products

Position	Product
	WP503695 Whirlpool Refrigerator Sealer
	TAPE, VINYL (3/4 X 108``)
	876370 Whirlpool Refrigerator Insulation
	212643 Whirlpool Refrigerator Permagum Sealer
	Use & Care Guide
	Wiring Diagram
	WP505587 Whirlpool Refrigerator Sealer
1	Cabinet (Not A Serviceable Part)
2	Top, Hinge
2	Top, Hinge
3	Bottom Hinge
3	Bottom, Hinge
4	WP4-60461-006 Whirlpool Refrigerator Grille
4	Grille (Almond Model)
5	Drain Hose
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
9	Shim, Bottom
10	Tube, Drain
11	Clamp Hose
12	W11117769 Whirlpool Refrigerator Leveler
13	4390489 Whirlpool Refrigerator Shim
14	WP8204624 Whirlpool Bolt
15	3-80838-003 Whirlpool Refrigerator Cover
16	Power Cord
17	Hose Clamp
18	Grommet, Drain
19	350956 Whirlpool Spray Assembly
19	72017 Whirlpool Appliance Touch-Up Paint White
19	799344 Whirlpool Refrigerator Paint
19	WP72107 Whirlpool Touchup
19	Almond (Uncut)
19	Clip
19	350930 Whirlpool White Spray Paint
