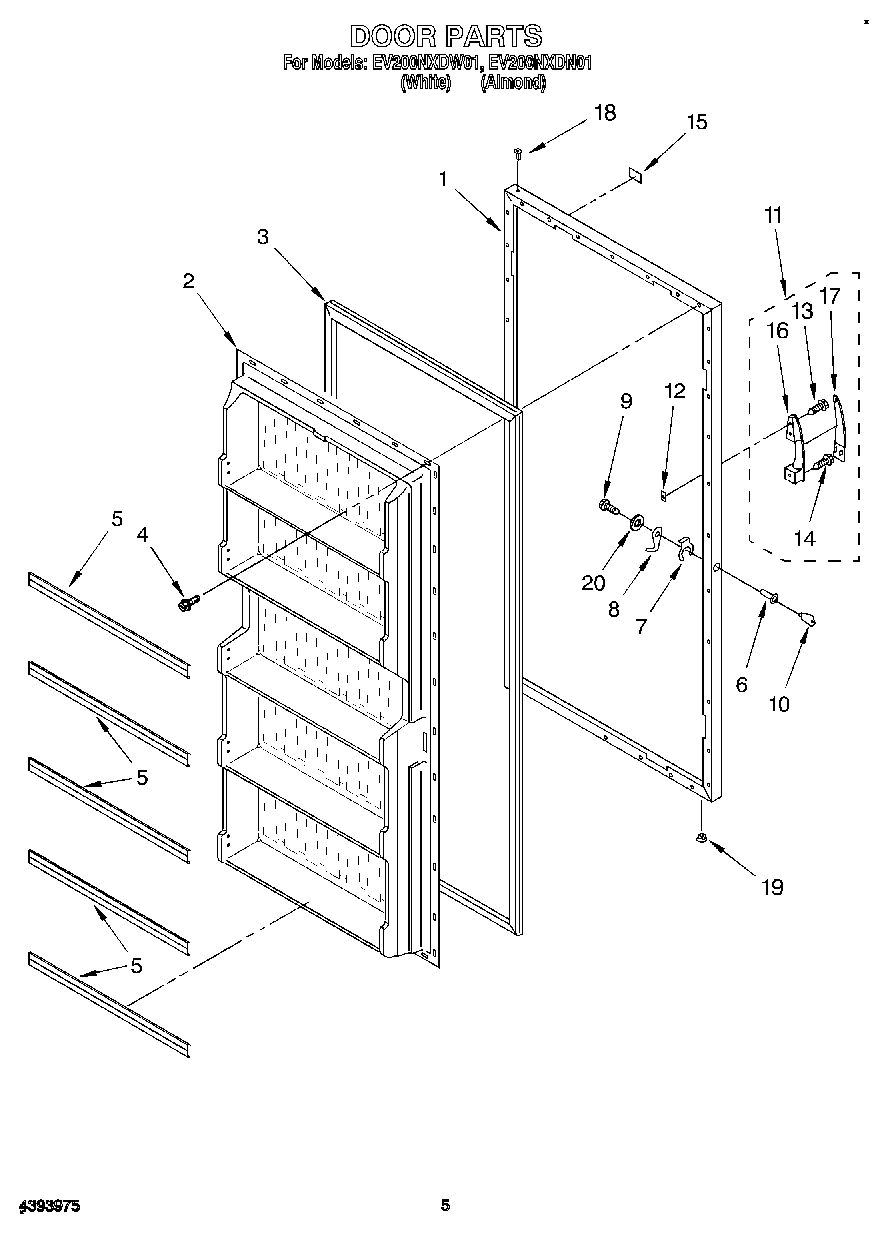

EV200NXDN01 03 – DOOR

Products

Position	Product
1	Exterior Door (Almond (Includes Insulation))
1	Exterior Door
2	Interior Door
3	WP4-81049-001 Whirlpool Refrigerator Door Gasket
4	WP489478 Whirlpool Refrigerator Screw
5	Door Shelf Trim (4)
6	4357145 Whirlpool Refrigerator Door Lock
7	Spring Clip
8	3-35284-001 Whirlpool Refrigerator Door Lock
10	WP4356840 Whirlpool Refrigerator Door Key
11	Handle Assembly (Includes Items 11, 12, 13 & 14)
11	Handle
12	Anchor, Screw
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	Screw
15	Nameplate
16	Handle
17	Interior Door Panel (Refrigerator)
17	Insert, Handle (White)
18	4390731 Whirlpool Refrigerator Hinge Bushing
19	3-24898-007 Whirlpool Refrigerator Vent Plug
20	Washer
