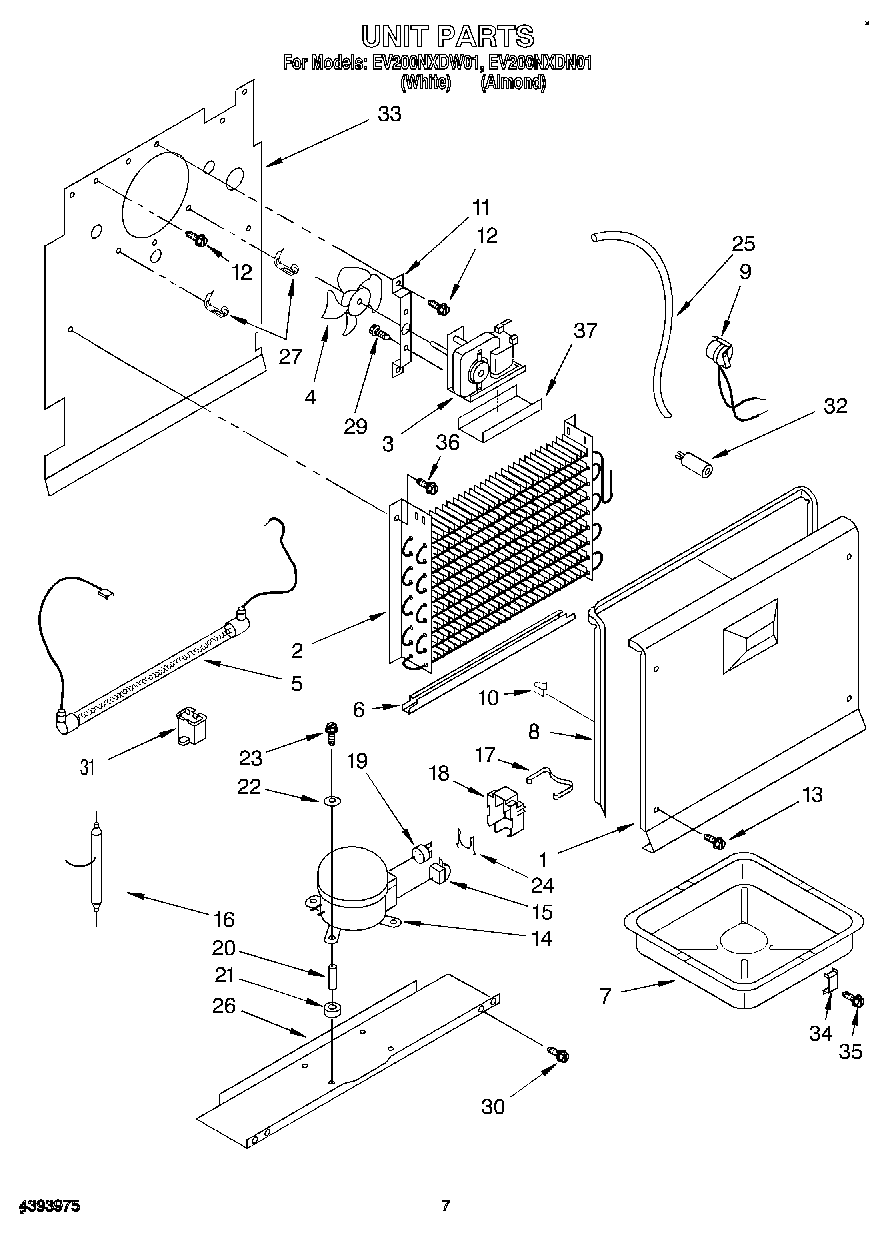

EV200NXDN01 04 – UNIT

Products

Position	Product
1	Cover, Evaporator
2	WP4-81546 Whirlpool Refrigerator Evaporator
3	Fan Motor
4	BLADE-FAN
5	W11175809 Whirlpool Refrigerator Heater
6	Shield Heater
7	Drain Pan
8	Gasket, Cover Evaporator
9	WP4387501 Whirlpool Refrigerator Bimetallic Defrost Assembly
10	Clip
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	Clip, Cover
18	Cover
19	Overload
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	Compressor Mounting Screw
24	Clip, Overload
25	WP4357245 Whirlpool Refrigerator Exchanger
26	Pan, Compressor Mounting
27	Thermostat, Clip
29	WP3400094 Whirlpool Screw
30	WP3-24838-048 Whirlpool Refrigerator Screw
31	WPW10662129 Whirlpool Refrigerator Run Capacitor
32	Grommet
33	Plate, Evaporator Mount
34	Bracket
35	WP489478 Whirlpool Refrigerator Screw
36	Screw
37	4357128 Whirlpool Refrigerator Motor Bracket
