EV200NXGW01 03 – DOOR

EV200NXGW01 03 – DOOR

Written by

in

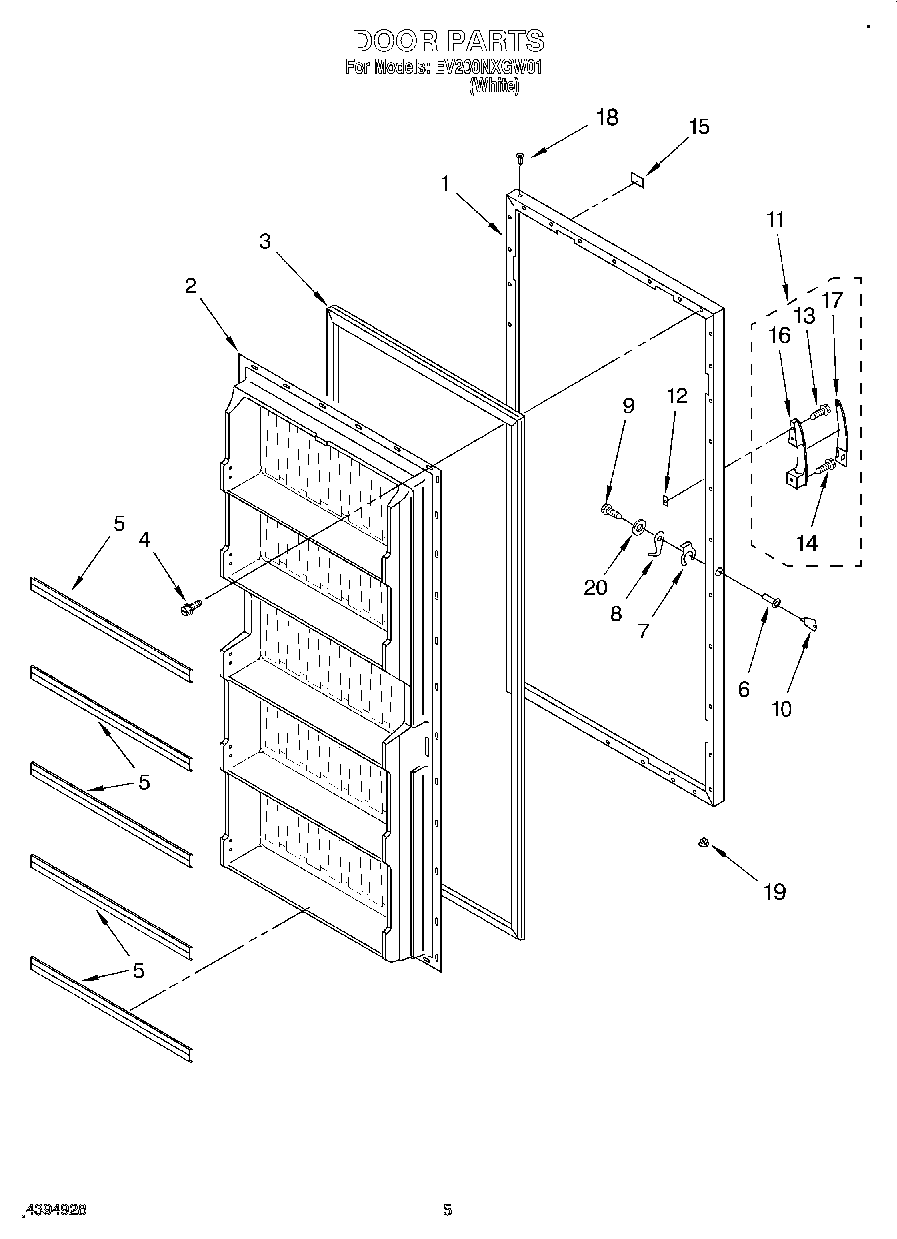

EV200NXGW01 03 – DOOR

Products

PositionProduct
1Exterior Door (White (Includes Insulation))
2Interior Panel
3WP4-81049-001 Whirlpool Refrigerator Door Gasket
4WP489478 Whirlpool Refrigerator Screw
5Door Shelf Trim (4)
64357145 Whirlpool Refrigerator Door Lock
7Spring Clip
8Lock, Bolt
10WP4356840 Whirlpool Refrigerator Door Key
11Handle Assembly (Includes Items 11, 12, 13 & 14)
12Anchor, Screw
14WP3-24004-109 Whirlpool Refrigerator Screw
15Nameplate
16Handle
17Insert, Handle (White)
184390731 Whirlpool Refrigerator Hinge Bushing
193-24898-007 Whirlpool Refrigerator Vent Plug
20Washer
