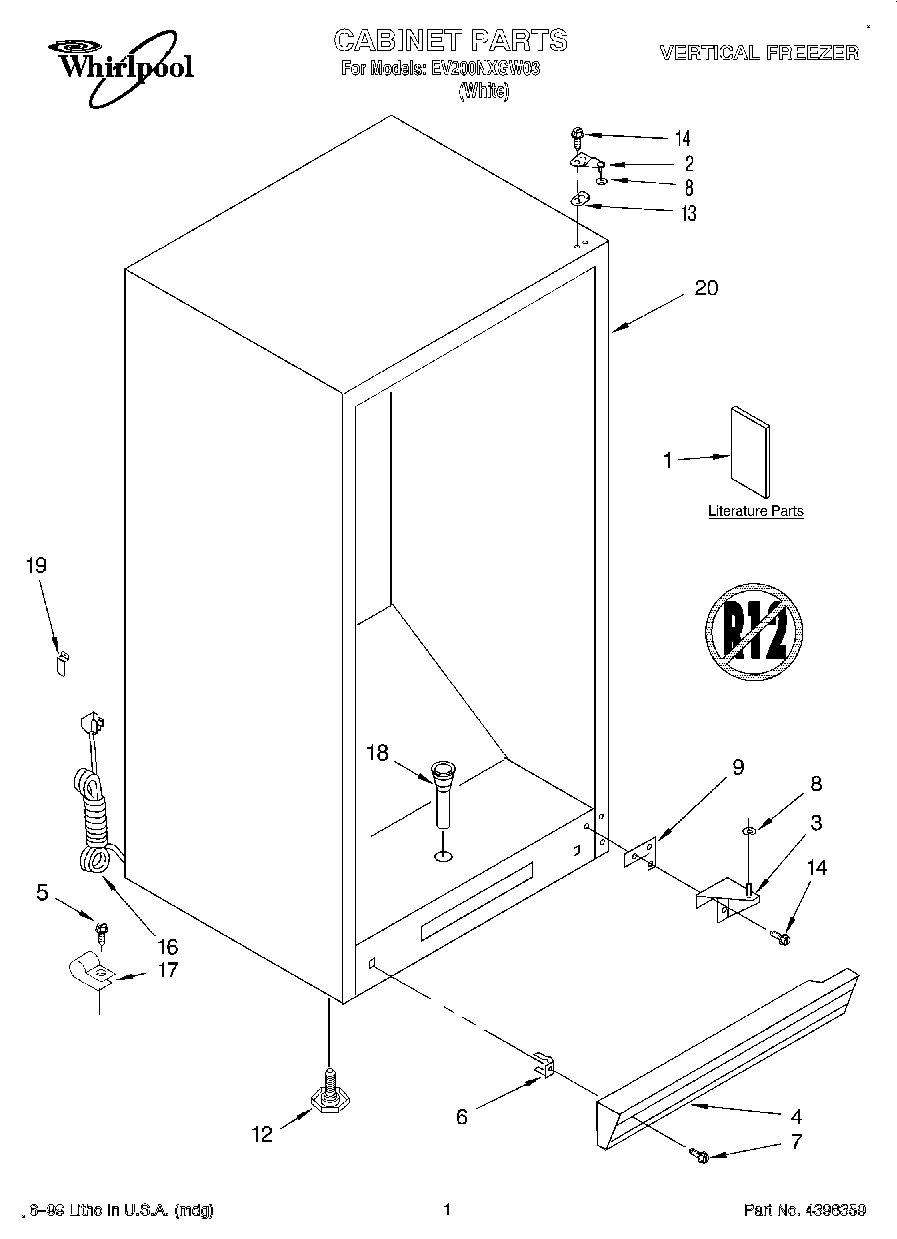

EV200NXGW03 01 – CABINET, LIT/OPTIONAL

EV200NXGW03 01 – CABINET, LIT/OPTIONAL

Written by

in

EV200NXGW03 01 – CABINET, LIT/OPTIONAL

Products

PositionProduct
1Energy Label
1Literature Parts (Owner`s Manual)
2Top, Hinge
3Bottom Hinge
4WP4-60461-006 Whirlpool Refrigerator Grille
5Screw
61-80247-101 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8W10851331 Whirlpool Refrigerator Washer
9Shim, Bottom
12W11117769 Whirlpool Refrigerator Leveler
134390489 Whirlpool Refrigerator Shim
14WP8204624 Whirlpool Bolt
16Power Cord
173-25095-011 Whirlpool Tube Clamp
18Drain Hose
19Clip
20350930 Whirlpool White Spray Paint
20350956 Whirlpool Spray Assembly
2072017 Whirlpool Appliance Touch-Up Paint White
20799344 Whirlpool Refrigerator Paint
20WP72107 Whirlpool Touchup
20Almond (Uncut)
20212643 Whirlpool Refrigerator Permagum Sealer
20876370 Whirlpool Refrigerator Insulation
20WP503695 Whirlpool Refrigerator Sealer
20WP505587 Whirlpool Refrigerator Sealer
20TAPE, VINYL (3/4 X 108“)
20Cabinet (Not A Serviceable Part)
