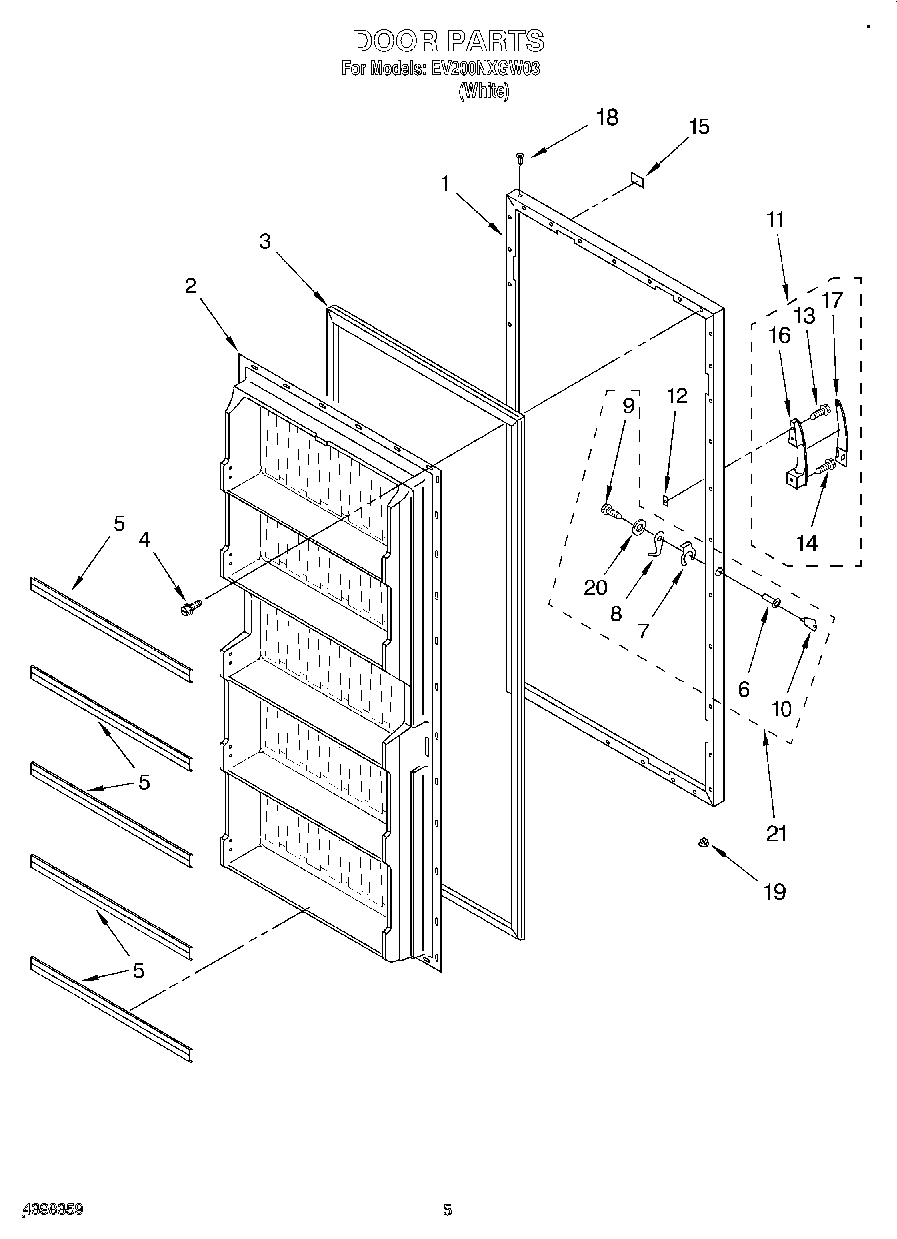

EV200NXGW03 03 – DOOR

Products

PositionProduct
1Exterior Door (White (Includes Insulation))
2Interior Panel
3WP4-81049-001 Whirlpool Refrigerator Door Gasket
44390598 Whirlpool Refrigerator Screw
5Trim Shelf
64357145 Whirlpool Refrigerator Door Lock
7Spring Clip
8HOOK BOLT, LOCK
9WP489478 Whirlpool Refrigerator Screw
10WP4356840 Whirlpool Refrigerator Door Key
11Handle Assembly (Includes Items 11, 12, 13 & 14)
12Anchor, Screw
13Screw
14WP3-24004-109 Whirlpool Refrigerator Screw
15Nameplate
16Handle
17Insert, Handle (White)
184390731 Whirlpool Refrigerator Hinge Bushing
193-24898-007 Whirlpool Refrigerator Vent Plug
20Washer
