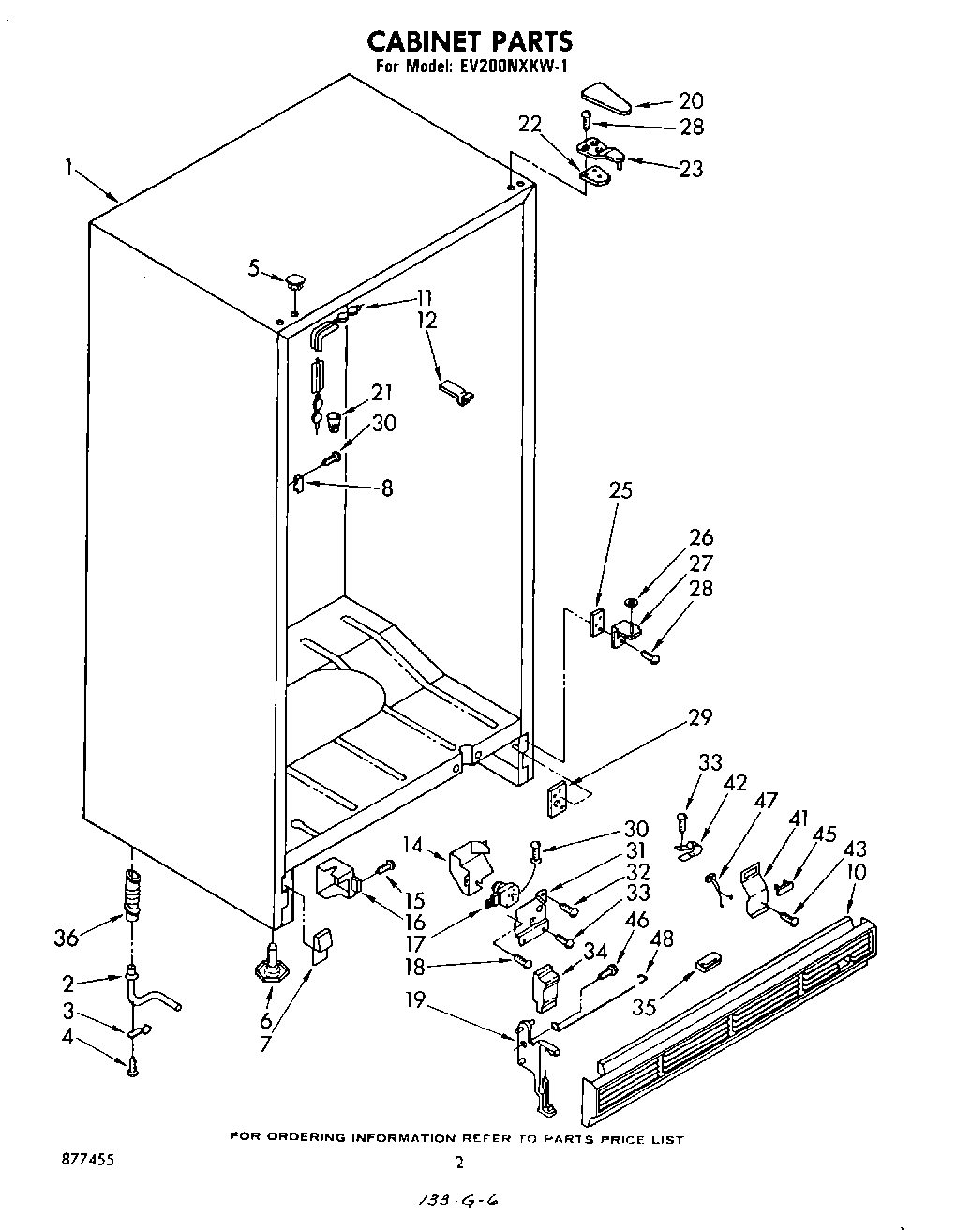

EV200NXKW1 02 – CABINET

Written by

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Extension, Drain Fitting
3	Cup, Drain Extension
4	Screw, 8-15 x 3/8
5	Hole Plug (New Avocado)
5	Hole Plug (Coffee)
5	Hole Plug (2) (Golden Harvest)
5	Hole Plug (2) (Almond)
5	Hole Plug (2) (White)
6	Leveler (2)
7	WPL 989928
7	WPL 989930
7	WPL 989929
7	Corner, Filler (
7	WPL 989931
8	Bracket, Strike
10	Grille, Exterior (New Avocado)
10	Grille, Exterior (White)
10	Grille, Exterior (Coffee)
10	Grille, Exterior (New Gold)
10	Grille, Exterior (Almond)
11	Heater, Stile
12	WPL 935663
14	Guard, Timer
15	WP488729 Whirlpool Refrigerator Door Screw
16	WPL 549947
17	Defrost Timer, 8 Hour
18	WP965173 Whirlpool Dishwasher Screw
19	WPL 844614
20	Hinge, Cover (Coffee)
20	1119787 Whirlpool Refrigerator Hinge Cover
20	Hinge Cover (Golden Harvest)
20	Hinge Cover (New Avocado)
21	Conector, Wire
22	WPL 836151
23	Hinge & Shim (Top)
25	Shim, Bottom Hinge
26	WP487802 Whirlpool Refrigerator Washer
27	Hinge (Bottom)
28	WP999367 Whirlpool Refrigerator Screw
28	Screw (Repair)
29	Tap Plate
30	WP489128 Whirlpool Refrigerator Screw
31	Plate, Timer
32	Screw, 6-20 x 3/8
33	Screw, 8 x 3/8
34	WPL 836372
35	Bumper, Grille
36	Drain Fitting
41	Bracket, Pilot Light
42	Cleat, Cord
43	Screw, 8-32 x 3/8
45	Light, Pilot
46	W11624204 Whirlpool Screw
47	WPL 549538
48	Guard, Fan
