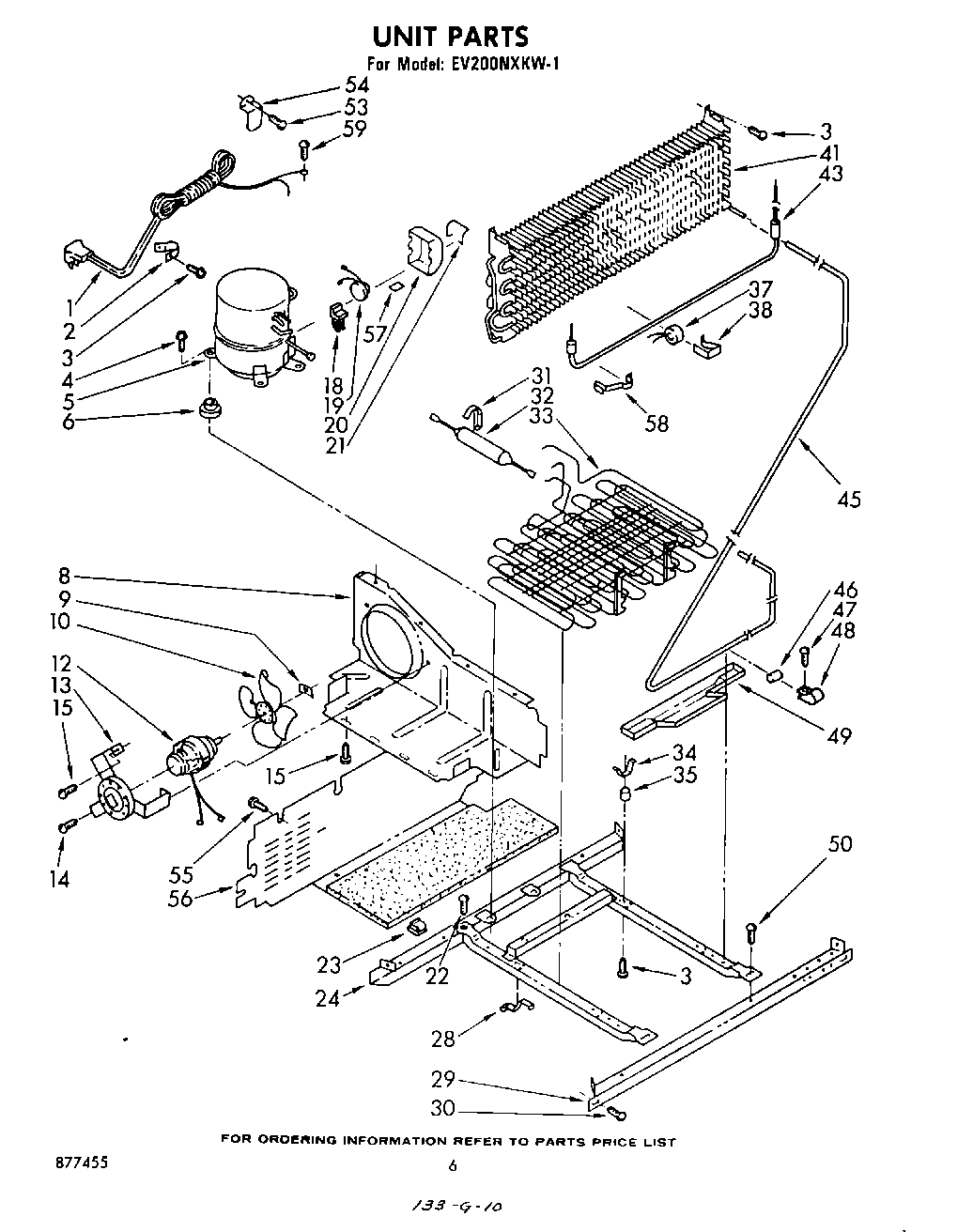

EV200NXKW1 04 – UNIT

Products

Position	Product
1	Cord, Service
2	549193 Whirlpool Refrigerator Power Clamp
3	W11624204 Whirlpool Screw
4	Screw, 1/4-28 x 1“ (4)
5	Compressor
6	Grommet (4)
8	Baffle
9	WP486692 Whirlpool Refrigerator Nut
10	Fan, Blade
12	833697 Whirlpool Condenser Fan Motor
13	Bracket, Motor
14	Screw, 8-36 x 3/8 (3)
15	Screw, 8 x 3/8
18	Relay
19	Overload
20	Case, Relay
21	Spring
22	303776 Whirlpool Dishwasher Screw
23	Clip, Wire (2)
24	Frame
28	Clip (2)
29	Rail, Front
30	489340 Whirlpool Refrigerator Screw
31	Clamp
32	W10843121 Whirlpool Refrigerator Tube
33	Condenser & Precooler
34	Clamp (4)
35	Grommet (4)
37	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38	Clamp
41	Evaporator
43	Heater, Defrost
45	Exchanger, Heat
46	Dampener (2)
47	WPW10141625 Whirlpool Refrigerator Screw Assembly
48	Clamp Tube
49	Pan, Drip
50	Screw, 1/4-28 x 1/2 (2)
53	Screw
54	Clip, Cord Plug
56	WPL 850457
57	Bumper
58	Clip, Heater
59	Screw, 8-32 x 3/8
59	978027 Whirlpool Refrigerator Primary Valve
59	VALVE, ACCESS (1/2“)
59	WP978025 Whirlpool Refrigerator Valve
59	978030 Whirlpool Refrigerator Valve
59	978026 Whirlpool Refrigerator Primary Valve
59	VALVE, ACCESS (5/8“)
