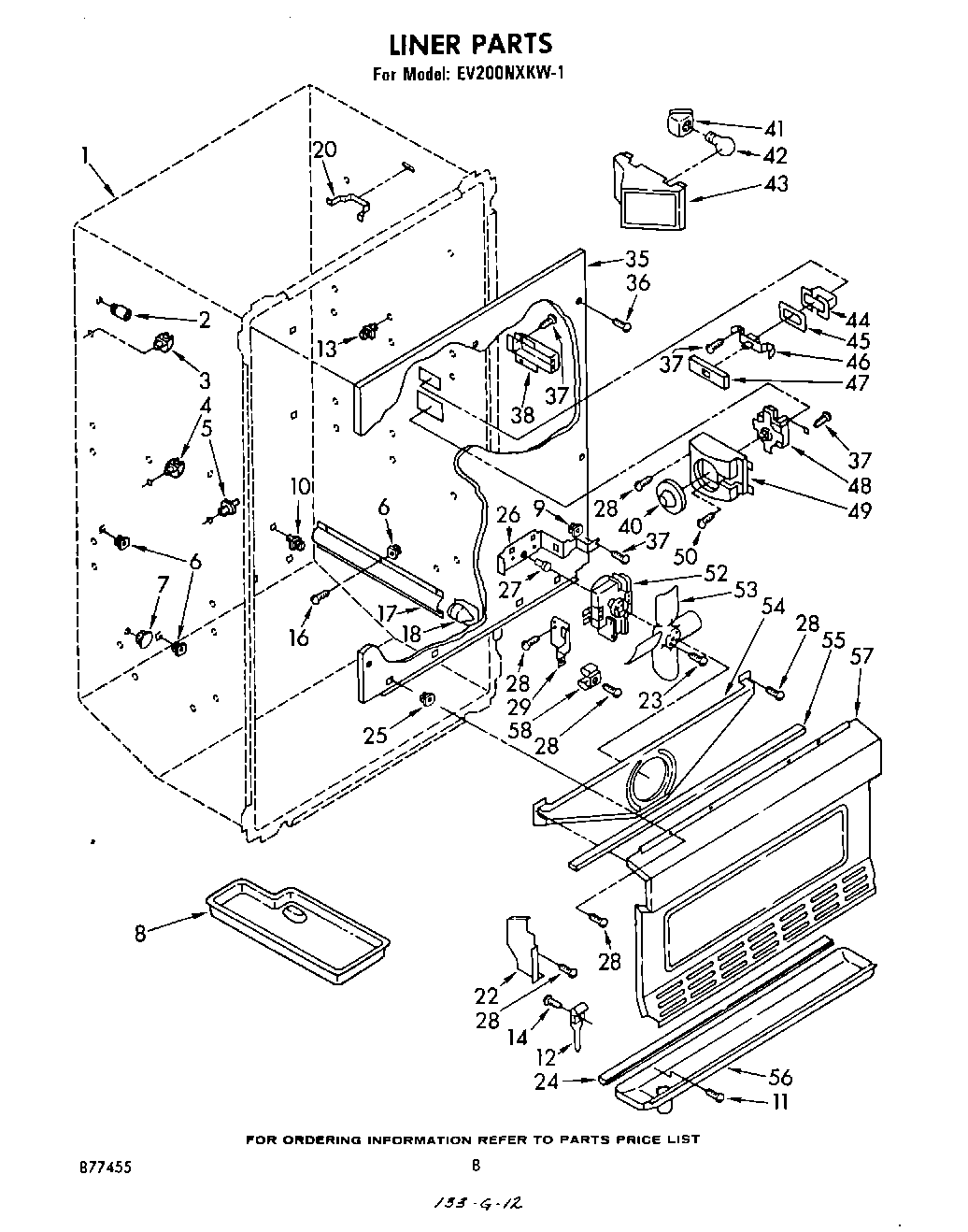

EV200NXKW1 05 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Spacer, Evaporator Mounting (9)
3	Shelf Stud, Saddle
3	Shelf Stud Saddle (R.S.)
4	Shelf Stud
5	Shelf, Stud (2)
6	Grommet
7	Hole, Plug
8	WPL 842041
9	Screw Grommet
10	Stud, Hook (2)
11	Screw, 8-15 x 1/2 (4)
12	Heat Prove
13	Stud, Hook (2)
14	WP488729 Whirlpool Refrigerator Door Screw
17	Cover, Tube
18	Cover, Tub Entry
20	Speed Clip, Light Lens (3)
22	Baffle, Evaporator (2)
23	WP487887 Whirlpool Refrigerator Screw
24	Gasket, Drain Pan
25	Screw Grommet
26	Bracket, Fan Mounting (Single)
27	Grommet (3)
28	W11624204 Whirlpool Screw
29	Fan, Bracket Double
35	Duct, Air
36	Screw, 8 x 1-1/8Z
37	WP489128 Whirlpool Refrigerator Screw
38	Cover, Insulation
40	Knob, Thermostat
41	4387478 Whirlpool Refrigerator Light Socket
42	RANGE ONLY 40W 120V APPL BULB
43	Shield, Light (Freezer Compartment)
44	Container, Switch
45	Gasket, Container
46	Bracket & Switch Assembly
47	Escutcheon, Power Saver
48	4389248 Whirlpool Refrigerator Thermostat
49	Escutcheon, Thermostat
50	WP965173 Whirlpool Dishwasher Screw
52	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
53	Blade, Fan
54	Cover, Fan Orifice
55	Gasket
56	Pan, Drain
57	Cover, Evaporator
58	Expansion Clip
