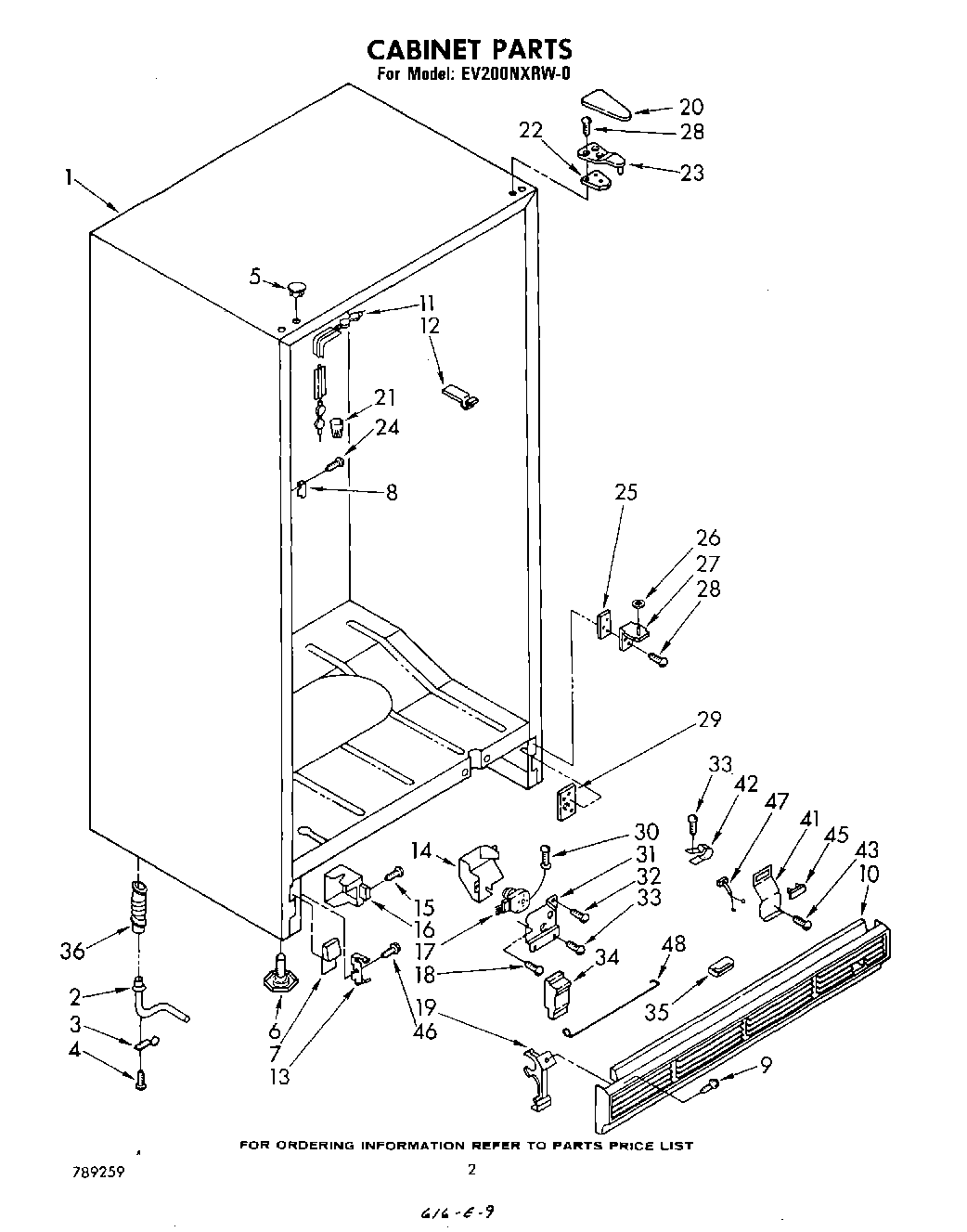

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Extension, Drain Fitting |
| 3 | Cup, Drain Extension |
| 4 | Screw, 8-15 x 3/8 |
| 5 | Hole Plug (2) (Almond) |
| 5 | Hole Plug (2) (White) |
| 6 | Leveler (2) |
| 7 | Corner, Filler ( |
| 7 | WPL 989931 |
| 8 | Bracket, Strike |
| 9 | WPL 489085 |
| 10 | Grille, Exterior (White) |
| 10 | Grille, Exterior (Almond) |
| 11 | Heater, Stile |
| 12 | WPL 935663 |
| 13 | WPL 989068 |
| 14 | Guard, Timer |
| 15 | WP488729 Whirlpool Refrigerator Door Screw |
| 16 | WPL 549947 |
| 17 | Defrost Timer |
| 18 | WP965173 Whirlpool Dishwasher Screw |
| 19 | WP944224 Whirlpool Refrigerator Support |
| 20 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 21 | Conector, Wire |
| 22 | WPL 836151 |
| 23 | Hinge & Shim (Top) |
| 24 | WP489128 Whirlpool Refrigerator Screw |
| 25 | Shim, Bottom Hinge |
| 26 | WP487802 Whirlpool Refrigerator Washer |
| 27 | Hinge (Bottom) |
| 28 | WP999367 Whirlpool Refrigerator Screw |
| 28 | Screw (Repair) |
| 29 | Tap Plate |
| 31 | Plate, Timer |
| 32 | Screw, 6-20 x 3/8 |
| 33 | Screw, 8 x 3/8 |
| 34 | WPL 836372 |
| 35 | Bumper, Grille |
| 36 | Drain Fitting |
| 41 | Bracket, Pilot Light |
| 42 | Cleat, Cord |
| 43 | Screw, 8-32 x 3/8 |
| 45 | Light, Pilot |
| 46 | W11624204 Whirlpool Screw |
| 47 | WPL 549538 |
| 48 | Guard, Fan |
