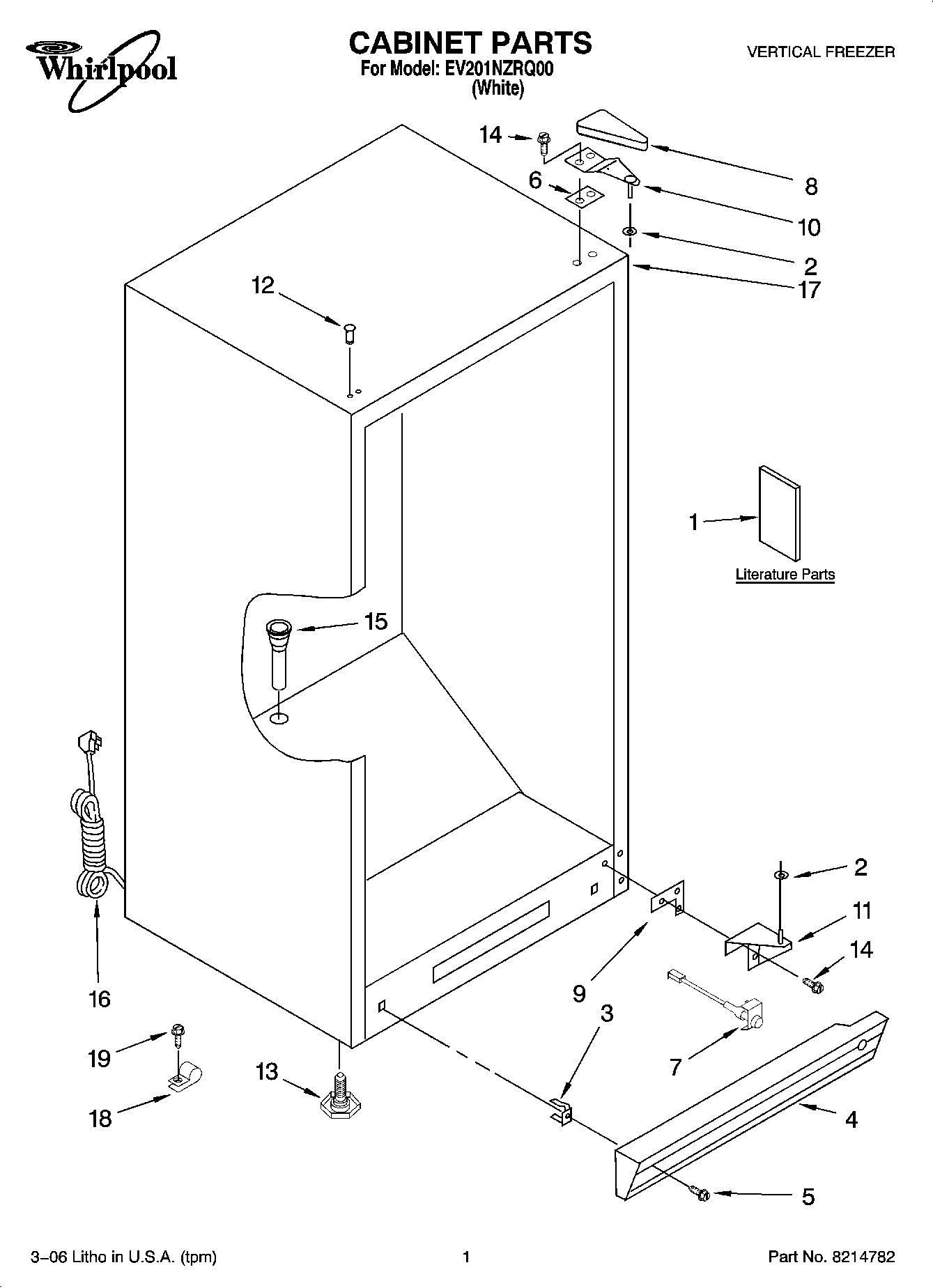

EV201NZRQ00 01 – CABINET PARTS

EV201NZRQ00 01 – CABINET PARTS

Written by

in

EV201NZRQ00 01 – CABINET PARTS

Products

PositionProduct
1Energy Label/Tag
1Owners Manual
2W10851331 Whirlpool Refrigerator Washer
31-80247-101 Whirlpool Refrigerator Clip
4WP4-60461-002 Whirlpool Refrigerator Grille
5WP489478 Whirlpool Refrigerator Screw
73-82130-001 Whirlpool Refrigerator Warning Light
83-80838-003 Whirlpool Refrigerator Cover
94390489 Whirlpool Refrigerator Shim
102-81016-105 Whirlpool Refrigerator Door Hinge
118210238 Whirlpool Refrigerator Door Hinge
12WP2189000 Whirlpool Refrigerator Handle Plug
13W11117769 Whirlpool Refrigerator Leveler
14WP8204624 Whirlpool Bolt
15Drain Hose
16Cord, Power
17Cabinet, (Not A Serviceable Part)
18488946 Whirlpool Air Conditioner Clamp
193-24004-049 Whirlpool Screw
