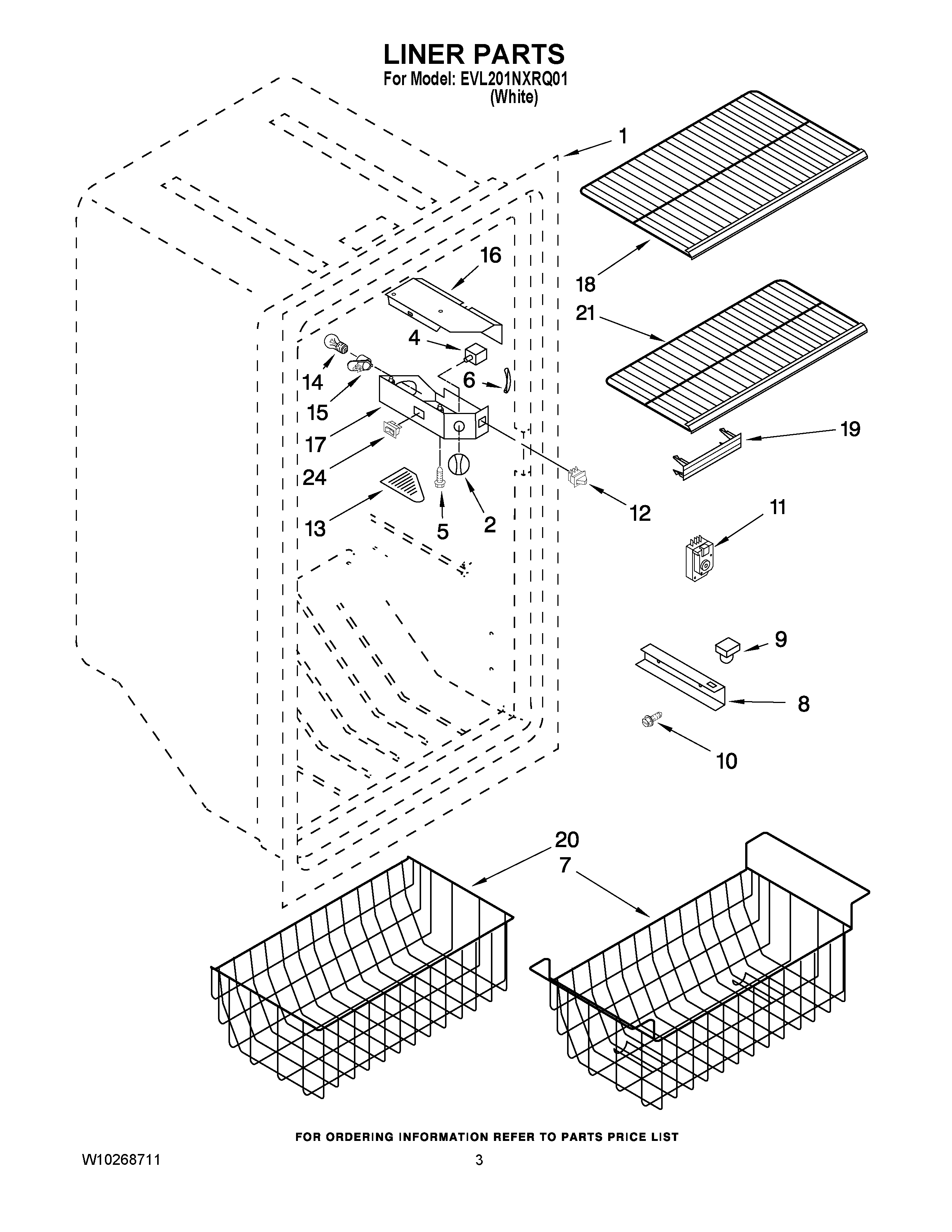

EVL201NXRQ01 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	3-82390-001 Whirlpool Refrigerator Thermostat Knob
4	WP4-83053-002 Whirlpool Refrigerator Thermostat
5	WPW10068250 Whirlpool Dishwasher Screw
6	WP2196003 Whirlpool Refrigerator Bar Riser
7	Basket, Wire
8	4-60222-002 Whirlpool Refrigerator Rail
8	Rail, Basket (Left Side)
9	Stop, Basket
10	WP3-24004-109 Whirlpool Refrigerator Screw
10	SCREW
11	WP3-81329 Whirlpool Refrigerator Defrost Timer
12	W11384469 Whirlpool Door Switch
13	3-82391-001 Whirlpool Refrigerator Lens
14	RANGE ONLY 40W 120V APPL BULB
15	WP3-82393-001 Whirlpool Refrigerator Socket
16	Shield, Light
17	Box, Control
18	Shelf, Upper Wire
19	WP3-80414-103 Whirlpool Refrigerator Vent Plug
20	Basket, Wire
21	Shelf, Lower Wire
24	Switch, Alarm (Illuminated)
