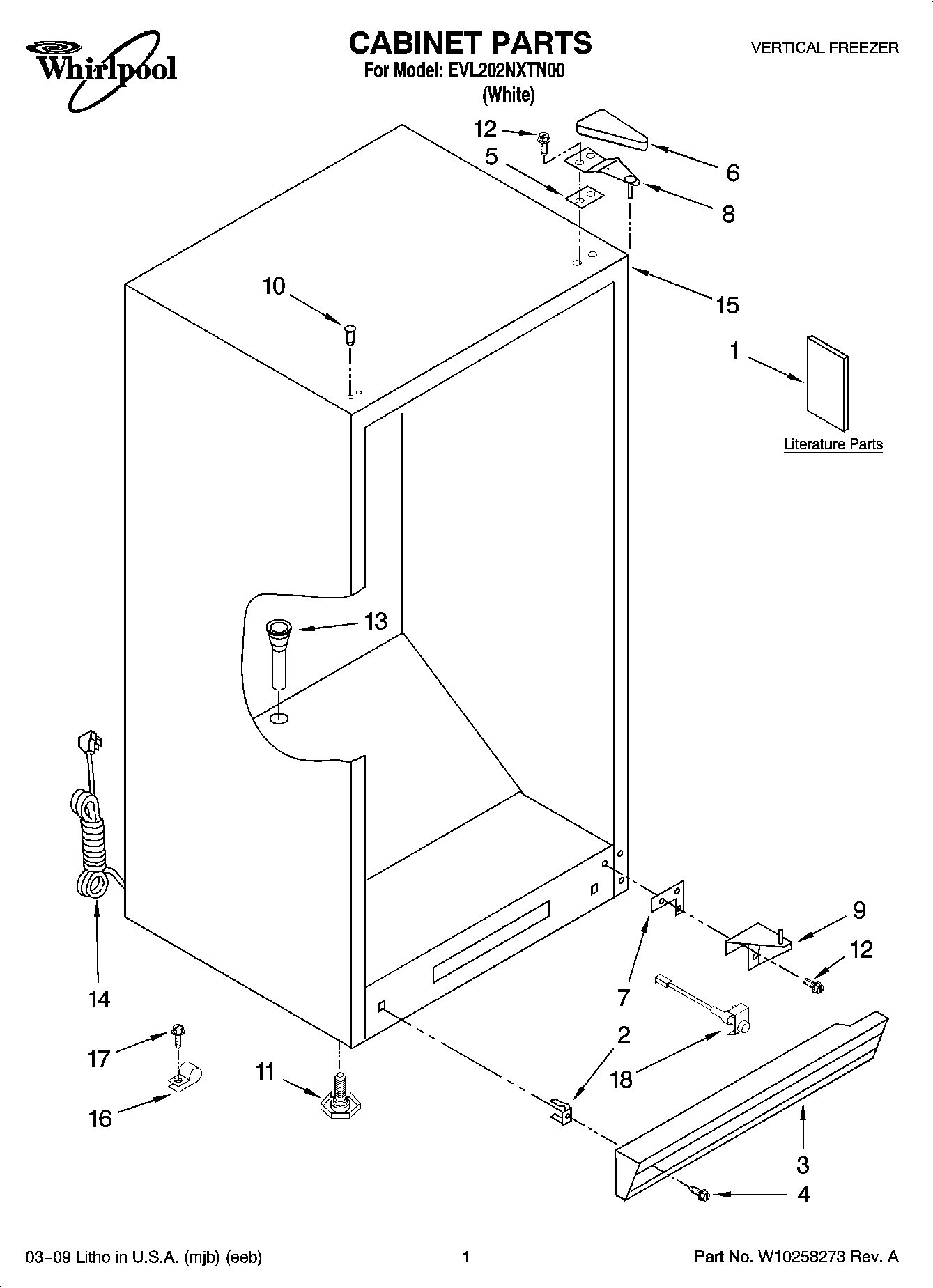

EVL202NXTN00 01 – CABINET PARTS

Products

PositionProduct
1Energy Label/Tag
1Owners Manual
21-80247-101 Whirlpool Refrigerator Clip
3GRILLE
4WP489478 Whirlpool Refrigerator Screw
63-80838-007 Whirlpool Refrigerator Cover
74390489 Whirlpool Refrigerator Shim
8W10260541 Whirlpool Refrigerator Door Hinge
98210235 Whirlpool Refrigerator Door Hinge
10WP2189000 Whirlpool Refrigerator Handle Plug
11WP3-82710-001 Whirlpool Refrigerator Leveler
12Screw
13Grommet, Drain
14Cord, Power (W/Wiring Harness)
15Cabinet, (Not A Serviceable Part)
16488946 Whirlpool Air Conditioner Clamp
173-24004-049 Whirlpool Screw
183-82130-001 Whirlpool Refrigerator Warning Light
