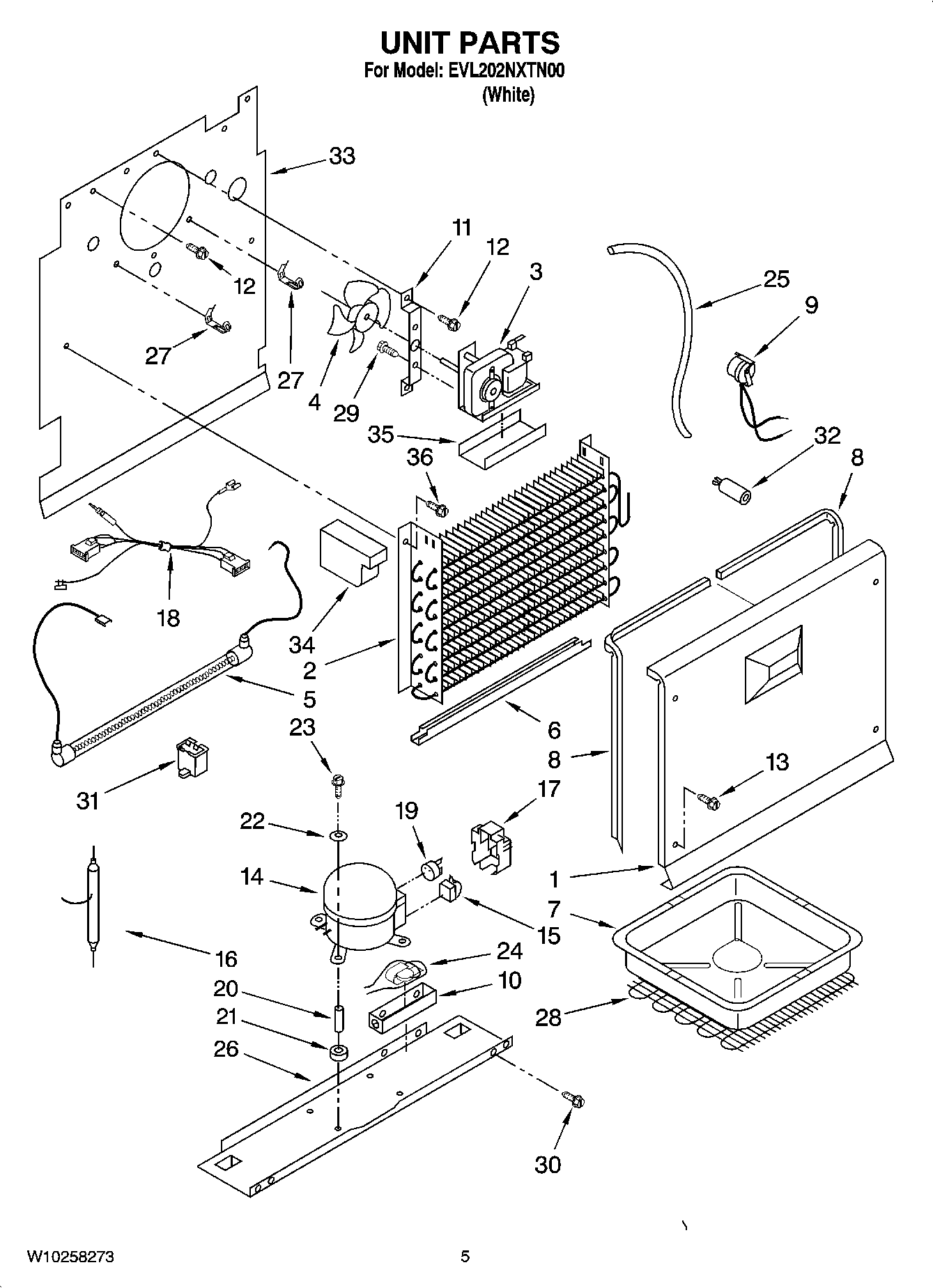

EVL202NXTN00 03 – UNIT PARTS

Products

Position	Product
1	Cover, Evaporator
2	WP4-81546 Whirlpool Refrigerator Evaporator
3	MOTOR-EVAP
4	BLADE-FAN
5	WP3-80405-003 Whirlpool Refrigerator Heater
6	Shield Heater
7	WP4390675 Whirlpool Refrigerator Drip Pan
8	4390663 Whirlpool Refrigerator Gasket
8	4390664 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10	Box, Control
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	W10309994 Whirlpool Refrigerator Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	4356777 Whirlpool Term Cover
18	4-81785-001 Whirlpool Refrigerator Wire Harness
19	2-34286-021 Whirlpool Refrigerator Overload Relay
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	8210220 Whirlpool Bolt
24	Buzzer, Alarm
25	Exchanger, Heat
26	Pan, Compressor
27	Thermostat, Clip
28	W10451951 Whirlpool Refrigerator Condenser
29	WP3400094 Whirlpool Screw
30	WP3-24838-048 Whirlpool Refrigerator Screw
31	3-35956-013 Whirlpool Refrigerator Capacitor
32	Grommet
33	Plate, Evaporator Mount
34	1-80252-101 Whirlpool Refrigerator Evaporator Block
35	4357128 Whirlpool Refrigerator Motor Bracket
36	WP489491 Whirlpool Refrigerator Screw
36	REFRIGERANT CHARGE 6.2 oz. (R-134A)
