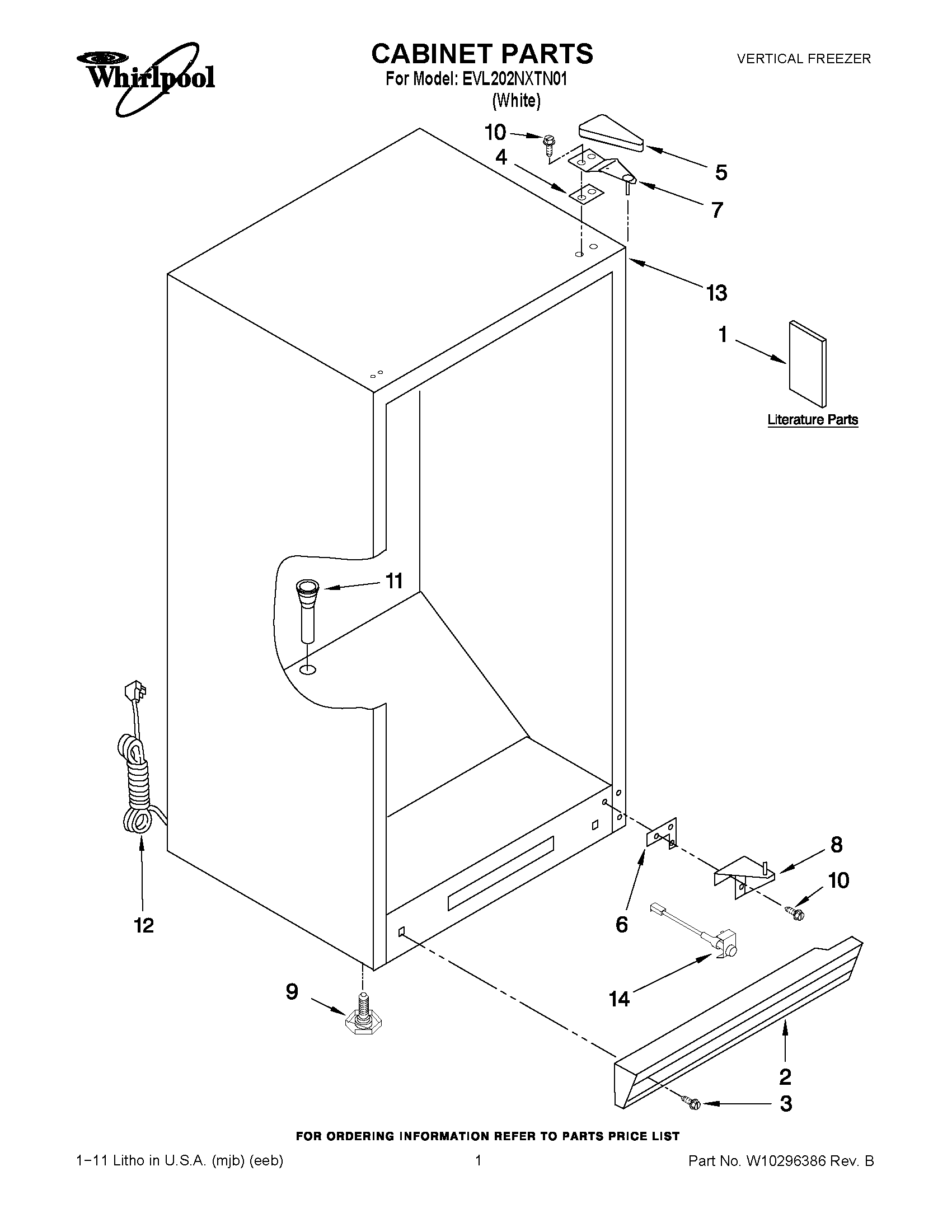

EVL202NXTN01 01 – CABINET PARTS

EVL202NXTN01 01 – CABINET PARTS

Written by

in

EVL202NXTN01 01 – CABINET PARTS

Products

PositionProduct
1Energy Label/Tag
1Owners Manual
2GRILLE
3WP489478 Whirlpool Refrigerator Screw
53-80838-007 Whirlpool Refrigerator Cover
64390489 Whirlpool Refrigerator Shim
7W10260541 Whirlpool Refrigerator Door Hinge
8BOTTOM HINGE (BLACK)
9WP3-82710-001 Whirlpool Refrigerator Leveler
10Screw
11Grommet, Drain
12Cord, Power (W/Wiring Harness)
13CABINET (NOT A SERVICEABLE PART)
143-82130-001 Whirlpool Refrigerator Warning Light
