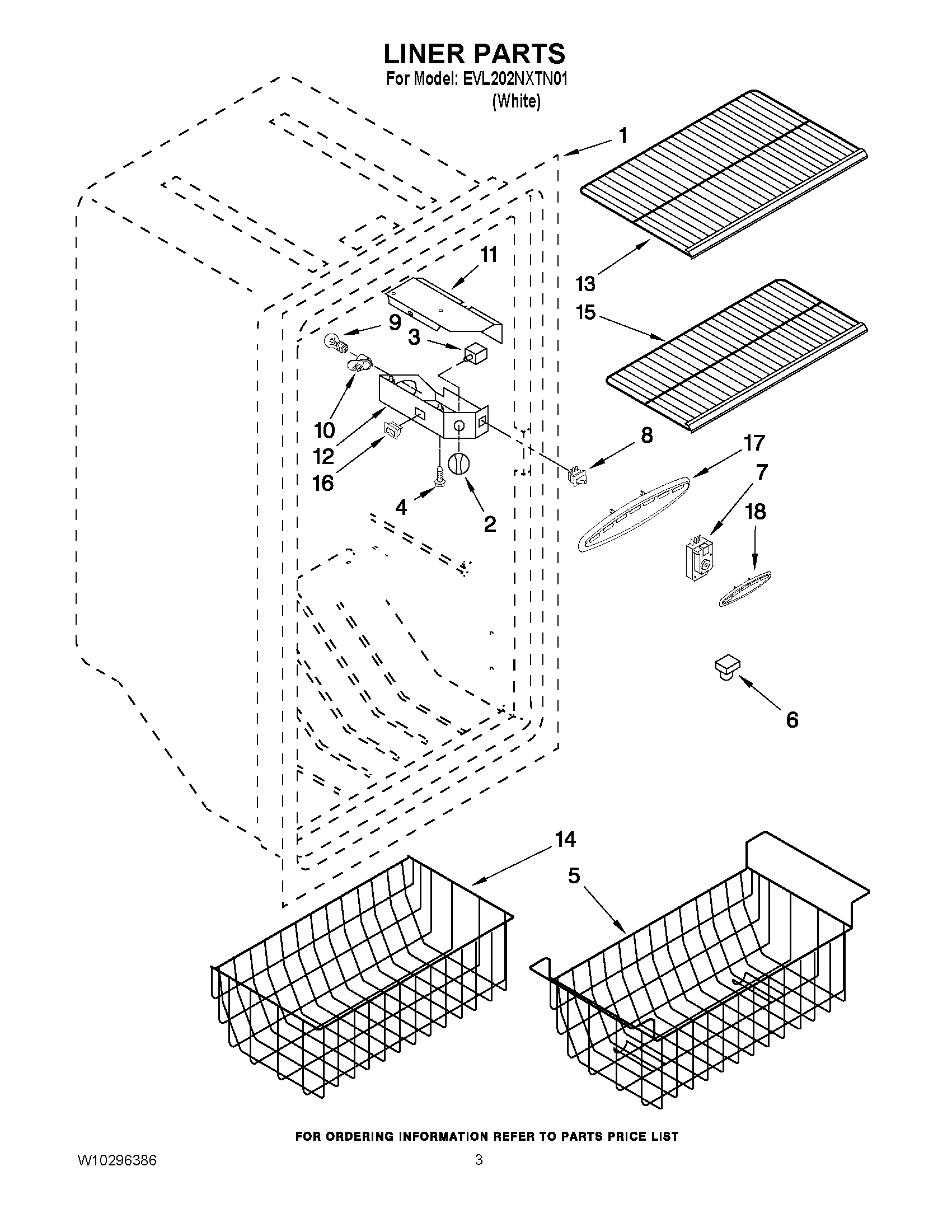

EVL202NXTN01 02 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	3-82390-001 Whirlpool Refrigerator Thermostat Knob
3	WP4-83053-002 Whirlpool Refrigerator Thermostat
4	WPW10068250 Whirlpool Dishwasher Screw
5	Basket, Wire
6	Stop, Basket
7	WP3-81329 Whirlpool Refrigerator Defrost Timer
8	W11384469 Whirlpool Door Switch
9	RANGE ONLY 40W 120V APPL BULB
10	WP3-82393-001 Whirlpool Refrigerator Socket
11	Shield, Light
12	3-82391-001 Whirlpool Refrigerator Lens
13	WP4-82634-001 Whirlpool Refrigerator Wire Shelf
14	BASKET, WIRE
15	WP4-82977-001 Whirlpool Refrigerator Wire Shelf
16	3-82728-001 Whirlpool Refrigerator Alarm Freezer
17	4-82556-002 Whirlpool Refrigerator Diffuser
18	4-82573-002 Whirlpool Diffuser
