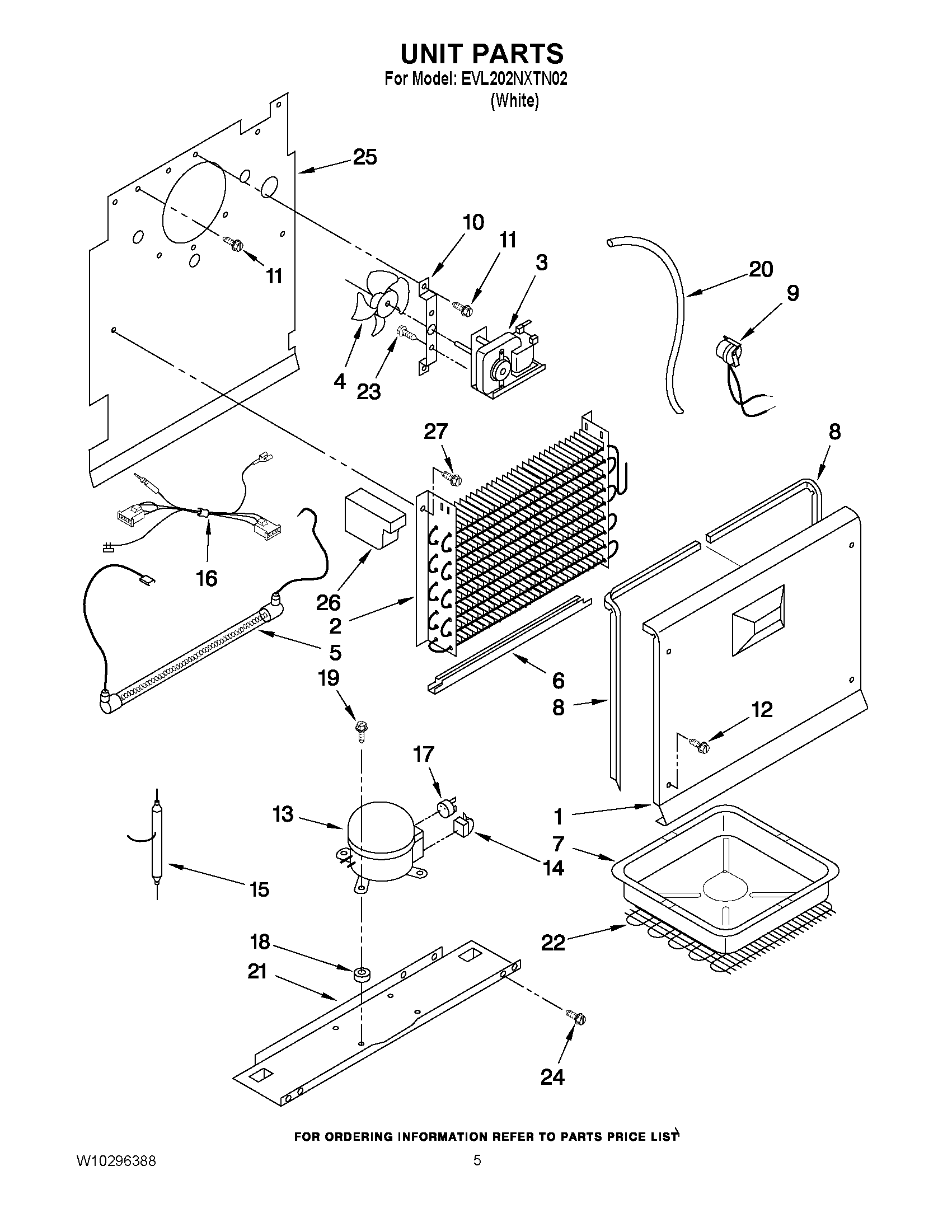

EVL202NXTN02 03 – UNIT PARTS
Written by
in
EVL202NXTN02 03 – UNIT PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
1
Cover, Evaporator
2
WP4-81546 Whirlpool Refrigerator Evaporator
3
MOTOR-EVAP
4
BLADE-FAN
5
WP3-80405-003 Whirlpool Refrigerator Heater
6
Shield, Heater
7
WP4390675 Whirlpool Refrigerator Drip Pan
8
4390663 Whirlpool Refrigerator Gasket
8
4390664 Whirlpool Refrigerator Gasket
9
WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10
2-80028-101 Whirlpool Refrigerator Motor Bracket
11
60001022 Whirlpool Oven Screw
12
WP3-24004-109 Whirlpool Refrigerator Screw
13
W10309994 Whirlpool Refrigerator Compressor
14
Relay
15
W10843121 Whirlpool Refrigerator Tube
16
4-81785-001 Whirlpool Refrigerator Wire Harness
17
WP2183456 Whirlpool Refrigerator Overload
18
Grommet, Mounting Compressor
19
8210220 Whirlpool Bolt
20
Exchanger, Heat
21
Pan, Compressor Mounting
22
W10451951 Whirlpool Refrigerator Condenser
23
WP3400094 Whirlpool Screw
24
WP3-24838-048 Whirlpool Refrigerator Screw
25
Plate, Evaporator Mount
26
1-80252-101 Whirlpool Refrigerator Evaporator Block
27
WP489491 Whirlpool Refrigerator Screw
←
