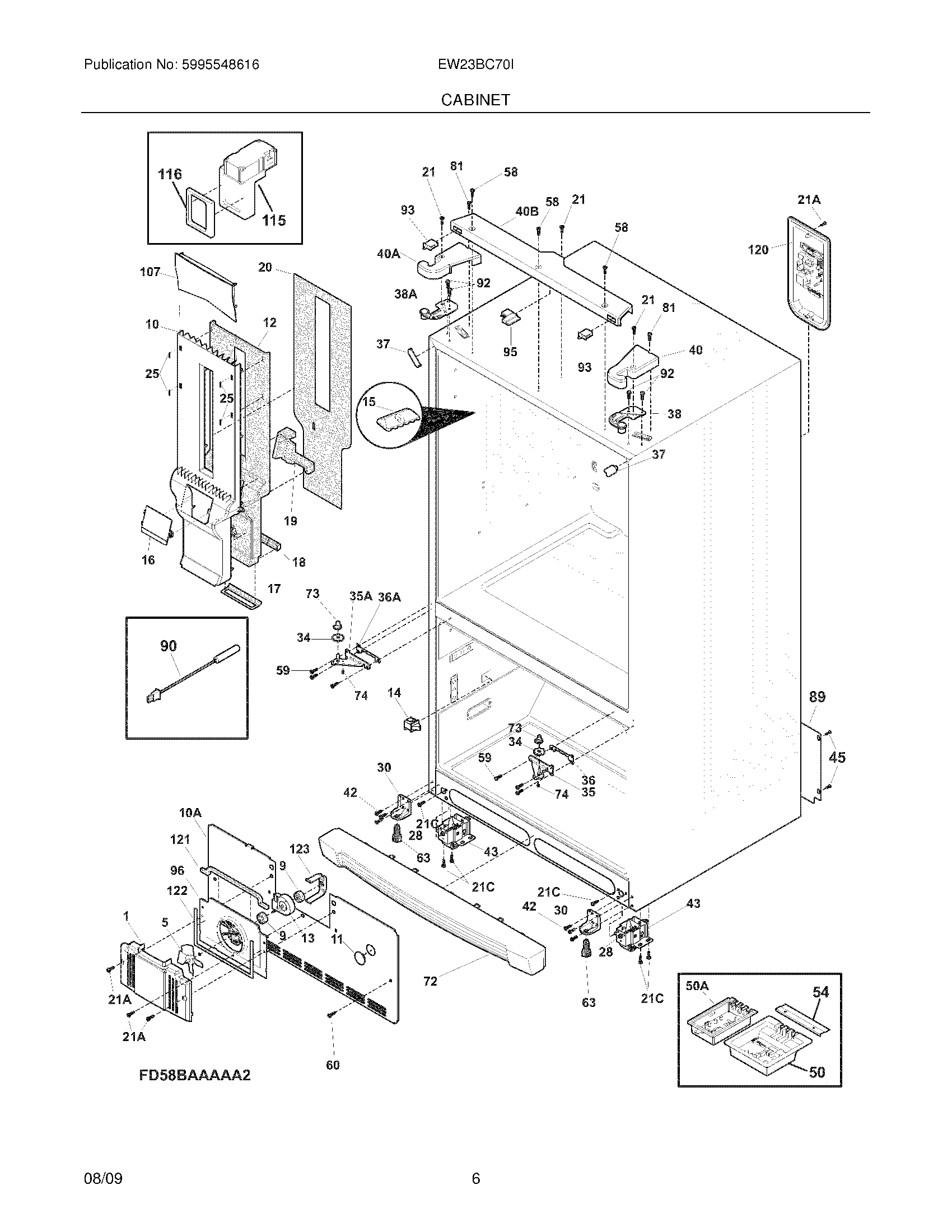

EW23BC70IS0 07 – CABINET

EW23BC70IS0 07 – CABINET

Written by

in

EW23BC70IS0 07 – CABINET

Products

Position	Product
NI	242006903 Frigidaire Refrigerator Air Duct
NI	215474201 Frigidaire Refrigerator Washer
NI	241953902 Frigidaire Refrigerator Screw
NI	242004802 Frigidaire Refrigerator Foam Strip
NI	WCI 7241859801
NI	241969001 Frigidaire Refrigerator Cap
1	241859701 Frigidaire Refrigerator Fan Cover
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
9	241518301 Frigidaire Refrigerator Bushing
10A	241860105 Frigidaire Refrigerator Gasket-Coil Cover
10A	WCI 7241860401
10A	241860104 Frigidaire Refrigerator Coil Cover Gasket
10	WCI 7241860001
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 7241859901
13	MOTOR,EVAPORATOR FAN
14	240505801 Frigidaire Light Switch
15	WCI 7241891101
16	WCI 7241860501
17	241928201 Frigidaire Refrigerator Air Duct Gasket
18	WCI 7241928101
19	241871901 Frigidaire Refrigerator Support-Eps Damper
20	WCI 7241922901
21	241732101 Frigidaire Refrigerator Screw
21A	5304453707 Frigidaire Oven Screw
21C	218252201 Frigidaire Refrigerator Screw
25	WCI 7241949501
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35	WCI 7241763001
35A	WCI 7241763002
36	241868201 Frigidaire Refrigerator Spacer
36A	241868202 Frigidaire Refrigerator Spacer
37	WCI 7240337612
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40B	WCI 7241850701
40B	241862405 Frigidaire Refrigerator Upper Hinge Cover
40	WCI 7241778001
40A	WCI 7241778002
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500305 Frigidaire Refrigerator Screw
50A	241891601 Frigidaire Refrigerator Power Board
50	5303918507 Frigidaire Refrigerator Switch Board
50A	241852501 Frigidaire Refrigerator Clip
54	241532401 Frigidaire Refrigerator Channel
58	WCI 7241853201
59	WCI 7240442708
60	5304455650 Frigidaire Refrigerator Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	241930301 Frigidaire Refrigerator Grille/Kickplate
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
74	218755401 Frigidaire Refrigerator Screw Set
81	134154100 Frigidaire Screw 10-32 x 0.375 Co
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	240597220 Frigidaire Sensor
92	241710601 Frigidaire Refrigerator Screw
93	241835505 Frigidaire Refrigerator Light Switch
95	241530501 Frigidaire Refrigerator Humidity Sensor
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
107	241963102 Frigidaire Refrigerator Duct-Air
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
120	WCI 7241956701
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
122	241860117 Frigidaire Gasket
123	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
