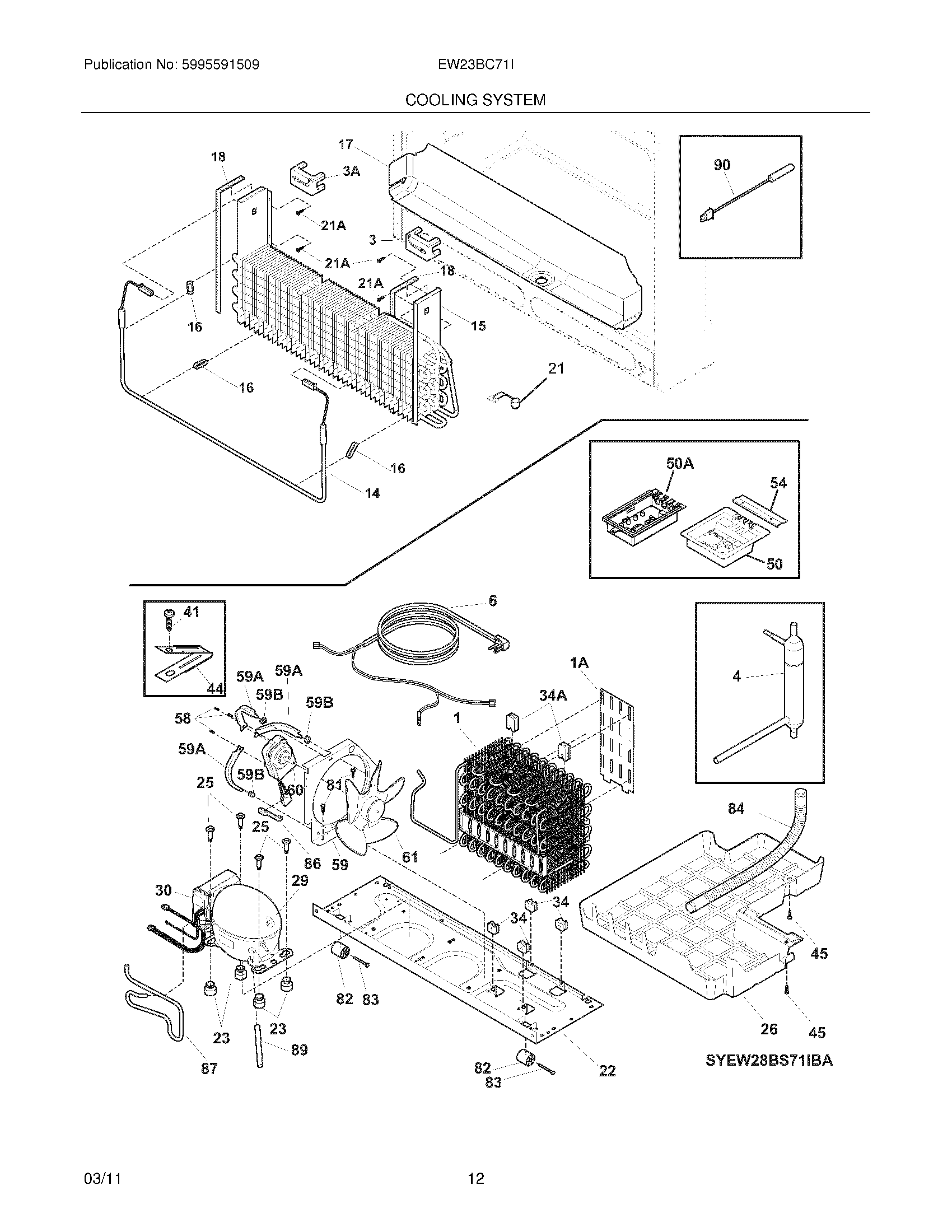

EW23BC71IW8 11 – SYSTEM

EW23BC71IW8 11 – SYSTEM

Written by

in

EW23BC71IW8 11 – SYSTEM

Products

Position	Product
NI	218252201 Frigidaire Refrigerator Screw
NI	5303918446 Frigidaire Refrigerator Heat Exchanger
NI	242119001 Frigidaire Refrigerator Wiring Harness
NI	242036801 Frigidaire Refrigerator Plastic Clip
NI	241842301 Frigidaire Refrigerator Thermistor Cap
NI	5303918445 Frigidaire Refrigerator Heat Exchanger
NI	3205266 Frigidaire Refrigerator Edge Protector
NI	241947701 Frigidaire Refrigerator Spacer
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	218515401 Frigidaire Refrigerator Clip
NI	WCI 242119101
NI	WCI 5303918428
NI	WCI 5303918416
NI	WCI 242135903
NI	WCI 241995001
NI	241510904 Frigidaire Refrigerator Dispenser Harness
NI	WCI 241920901
1A	241987301 Frigidaire Refrigerator Deflector-Air
1	241862903 Frigidaire Refrigerator Condenser
3	241838401 Frigidaire Refrigerator Block-Evaporator Coil
3A	241838402 Frigidaire Refrigerator Block-Evaporator Coil
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241516904 Frigidaire Refrigerator Service Cord
14	5303918410 Frigidaire Refrigerator Defrost Heater Kit
15	5303918551 Frigidaire Refrigerator Evaporator Kit
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241791201 Frigidaire Refrigerator Trough-Drain
18	241860101 Frigidaire Refrigerator Gasket
21	242046001 Frigidaire Refrigerator Defrost Thermostat
21A	218362501 Frigidaire Refrigerator Screw
22	241602112 Frigidaire Refrigerator Base Compressor
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 240491503
26	241920608 Frigidaire PAN-DEFROST
29	5304524549 Frigidaire Refrigerator Compressor with Inverter
30	241577505 Frigidaire Refrigerator Inverter
34A	241929902 Frigidaire Condenser Mounting Grommet
34	241929901 Frigidaire GROMMET-COND MTG
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
50	242115233 Frigidaire Refrigerator Main Power Board
50A	241891601 Frigidaire Refrigerator Power Board
50A	241852501 Frigidaire Refrigerator Clip
54	241532401 Frigidaire Refrigerator Channel
58	241953902 Frigidaire Refrigerator Screw
59B	WCI 240346601
59A	240346501 Frigidaire Refrigerator Support Bracket
59	241946105 Frigidaire Refrigerator Condenser Shroud
60	297279500 Frigidaire Refrigerator Condenser Fan Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
81	240359403 Frigidaire Refrigerator Fan Shroud Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	241830904 Frigidaire Refrigerator Drain Tube
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
87	WCI 241846302
89	WCI 215346900
90	240597220 Frigidaire Sensor
