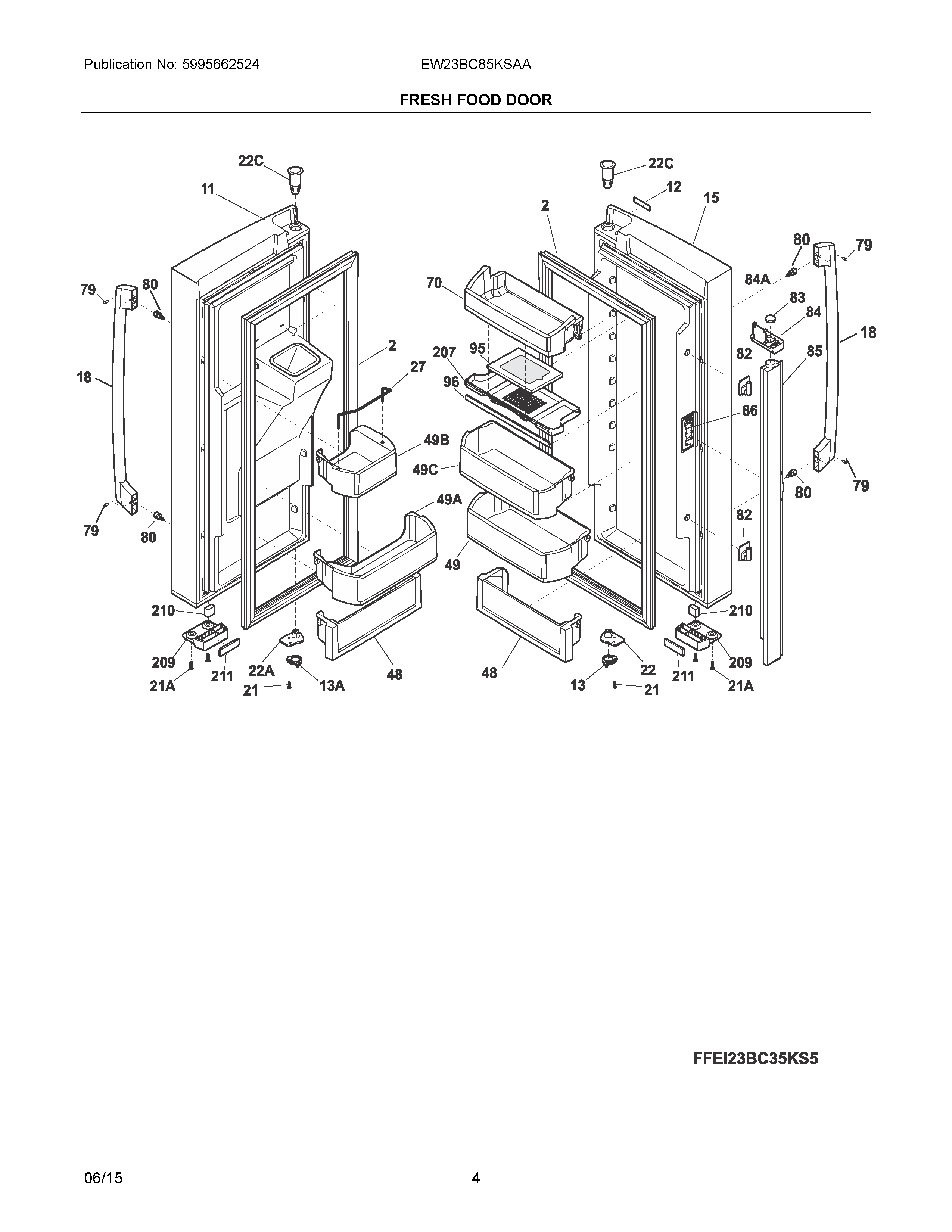

EW23BC85KSAA 03 – FRESH FOOD DOOR

EW23BC85KSAA 03 – FRESH FOOD DOOR

Written by

in

EW23BC85KSAA 03 – FRESH FOOD DOOR

Products

Position	Product
NI	242015001 Frigidaire Refrigerator Screw
NIC	241788402 Frigidaire Harness-WIRING
NIB	242068601 Frigidaire Refrigerator Bumper
NI	241806601 Frigidaire Refrigerator Water Connector
NIB	241701902 Frigidaire Refrigerator 3/32" Screwdriver
NIA	240451503 Frigidaire Refrigerator Screw
NI	WCI 241926002
NIA	5304467131 Frigidaire Refrigerator Wrench
2	GASKET-DR
11	WCI 241988086
12	241873301 Frigidaire Refrigerator Nameplate
13A	241868402 Frigidaire Refrigerator Door Stop
13	241868401 Frigidaire Refrigerator Door Stop
15	241988085 Frigidaire Refrigerator Ref Door DSP
18	241881309 Frigidaire Refrigerator Handle
21	242017501 Frigidaire Refrigerator Screw
21A	5304453707 Frigidaire Oven Screw
22A	242075602 Frigidaire Refrigerator Cam
22	CAM, UPPER HINGE, RH
22C	241760401 Frigidaire Refrigerator Bearing
27	241752702 Frigidaire Refrigerator Retainer
48	241804303 Frigidaire Refrigerator Door Bin
49B	241906302 Frigidaire Refrigerator Door Bin
49	241804006 Frigidaire Door Shelf Bin
49C	241896103 Frigidaire Refrigerator Door Bin
49A	BIN-DOOR, 2-LITER
70	242131801 Frigidaire Refrigerator Door Bin
79	218755401 Frigidaire Refrigerator Screw Set
80	218755504 Frigidaire Refrigerator Shoulder Screw
82	241779401 Frigidaire Refrigerator Flipper Hinge Mullion
83	241812202 Frigidaire Refrigerator Magnet
84A	242190501 Frigidaire Refrigerator Mullion Assembly
84	808274201 Frigidaire Door Guide Assembly
85	241778811 Frigidaire Refrigerator Flipper Mullion Assembly
86	241779802 Frigidaire Door Hinge Mullion Flipper
95	EAFCBF Frigidaire Refrigerator PureAdvantage Carbon Air Filter
96	242048001 Frigidaire Refrigerator Trim
207	242047901 Frigidaire Refrigerator Air Filter Housing
209	242291001 Frigidaire Refrigerator Housing
210	241779101 Frigidaire Refrigerator Magnet
211	241979601 Frigidaire Refrigerator Bumper
