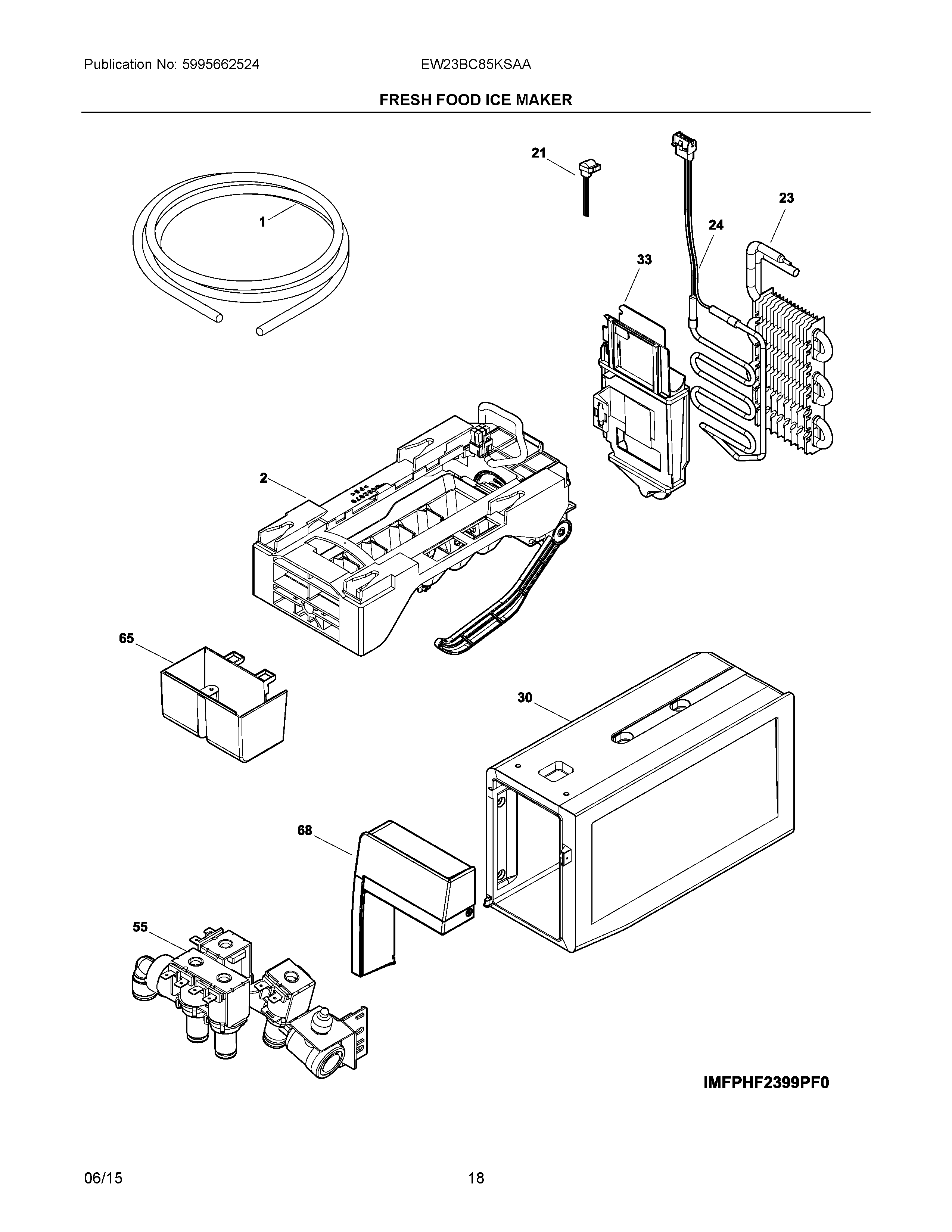

EW23BC85KSAA 09 – FRESH FOOD ICE MAKER

Products

Position	Product
NIA	241953902 Frigidaire Refrigerator Screw
NIA	218976425 Frigidaire Refrigerator Water Inlet Tube
NIF	241965906 Frigidaire Refrigerator Water Tube
NIE	241964707 Frigidaire Refrigerator Water Tube
NID	241920106 Frigidaire Fill Tube Kit
NIC	241844403 Frigidaire Refrigerator Tube
NIA	240363602 Frigidaire Refrigerator Shoulder Screw
NI	241806601 Frigidaire Refrigerator Water Connector
NIB	WCI 218976428
NI	240396801 Frigidaire Refrigerator Tube Clamp
1	218976435 Frigidaire Refrigerator Water Inlet Tube
2	243297613 Frigidaire Refrigerator Ice Maker
21	WCI 5304469378
23	WCI 5304469392
24	WCI 5304469382
30	242100402 Frigidaire Refrigerator Housing Assembly
31	5304469389 Frigidaire Switch Spacer
32	WCI 5304469400
33	HOUSING-EVAPORATOR
55	QUAD WATER VALVE
65	242232701 Frigidaire Refrigerator Cover
66	WCI 242060701
68	242095002 Frigidaire Refrigerator Cover
