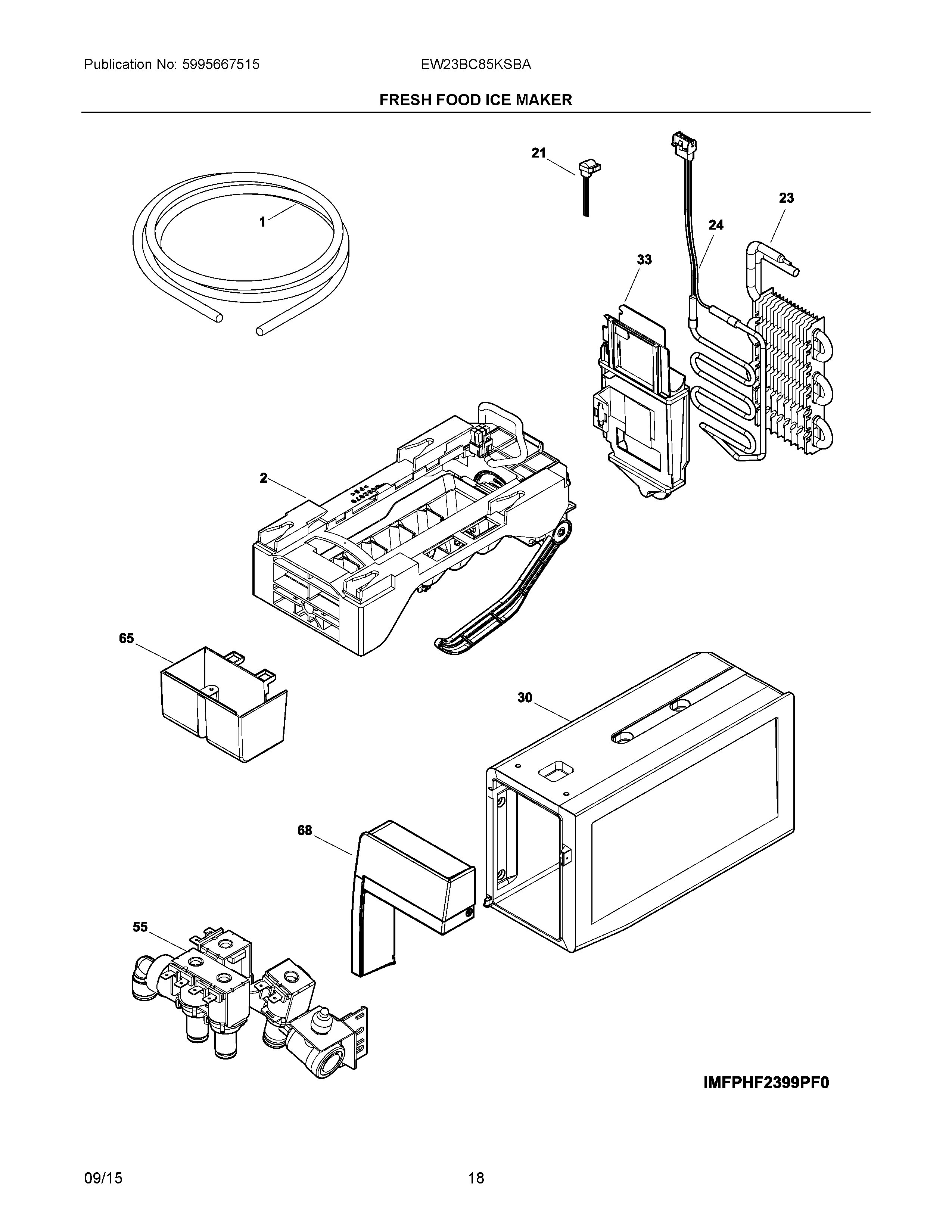

EW23BC85KSBA 09 – FRESH FOOD ICE MAKER

EW23BC85KSBA 09 – FRESH FOOD ICE MAKER

Written by

in

EW23BC85KSBA 09 – FRESH FOOD ICE MAKER

Products

PositionProduct
NIA241953902 Frigidaire Refrigerator Screw
NIF242220112 Frigidaire Refrigerator Water Tube
NID241965906 Frigidaire Refrigerator Water Tube
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIA242096001 Frigidaire Refrigerator Insulation
NIH242095425 Frigidaire Gasket
NIB5303918784 Frigidaire Refrigerator Air Handler Housing
NIE5303918602 Frigidaire Refrigerator Water Tube Kit
NIC241964707 Frigidaire Refrigerator Water Tube
NIB241920106 Frigidaire Fill Tube Kit
NI240396801 Frigidaire Refrigerator Tube Clamp
NI241806601 Frigidaire Refrigerator Water Connector
NIA240363602 Frigidaire Refrigerator Shoulder Screw
NIH242200102 Frigidaire Refrigerator Clip
NIA241695906 Frigidaire Screw
NIG242220113 Frigidaire Refrigerator Water Tube
NIA5304485759 Frigidaire Refrigerator Tape
NIA241844403 Frigidaire Refrigerator Tube
1218976435 Frigidaire Refrigerator Water Inlet Tube
2243297613 Frigidaire Refrigerator Ice Maker
215303918810 Frigidaire Refrigerator French Door Defrost Thermostat
23242094603 Frigidaire Refrigerator Evaporator
24242094802 Frigidaire Defrost Heater
30242100402 Frigidaire Refrigerator Housing Assembly
33HOUSING-EVAPORATOR
55QUAD WATER VALVE
65808462601 Frigidaire Refrigerator Cover
68242095002 Frigidaire Refrigerator Cover
