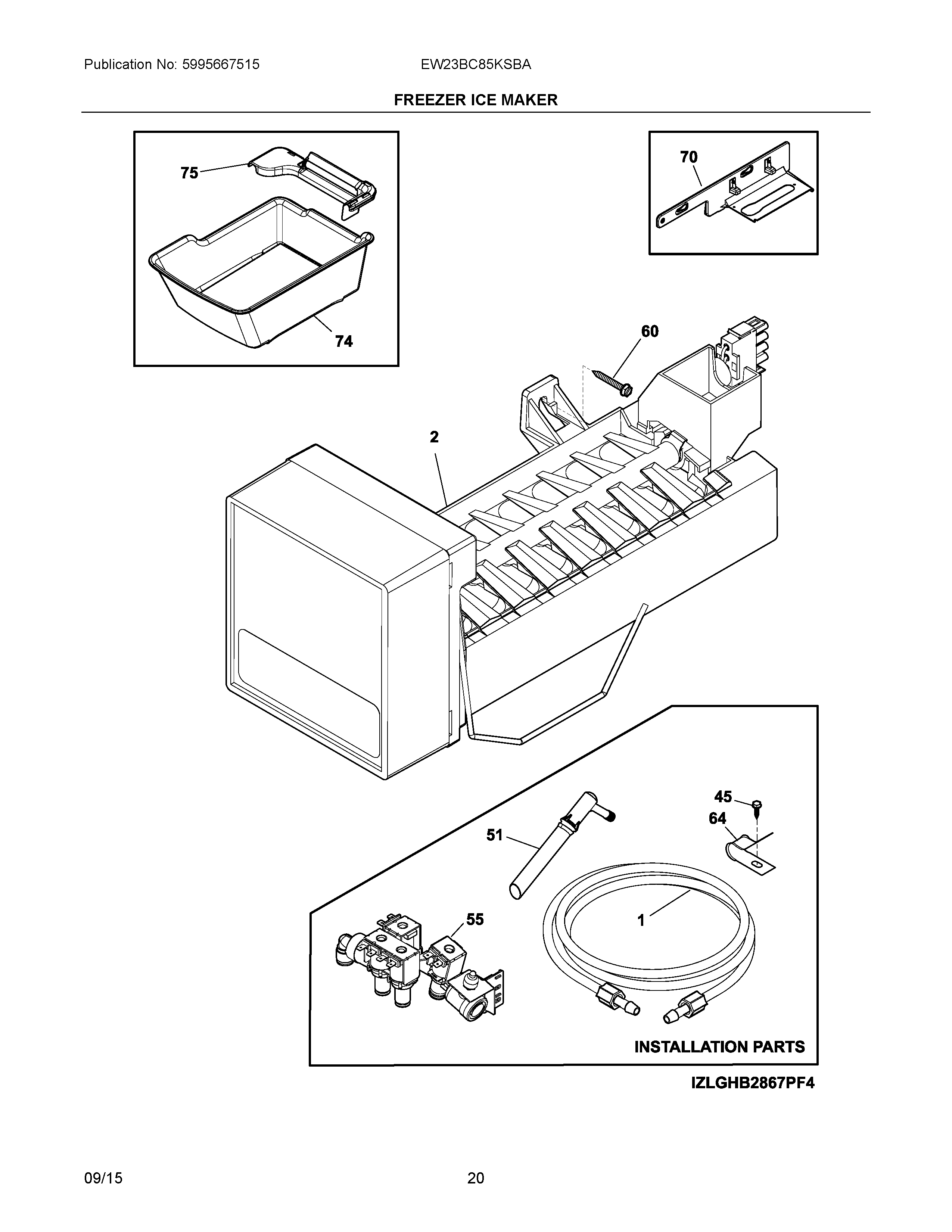

EW23BC85KSBA 10 – FREEZER ICE MAKER

Products

Position	Product
NI	240396801 Frigidaire Refrigerator Tube Clamp
NIG	242200102 Frigidaire Refrigerator Clip
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NIA	241844403 Frigidaire Refrigerator Tube
NIB	241920106 Frigidaire Fill Tube Kit
NIC	241964707 Frigidaire Refrigerator Water Tube
NI	241503901 Frigidaire Refrigerator P-1 Tube Adapter
NID	241965906 Frigidaire Refrigerator Water Tube
NIE	242220112 Frigidaire Refrigerator Water Tube
NIA	240363602 Frigidaire Refrigerator Shoulder Screw
NI	241806601 Frigidaire Refrigerator Water Connector
NIA	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NIF	242220113 Frigidaire Refrigerator Water Tube
1	218976435 Frigidaire Refrigerator Water Inlet Tube
2	5303918493 Frigidaire Refrigerator Ice Maker Assembly
45	5304455650 Frigidaire Refrigerator Screw
51	5303918602 Frigidaire Refrigerator Water Tube Kit
55	QUAD WATER VALVE
60	5304455852 Frigidaire Refrigerator Screw
64	5304455846 Frigidaire Refrigerator Clamp
70	242053001 Frigidaire Refrigerator Bracket
74	242128001 Frigidaire Ice Container
75	242240101 Frigidaire Refrigerator Shield
