EW23BC85KSDA 10 – FREEZER ICE MAKER

EW23BC85KSDA 10 – FREEZER ICE MAKER

Written by

in

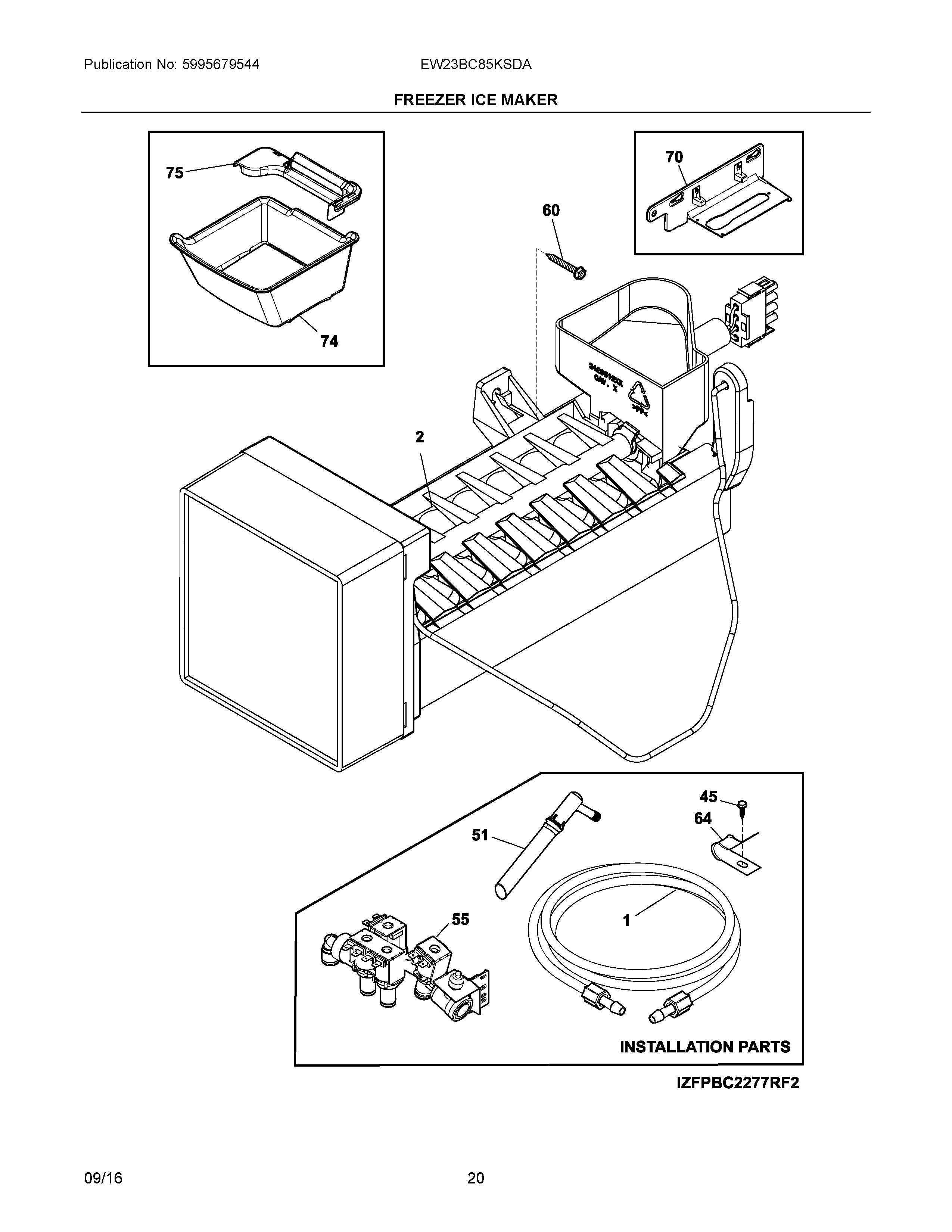

EW23BC85KSDA 10 – FREEZER ICE MAKER

Products

PositionProduct
NI240396801 Frigidaire Refrigerator Tube Clamp
NIE242200102 Frigidaire Refrigerator Clip
NICLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NIA241844403 Frigidaire Refrigerator Tube
NIB241920106 Frigidaire Fill Tube Kit
NIC241964707 Frigidaire Refrigerator Water Tube
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NID241965906 Frigidaire Refrigerator Water Tube
NIF242220112 Frigidaire Refrigerator Water Tube
NIA240363602 Frigidaire Refrigerator Shoulder Screw
NI241806601 Frigidaire Refrigerator Water Connector
NIA240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NIG242220113 Frigidaire Refrigerator Water Tube
1218976435 Frigidaire Refrigerator Water Inlet Tube
2241798233 Frigidaire Refrigerator Ice Maker
455304455650 Frigidaire Refrigerator Screw
515303918602 Frigidaire Refrigerator Water Tube Kit
55QUAD WATER VALVE
605304455852 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
70242053001 Frigidaire Refrigerator Bracket
74242128001 Frigidaire Ice Container
75242240101 Frigidaire Refrigerator Shield
