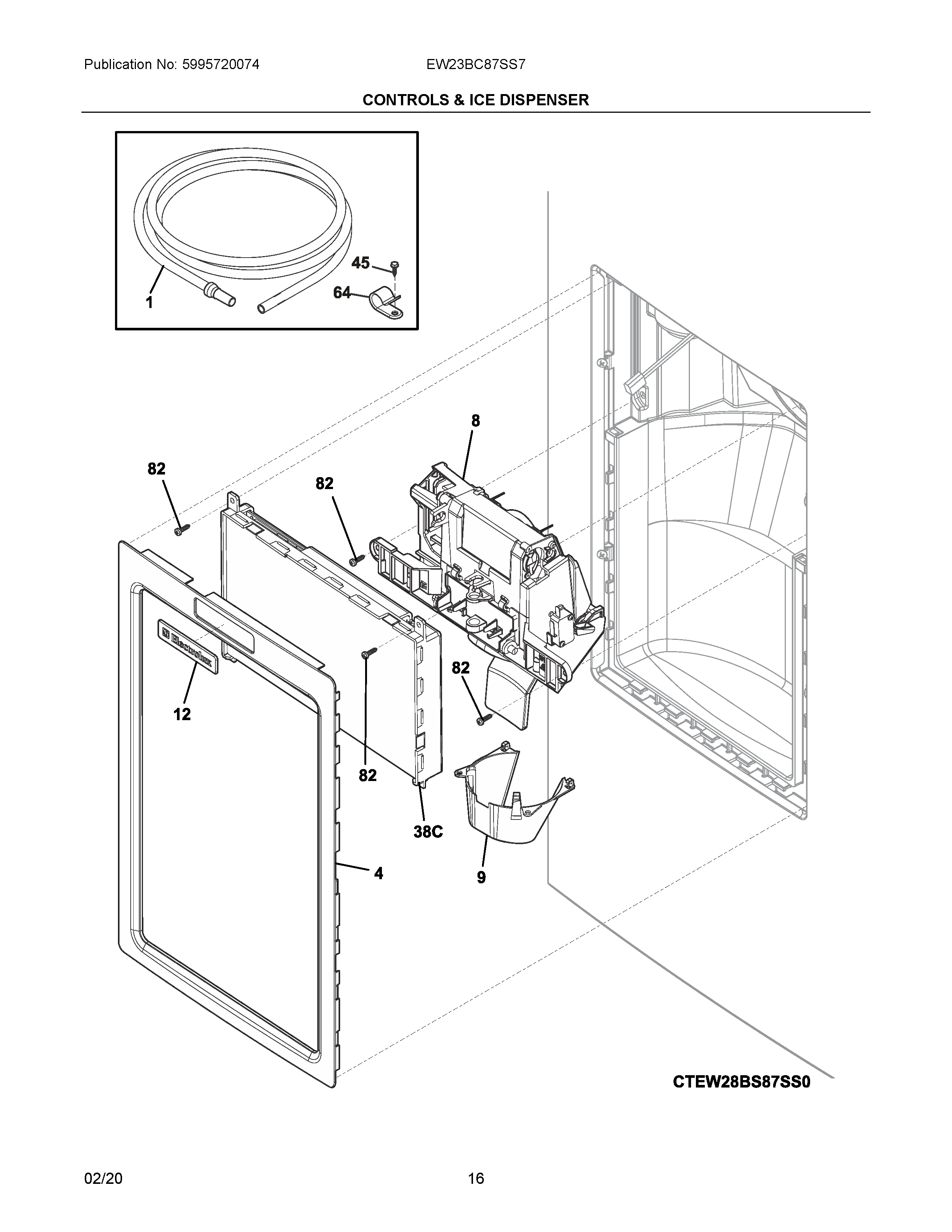

EW23BC87SS7 07 – CONTROLS & ICE DISPENSER

EW23BC87SS7 07 – CONTROLS & ICE DISPENSER

Written by

in

EW23BC87SS7 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NI5303918744 Frigidaire Refrigerator Kit
NIA241965910 Frigidaire Refrigerator Water Tube
NIC242200102 Frigidaire Refrigerator Clip
NIB241806601 Frigidaire Refrigerator Water Connector
NID242220119 Frigidaire Refrigerator Water Tube
NI242040805 Frigidaire Refrigerator Wiring Harness
NI241510904 Frigidaire Refrigerator Dispenser Harness
1218976436 Frigidaire Refrigerator Water Inlet Tube
1E241964707 Frigidaire Refrigerator Water Tube
4241893104 Frigidaire Refrigerator Water Dispenser Cover With Nozzle
8242270105 Frigidaire Refrigerator Module
95303918484 Frigidaire Dispenser
12241873301 Frigidaire Refrigerator Nameplate
38C5304508149 Frigidaire Refrigerator Control Assembly
455304455650 Frigidaire Refrigerator Screw
64240396801 Frigidaire Refrigerator Tube Clamp
82241953902 Frigidaire Refrigerator Screw
