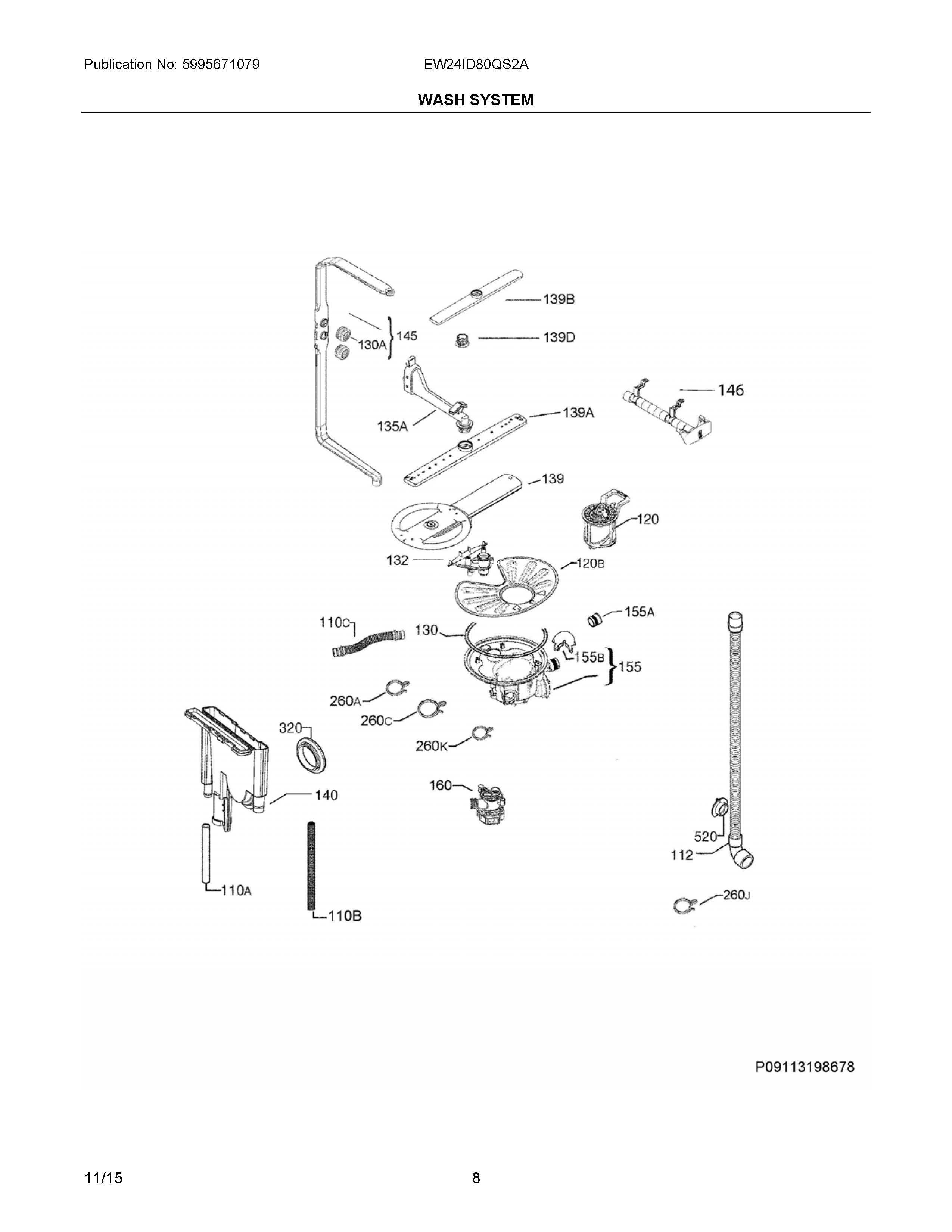

EW24ID80QS2A 05 – WASH SYSTEM

EW24ID80QS2A 05 – WASH SYSTEM

Written by

in

EW24ID80QS2A 05 – WASH SYSTEM

Products

PositionProduct
NISCREW, SUMP, 4 X 15, (4), & SPRAY ARM
110A807526501 Frigidaire Dishwasher Tubing Assembly
110B117281425 Frigidaire Dishwasher Hose
110CA01256402 Frigidaire Dishwasher Hose
112807032601 Frigidaire Dishwasher Hose
120BWCI 111920904
120A00201409 Frigidaire Dishwasher Drain Filter
130111918600 Frigidaire Dishwasher O-Ring
130AA00045701 Frigidaire Dishwasher Seal
132A11243702 Frigidaire Dishwasher Spray Arm
135AA00060302 Frigidaire Dishwasher Duct
139A808321102 Frigidaire Dishwasher Spray Arm
139B807382106 Frigidaire Dishwasher Upper Spray Arm
139D807035801 Frigidaire Wash Arm Bearing
139111920868 Frigidaire Lower Wash Arm
140A01087405 Frigidaire Dishwasher Water Tank
145A00023201 Frigidaire Dishwasher Spray Arm Manifold
146807008602 Frigidaire Dishwasher Arm Assembly
155AA00053601 Frigidaire Dishwasher Flapper
155WCI A00049420
155B111917701 Frigidaire Dishwasher Screen
160A00001202 Frigidaire Dishwasher Regulator
260J807868901 Frigidaire Dishwasher Clamp
260C807868903 Frigidaire Dishwasher Clamp
260A807868902 Frigidaire Dishwasher Clamp
260KWCI 807868904
320152627221 Frigidaire Dishwasher GRILL
520807201901 Frigidaire Dishwasher Flange
