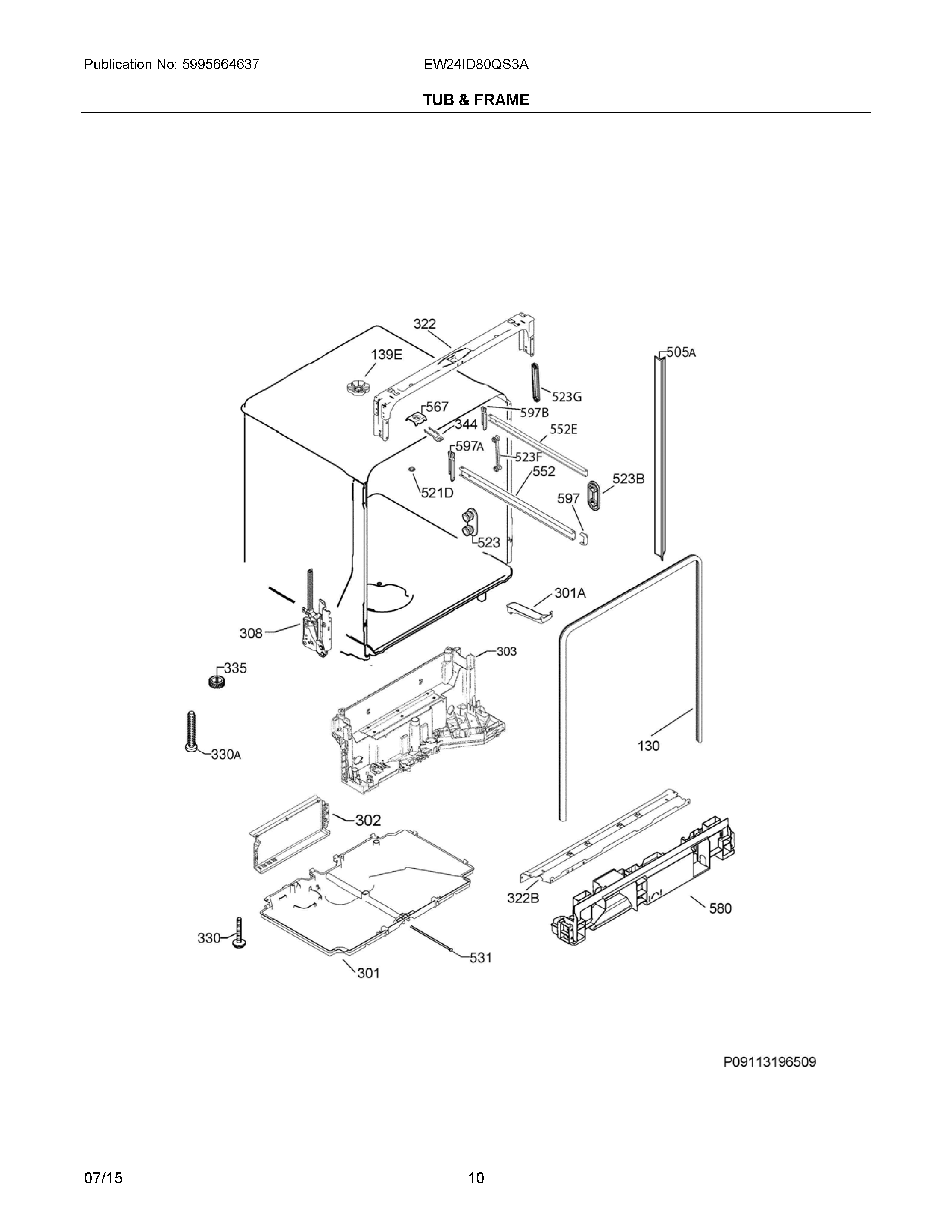

EW24ID80QS3A 06 – TUB & FRAME

Products

Position	Product
NI	INSULATION, BLANKET, 2130X475MM
NI	405531515 Frigidaire Dishwasher Mounting Kit
NI	117427700 Frigidaire Dishwasher Clip
NI	405530687 Frigidaire Screw
130	117158011 Frigidaire Dishwasher Door Seal Gasket
139E	807240301 Frigidaire Dishwasher Nut
301A	405513837 Frigidaire Dishwasher OVERFlow Hose
301	807104203 Frigidaire Dishwasher Tray
302	A00075002 Frigidaire Dishwasher Cover
303	WCI 807104103
308	405528816 Frigidaire Dishwasher Hinge Assembly
322B	117156109 Frigidaire Cross Piece
322	A00166801 Frigidaire Dishwasher Crossbar
330A	117363200 Frigidaire Dishwasher Foot
330	117368700 Frigidaire Dishwasher Foot
335	152714200 Frigidaire Dishwasher COG
344	152234405 Frigidaire Dishwasher Latch
505A	808470401 Frigidaire Dishwasher Trim
521D	152657610 Frigidaire PLUG
523G	A00204701 Frigidaire Dishwasher Holder
523B	152122010 Frigidaire Dishwasher Holder
523F	ROLLER KIT, TUB, TOP LH-RH
523	405526079 Frigidaire Dishwasher Roller Assembly
531	A00021003 Frigidaire Dishwasher Screw
552	A00212701 Frigidaire Dishwasher Rail
552E	807085002 Frigidaire Rail
567	152323603 Frigidaire Dishwasher Bracket
580	WCI 807104305
597B	807070701 Frigidaire Dishwasher Stop Assembly
597A	646123406 Frigidaire Dishwasher Stop
597	152047941 Frigidaire Dishwasher STOP
