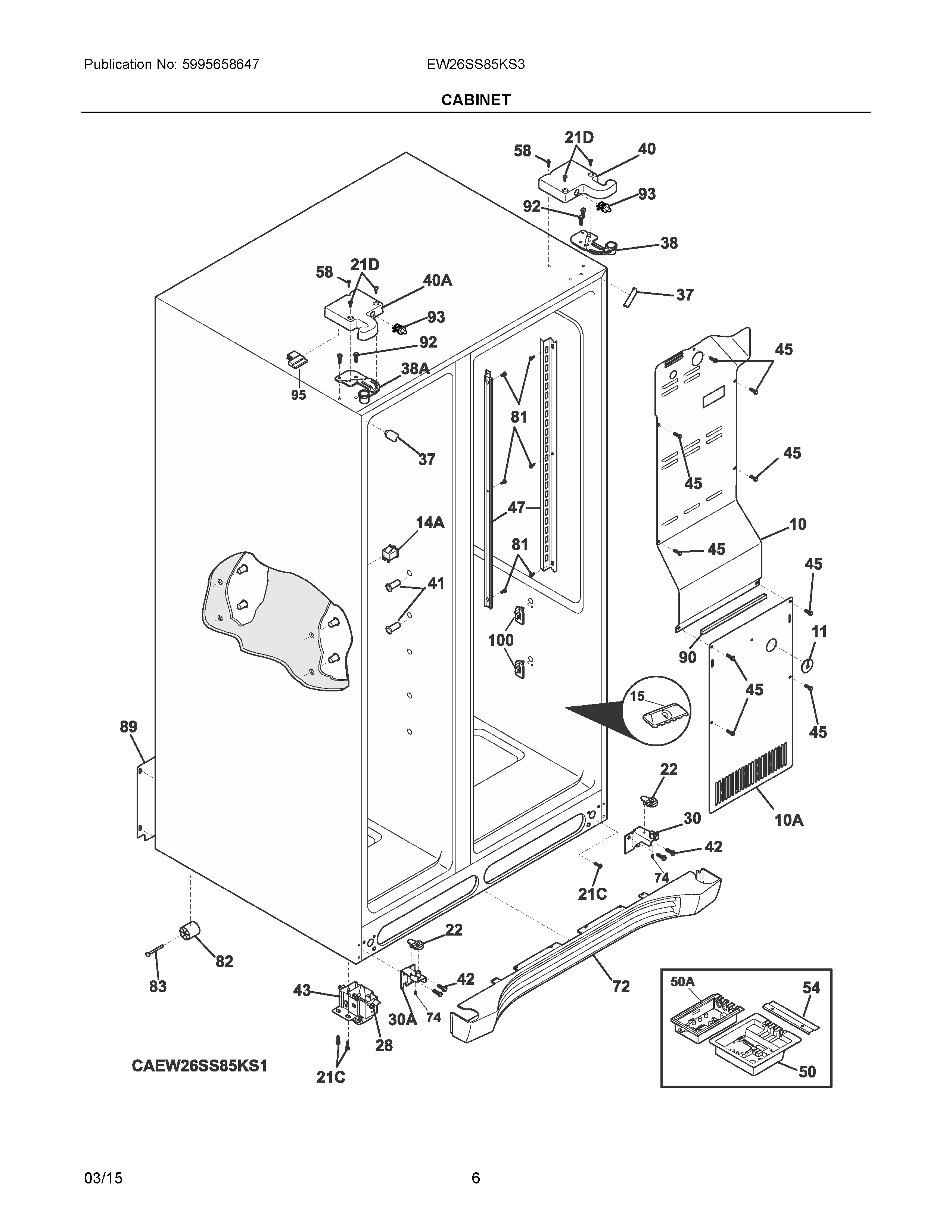

EW26SS85KS3 04 – CABINET

Products

Position	Product
NIA	WCI 242150001
NIAA	241852501 Frigidaire Refrigerator Clip
NIAA	241891901 Frigidaire Refrigerator Wiring Harness
NIA	241835801 Frigidaire Refrigerator Wiring Harness
NIA	WCI 242177301
NI	241890601 Frigidaire Refrigerator Louver Assembly
NIA	241852502 Frigidaire Refrigerator Clip
NI	Air duct assy,meat keeper
NIB	WCI 242036802
NIA	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
10	WCI 240435914
10A	241719711 Frigidaire Refrigerator Evaporator Coil Cover
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
15	WCI 241891104
21D	218781101 Frigidaire Handle Screw
21C	218252201 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30	241918001 Frigidaire Lower Door Hinge
30A	241918002 Frigidaire Refrigerator Lower Hinge
37	242161206 Frigidaire Refrigerator Cabinet Corner Trim
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40	241946709 Frigidaire Refrigerator Upper Hinge Cover
40A	WCI 242168904
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	WCI 241513002
50A	WCI 241891611
50	5304499464 Frigidaire Refrigerator Board-Main Power
54	241532401 Frigidaire Refrigerator Channel
58	241548003 Frigidaire Refrigerator Screw
72	WCI 241758708
74	218755402 Frigidaire Refrigerator Set Screw
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	WCI 241733905
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
92	241710601 Frigidaire Refrigerator Screw
93	241911705 Frigidaire Refrigerator Light Switch
95	241530501 Frigidaire Refrigerator Humidity Sensor
100	WCI 242177401
