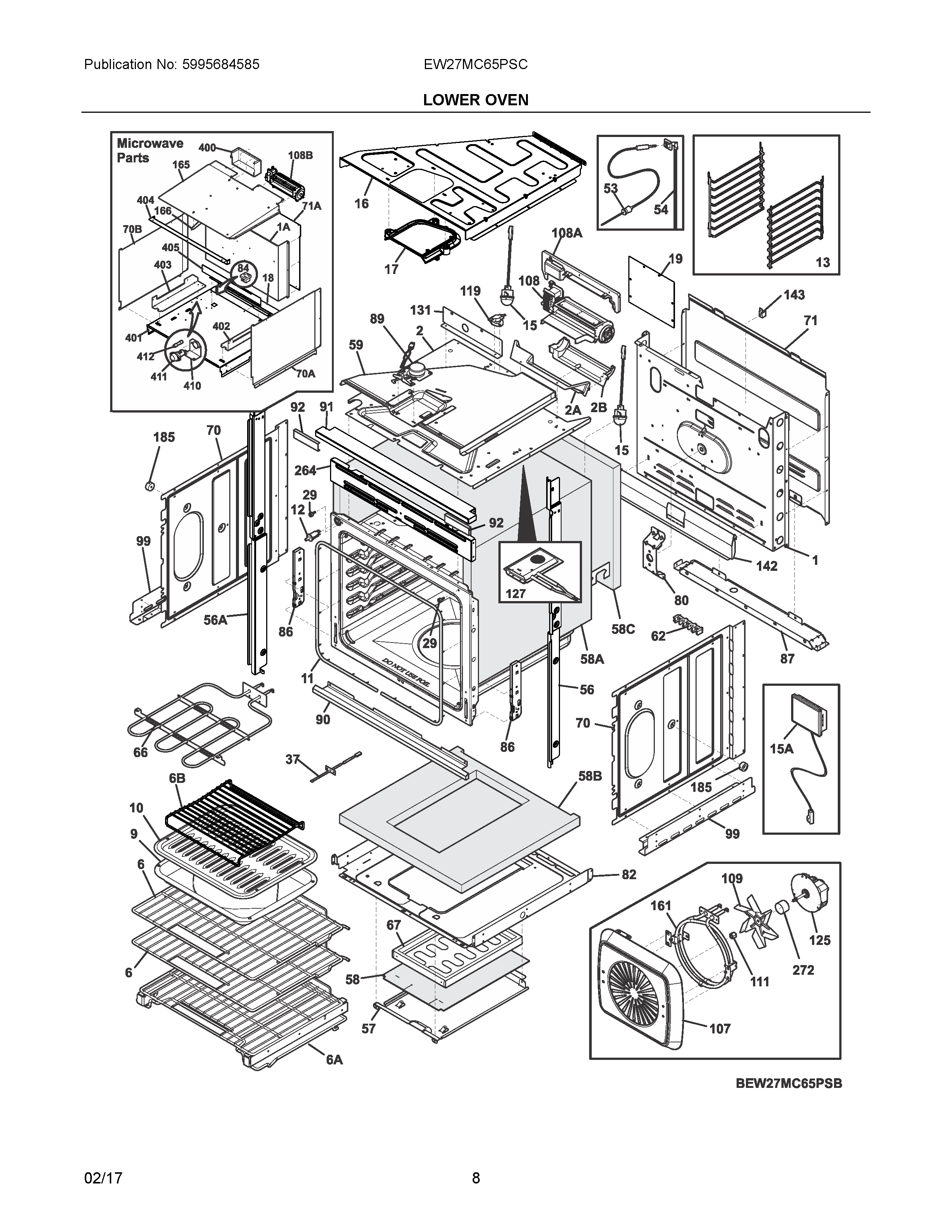

EW27MC65PSC 04 – LOWER OVEN

EW27MC65PSC 04 – LOWER OVEN

Written by

in

EW27MC65PSC 04 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIA139022101 Frigidaire Insulation
NI316021119 Frigidaire Oven Screw
NIB5303323130 Frigidaire Oven Screw
NI5304517285 Frigidaire Assembly Harness
NI807597603 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI5304470882 Frigidaire Oven Screw
NIAWCI 318231870
NIA316418900 Frigidaire Oven Screw
NI5304506955 Frigidaire Harness Assembly
NIAWCI 318579001
NI5303289910 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIA5304453707 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NIWCI 5304503651
NIA316001017 Frigidaire Screw
NIAA318946400 Frigidaire Oven Bulb
1139003805 Frigidaire Panel
1AWCI 318259280
2139027805 Frigidaire Shield
2A139015900 Frigidaire SHIELD
2B139038901 Frigidaire Oven Housing
6139011505 Frigidaire RACK ASSEMBLY
6BWCI 318219500
6A808713910 Frigidaire Glide Rack
9316081901 Frigidaire Oven Baking Pan
10316082001 Frigidaire Oven Insert
11807545503 Frigidaire Seal
12808136601 Frigidaire Oven Switch
13808713901 Frigidaire Ladder Assembly
15AWCI 139001800
155304528790 Frigidaire Lamp Assembly Appliance
16DUCT, COOLING, XFLOW
17DUCT, SUCTION BYPASS, 2 CHANNEL
18SHIELD, FAN
19PLATE, DUCT, XFLOW
29316517601 Frigidaire Bumper
37SENSOR
535304503737 Frigidaire Black Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
56TRIM, FILLER, SILVER, RH
56ATRIM, FILLER, SILVER, LH
57139021200 Frigidaire PANEL
58C139021401 Frigidaire INSULATION
58A139001701 Frigidaire INSULATION
58B139021501 Frigidaire Insulation
58139022100 Frigidaire Insulation
59139015700 Frigidaire Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304523477 Frigidaire Element
67318902502 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
70B808543603 Frigidaire Panel
70A808543602 Frigidaire Panel
71A807119601 Frigidaire Panel
71139022000 Frigidaire Oven Shield
80139021101 Frigidaire Bracket Assembly
82139003101 Frigidaire Shield
845304517286 Frigidaire Outlet Assembly
86139026900 Frigidaire Receptacle
87139021900 Frigidaire Bracket
89139021302 Frigidaire Oven Motor
90318903535 Frigidaire Trim
91WCI 808804903
92WCI 807804901
99318256201 Frigidaire Oven Bracket
107139013902 Frigidaire Oven Cover Assembly
108WCI 139038301
108B318073038 Frigidaire Oven Motor
108A139015300 Frigidaire Oven Bracket
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
1195304494446 Frigidaire Oven Switch
125139008502 Frigidaire Oven Motor Assembly
127807123501 Frigidaire Catalyst
131WCI 139015200
142WCI 139021800
143318172904 Frigidaire Bracket
161139006500 Frigidaire Oven Element
165WCI 318381740
166WCI 318577001
185318531800 Frigidaire Oven Spacer
264807804702 Frigidaire Trim
272139021700 Frigidaire Oven Tube
400WCI 318576901
401WCI 807119705
402WCI 318406712
403WCI 318406713
404WCI 808804702
4055304502990 Frigidaire Panel
410WCI 318933901
412318647300 Frigidaire Microwave Fuse and Holder
