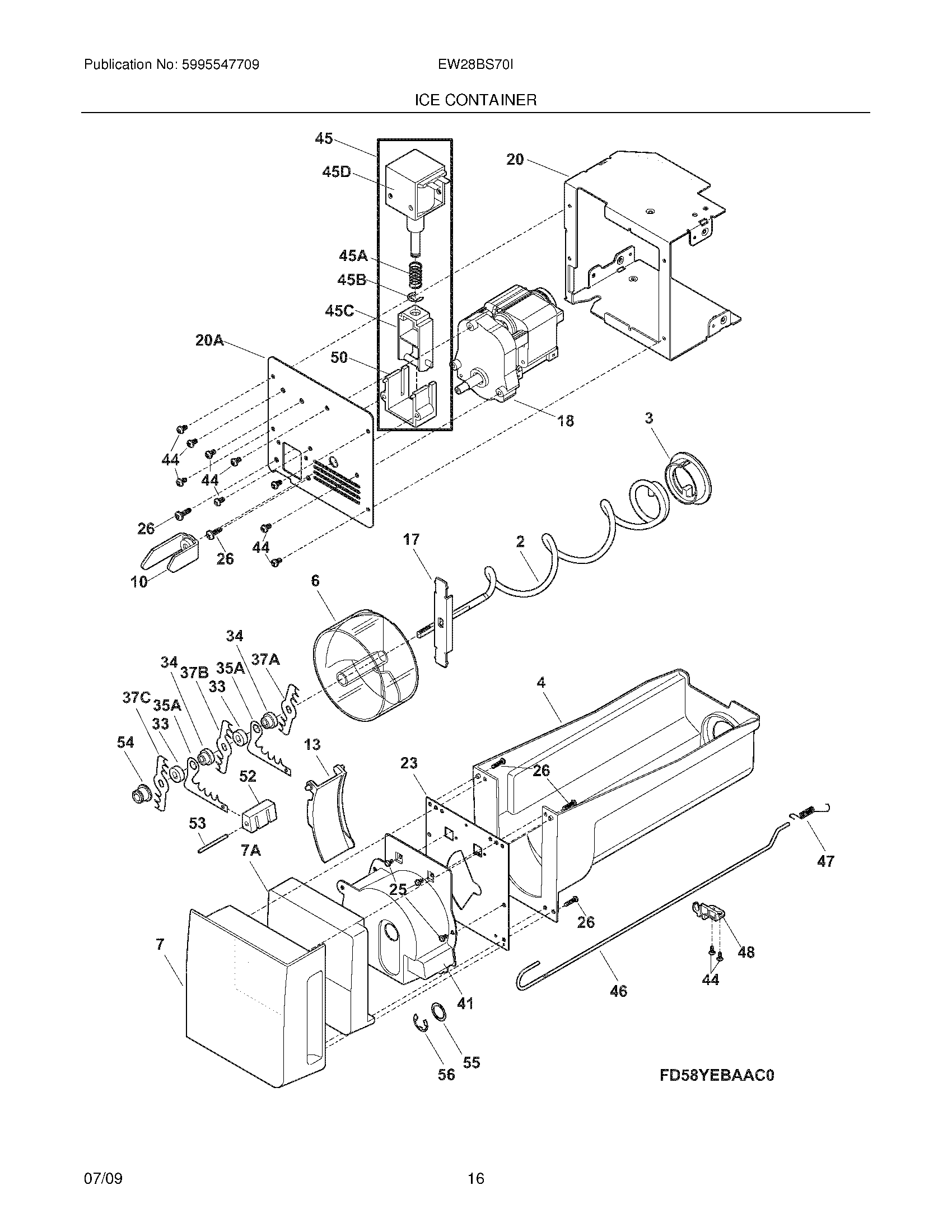

EW28BS70IB0 15 – ICE CONTAINER

Products

PositionProduct
2WCI 7241829401
3WCI 7241830201
4241816801 Frigidaire Refrigerator Ice Container
6241829802 Frigidaire Drum Ice Dispenser
7AWCI 7241844201
7WCI 7241829701
10241829001 Frigidaire Refrigerator Bar Drive
13WCI 7241829901
17WCI 7241830601
18241816602 Frigidaire Refrigerator Motor-AUGER
20AWCI 7241843101
20WCI 7241828901
23241829501 Frigidaire Refrigerator Plate-Front
25240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
26241690602 Frigidaire Refrigerator Screw
33241684802 Frigidaire Refrigerator Spacer
34241689802 Frigidaire Refrigerator Spacer
35AWCI 7241830401
37CWCI 7241830303
37BWCI 7241830302
37AWCI 7241830301
41WCI 7241830001
44218359202 Frigidaire Refrigerator Screw
45C241676101 Frigidaire Refrigerator Solenoid-Actuator
45B241676001 Frigidaire Refrigerator E-Ring Solenoid
45A241675902 Frigidaire Refrigerator Solenoid Spring
45241675704 Frigidaire Refrigerator Solenoid Assembly
46WCI 7241817901
47241839001 Frigidaire Refrigerator Spring-Control Rod
48241830101 Frigidaire Refrigerator Bracket-Control
50241675601 Frigidaire Refrigerator Solenoid Guide
52WCI 7241830701
53241869601 Frigidaire Refrigerator Pin
54241829601 Frigidaire Refrigerator Nut-Auger
55WCI 7241690301
56241690201 Frigidaire Refrigerator E-Ring
