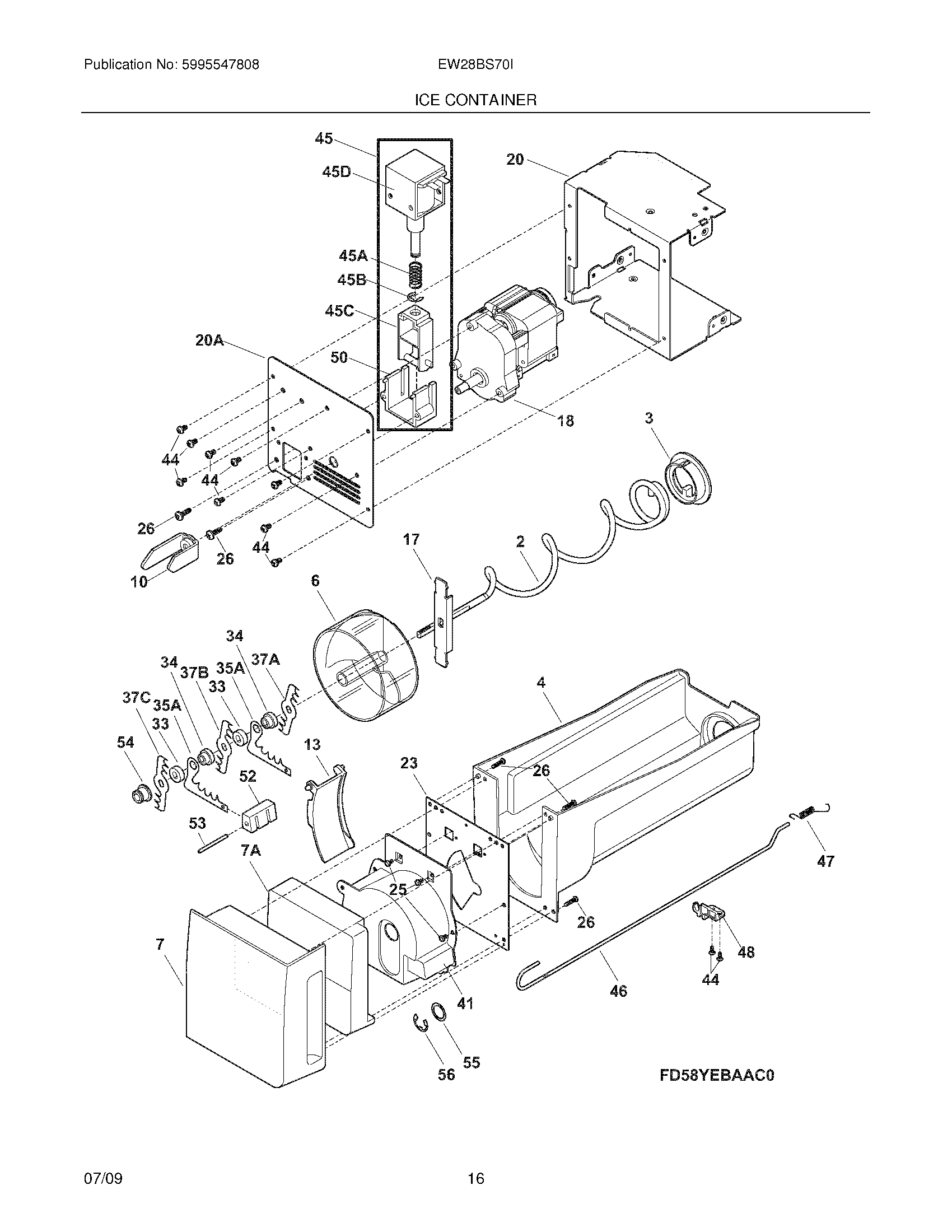

EW28BS70IS1 15 – ICE CONTAINER

Products

Position	Product
NI	WCI 7241869702
NI	WCI 7241869701
NI	WCI 7242007101
2	WCI 7241829401
3	WCI 7241830201
4	241816801 Frigidaire Refrigerator Ice Container
6	241829802 Frigidaire Drum Ice Dispenser
7	WCI 7241829701
7A	WCI 7241844201
10	241829001 Frigidaire Refrigerator Bar Drive
13	WCI 7241829901
17	WCI 7241830601
18	241816602 Frigidaire Refrigerator Motor-AUGER
20	WCI 7241828901
20A	WCI 7241843101
23	241829501 Frigidaire Refrigerator Plate-Front
25	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
26	241690602 Frigidaire Refrigerator Screw
33	241684802 Frigidaire Refrigerator Spacer
34	241689802 Frigidaire Refrigerator Spacer
35A	WCI 7241830401
37C	WCI 7241830303
37B	WCI 7241830302
37A	WCI 7241830301
41	WCI 7241830001
44	218359202 Frigidaire Refrigerator Screw
45A	241675902 Frigidaire Refrigerator Solenoid Spring
45B	241676001 Frigidaire Refrigerator E-Ring Solenoid
45C	241676101 Frigidaire Refrigerator Solenoid-Actuator
45	241675704 Frigidaire Refrigerator Solenoid Assembly
46	WCI 7241817901
47	241839001 Frigidaire Refrigerator Spring-Control Rod
48	241830101 Frigidaire Refrigerator Bracket-Control
50	241675601 Frigidaire Refrigerator Solenoid Guide
52	WCI 7241830701
53	241869601 Frigidaire Refrigerator Pin
54	241829601 Frigidaire Refrigerator Nut-Auger
55	WCI 7241690301
56	241690201 Frigidaire Refrigerator E-Ring
