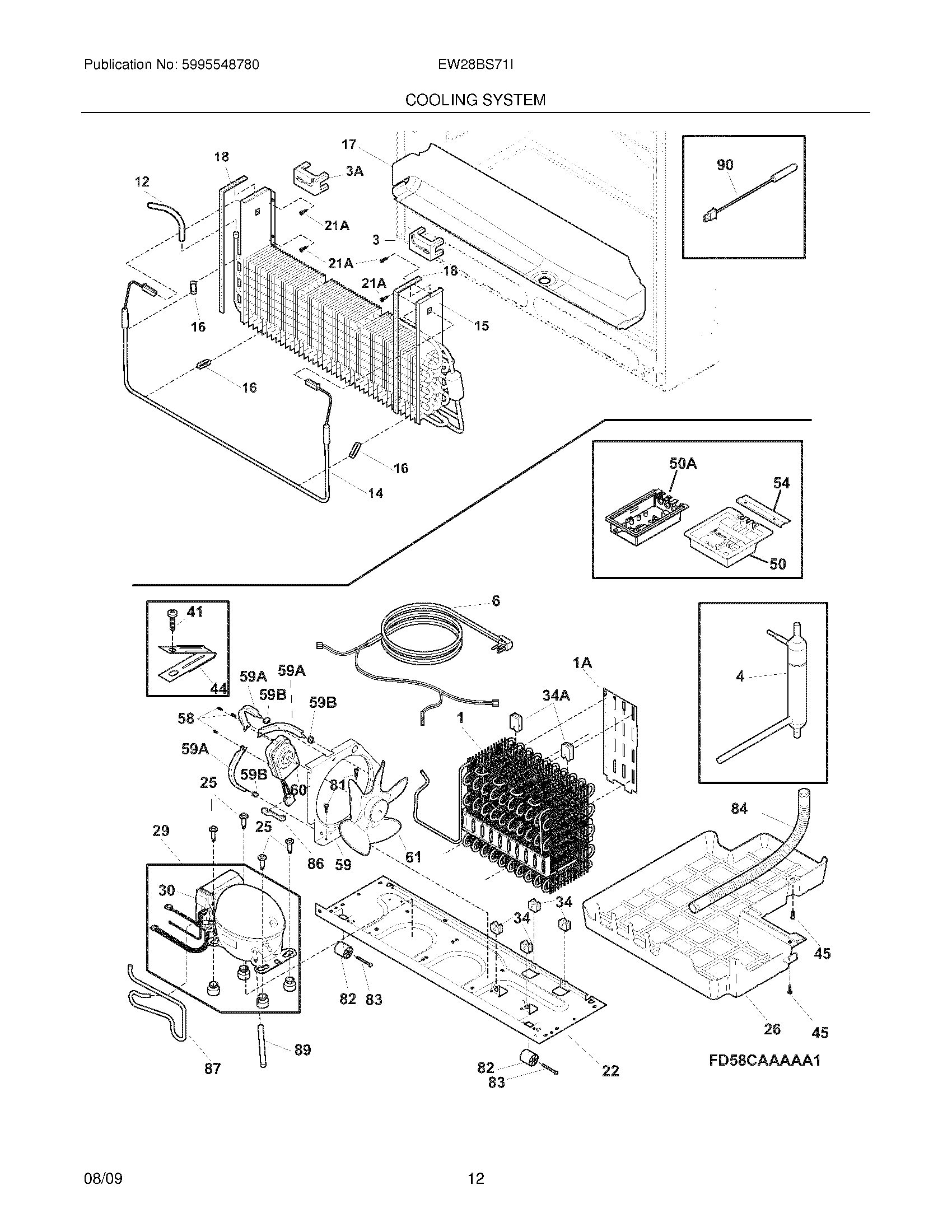

EW28BS71IB0 11 – COOLING SYSTEM

Products

Position	Product
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	215474201 Frigidaire Refrigerator Washer
NI	242004802 Frigidaire Refrigerator Foam Strip
NI	WCI 7241859801
NI	241953902 Frigidaire Refrigerator Screw
1	241862903 Frigidaire Refrigerator Condenser
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
9	241518301 Frigidaire Refrigerator Bushing
10A	241860104 Frigidaire Refrigerator Coil Cover Gasket
10	WCI 7242058501
10A	WCI 7241860401
10A	241860105 Frigidaire Refrigerator Gasket-Coil Cover
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 7242058601
13	MOTOR,EVAPORATOR FAN
14	240505801 Frigidaire Light Switch
15	WCI 7241891101
16	WCI 7241860501
17	241928201 Frigidaire Refrigerator Air Duct Gasket
18	WCI 7241928101
19	241871901 Frigidaire Refrigerator Support-Eps Damper
20	WCI 7241922901
21A	5304453707 Frigidaire Oven Screw
21C	218252201 Frigidaire Refrigerator Screw
21	241732101 Frigidaire Refrigerator Screw
25	WCI 7241949501
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35A	WCI 7241763004
35	WCI 7241763003
36	241868201 Frigidaire Refrigerator Spacer
36A	241868202 Frigidaire Refrigerator Spacer
37	242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40B	242015901 Frigidaire Refrigerator Harness-Hinge Jumpe
40B	241862402 Frigidaire Refrigerator Upper Hinge Cover
40A	5304504487 Frigidaire Refrigerator Upper Left Hand Black Hinge Cover
40	5304504486 Frigidaire Refrigerator Right Hand Black Upper Hinge Cover
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500305 Frigidaire Refrigerator Screw
50A	241891601 Frigidaire Refrigerator Power Board
50	5303918507 Frigidaire Refrigerator Switch Board
50A	241852501 Frigidaire Refrigerator Clip
54	241532401 Frigidaire Refrigerator Channel
59	WCI 7240442707
60	5304455650 Frigidaire Refrigerator Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	WCI 7241930302
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
74	218755401 Frigidaire Refrigerator Screw Set
81	134154100 Frigidaire Screw 10-32 x 0.375 Co
