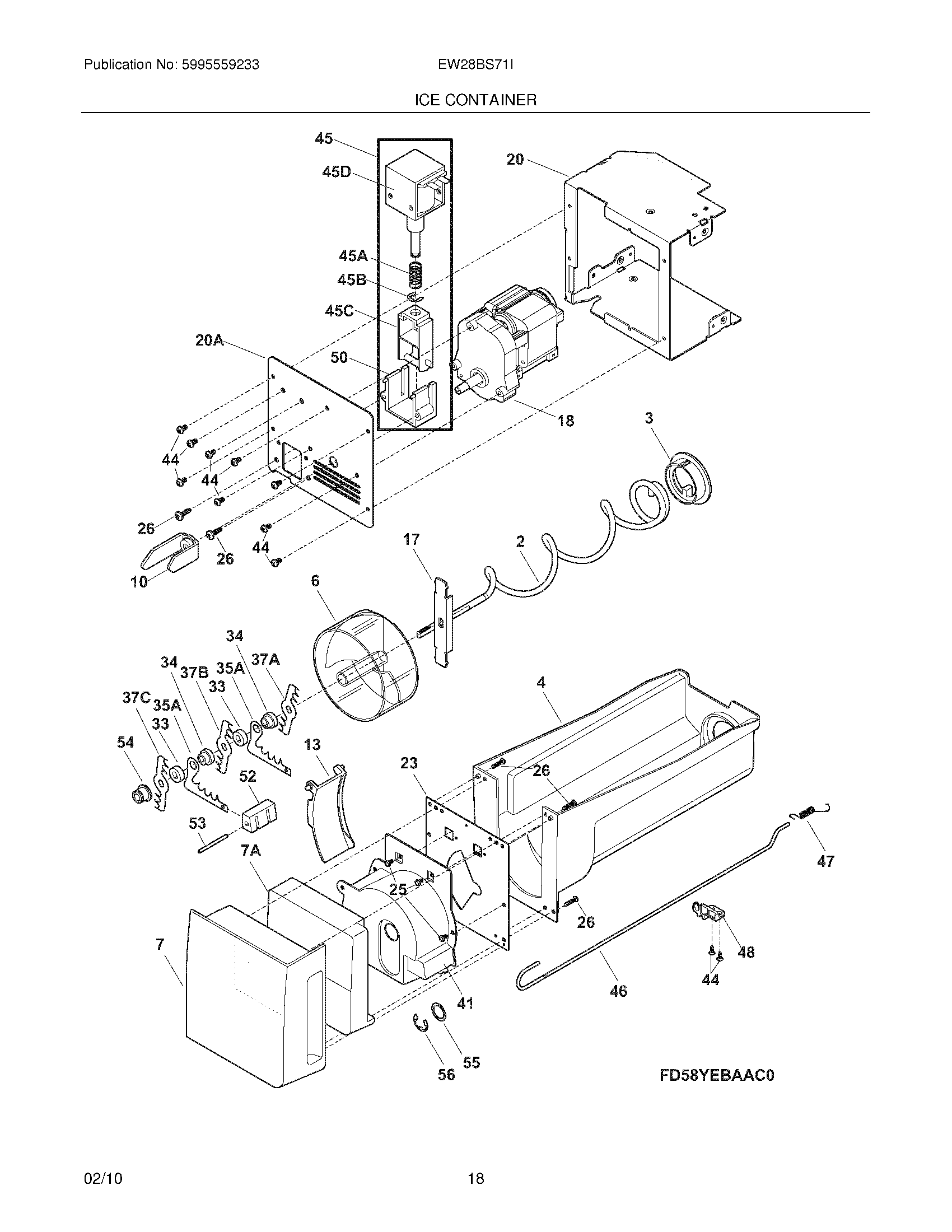

EW28BS71IS1 15 – ICE CONTAINER

EW28BS71IS1 15 – ICE CONTAINER

Written by

in

EW28BS71IS1 15 – ICE CONTAINER

Products

PositionProduct
NIWCI 241869706
NIWCI 241869705
NIWCI 242007101
2AUGER-ICE
3CAM-DRIVE
4241816801 Frigidaire Refrigerator Ice Container
6241829802 Frigidaire Drum Ice Dispenser
7AWCI 241844201
7WCI 241829701
10241829001 Frigidaire Refrigerator Bar Drive
13WCI 241829901
17DRIVE BLADE
18241816602 Frigidaire Refrigerator Motor-AUGER
20WCI 241828901
20AWCI 241843101
23241829501 Frigidaire Refrigerator Plate-Front
25240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
26241690602 Frigidaire Refrigerator Screw
33241684802 Frigidaire Refrigerator Spacer
34241689802 Frigidaire Refrigerator Spacer
35AFIXED BLADE, ROUND
37CBLADE, CRUSHER #3
37BBLADE, CRUSHER #2
37ABLADE, CRUSHER #1
41WCI 241830001
44218359202 Frigidaire Refrigerator Screw
45C241676101 Frigidaire Refrigerator Solenoid-Actuator
45D241675803 Frigidaire Refrigerator Freezer Ice Dispenser Solenoid
45B241676001 Frigidaire Refrigerator E-Ring Solenoid
45A241675902 Frigidaire Refrigerator Solenoid Spring
45241675704 Frigidaire Refrigerator Solenoid Assembly
46CONTROL ROD
47241839001 Frigidaire Refrigerator Spring-Control Rod
48241830101 Frigidaire Refrigerator Bracket-Control
50241675601 Frigidaire Refrigerator Solenoid Guide
52SPACER-FIXED BLADES
53241869601 Frigidaire Refrigerator Pin
54241829601 Frigidaire Refrigerator Nut-Auger
55241690306 Frigidaire Refrigerator Washer
56241690201 Frigidaire Refrigerator E-Ring
