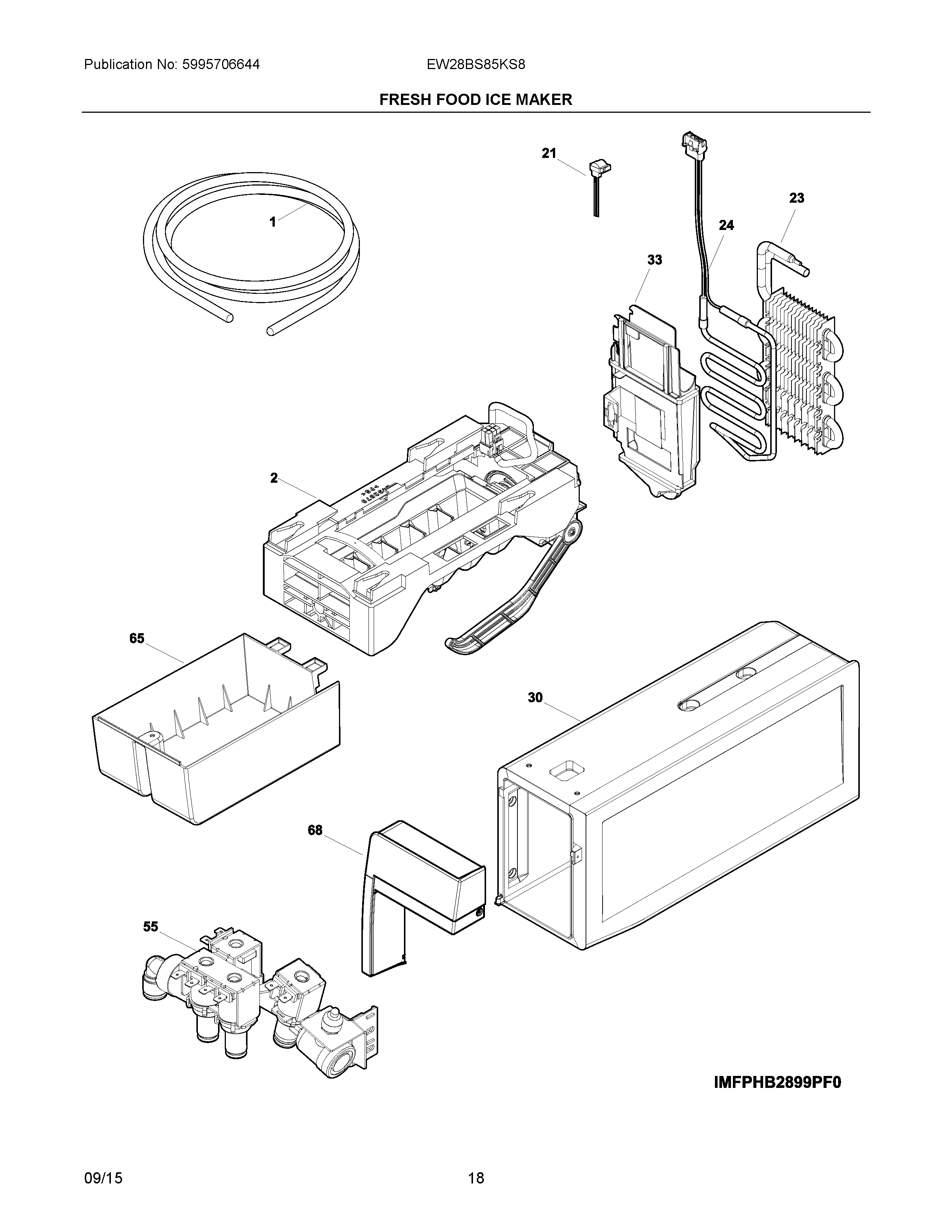

EW28BS85KS8 09 – FRESH FOOD ICE MAKER

EW28BS85KS8 09 – FRESH FOOD ICE MAKER

Written by

in

EW28BS85KS8 09 – FRESH FOOD ICE MAKER

Products

PositionProduct
NI240396801 Frigidaire Refrigerator Tube Clamp
NIE241965906 Frigidaire Refrigerator Water Tube
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIE242095425 Frigidaire Gasket
NIA5303918784 Frigidaire Refrigerator Air Handler Housing
NID241964707 Frigidaire Refrigerator Water Tube
NIC241920106 Frigidaire Fill Tube Kit
NIB241844403 Frigidaire Refrigerator Tube
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NI5303918493 Frigidaire Refrigerator Ice Maker Assembly
NI241806601 Frigidaire Refrigerator Water Connector
NIA218976423 Frigidaire Refrigerator Water Inlet Tube
NIB240363602 Frigidaire Refrigerator Shoulder Screw
1218976436 Frigidaire Refrigerator Water Inlet Tube
2243297613 Frigidaire Refrigerator Ice Maker
215303918568 Frigidaire Thermostat Defrost
22WCI 242051301
23242094603 Frigidaire Refrigerator Evaporator
24242094802 Frigidaire Defrost Heater
30242093501 Frigidaire Refrigerator Housing
33HOUSING-EVAPORATOR
55QUAD WATER VALVE
65242232701 Frigidaire Refrigerator Cover
68WCI 5304469398
