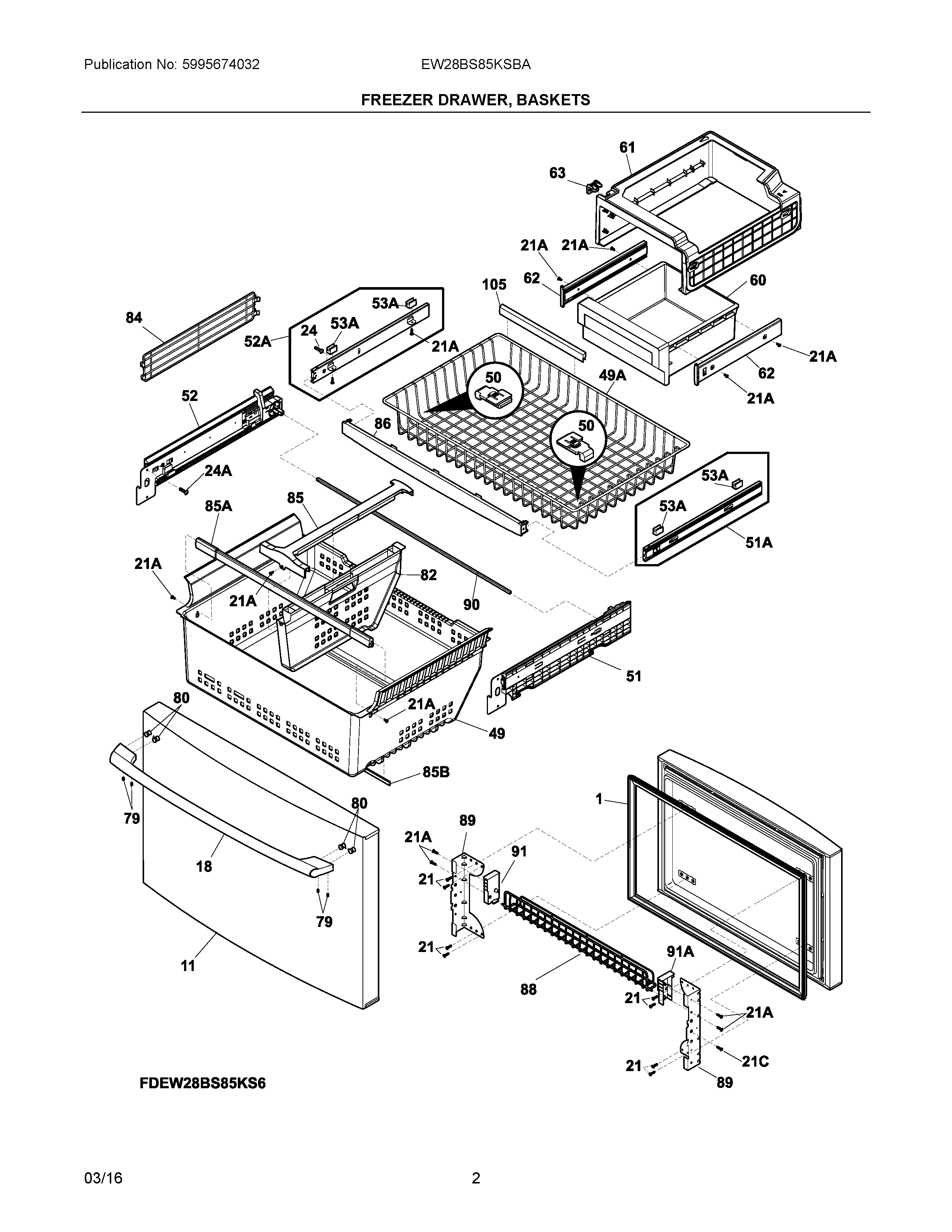

EW28BS85KSBA 02 – FREEZER DRAWER, BASKETS

EW28BS85KSBA 02 – FREEZER DRAWER, BASKETS

Written by

in

EW28BS85KSBA 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIA242139201 Frigidaire Compression Spring
NIA242039702 Frigidaire Refrigerator Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NI242146401 Frigidaire Refrigerator Screw
NI242015001 Frigidaire Refrigerator Screw
NIA5304467131 Frigidaire Refrigerator Wrench
NIA5304497384 Frigidaire Refrigerator Plate
NIAA242039701 Frigidaire Refrigerator Screw
1GASKET
11241987922 Frigidaire Refrigerator Drawer
18241881310 Frigidaire Refrigerator Handle
21C241899703 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
21241690602 Frigidaire Refrigerator Screw
24A240383412 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
495303918736 Frigidaire Refrigerator Lower Basket Kit
49A241780810 Frigidaire Refrigerator Basket-Frzr
50242219502 Frigidaire Refrigerator Clip-Basket
51A241894223 Frigidaire Drawer Slide Rail, Right
515303918690 Frigidaire Refrigerator Wire Basket Right Hand Slide
52A241894224 Frigidaire Refrigerator Slide Assembly
52SLIDE ASSEMBLY, BASKET, LH, FREEZER DRAWER
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
60WCI 242131601
61WCI 242177601
62WCI 242154102
63WCI 242159501
79218755401 Frigidaire Refrigerator Screw Set
80218755504 Frigidaire Refrigerator Shoulder Screw
825304503705 Frigidaire Refrigerator Divider
84241780904 Frigidaire Refrigerator Divider
85242130901 Frigidaire Refrigerator Divider
85B241872203 Frigidaire Refrigerator Beam Support
85A242139301 Frigidaire Refrigerator Support-Beam
865304507340 Frigidaire Refrigerator Trim
88241824008 Frigidaire Refrigerator Tilt-Out Rack
89241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90242136901 Frigidaire Refrigerator Timing Bar
91A241824101 Frigidaire Refrigerator Cap
91241824102 Frigidaire Refrigerator Door Rack Cap
105242116801 Frigidaire Refrigerator Trim-Basket
