EW28BS85KSCA 10 – FREEZER ICE MAKER

EW28BS85KSCA 10 – FREEZER ICE MAKER

Written by

in

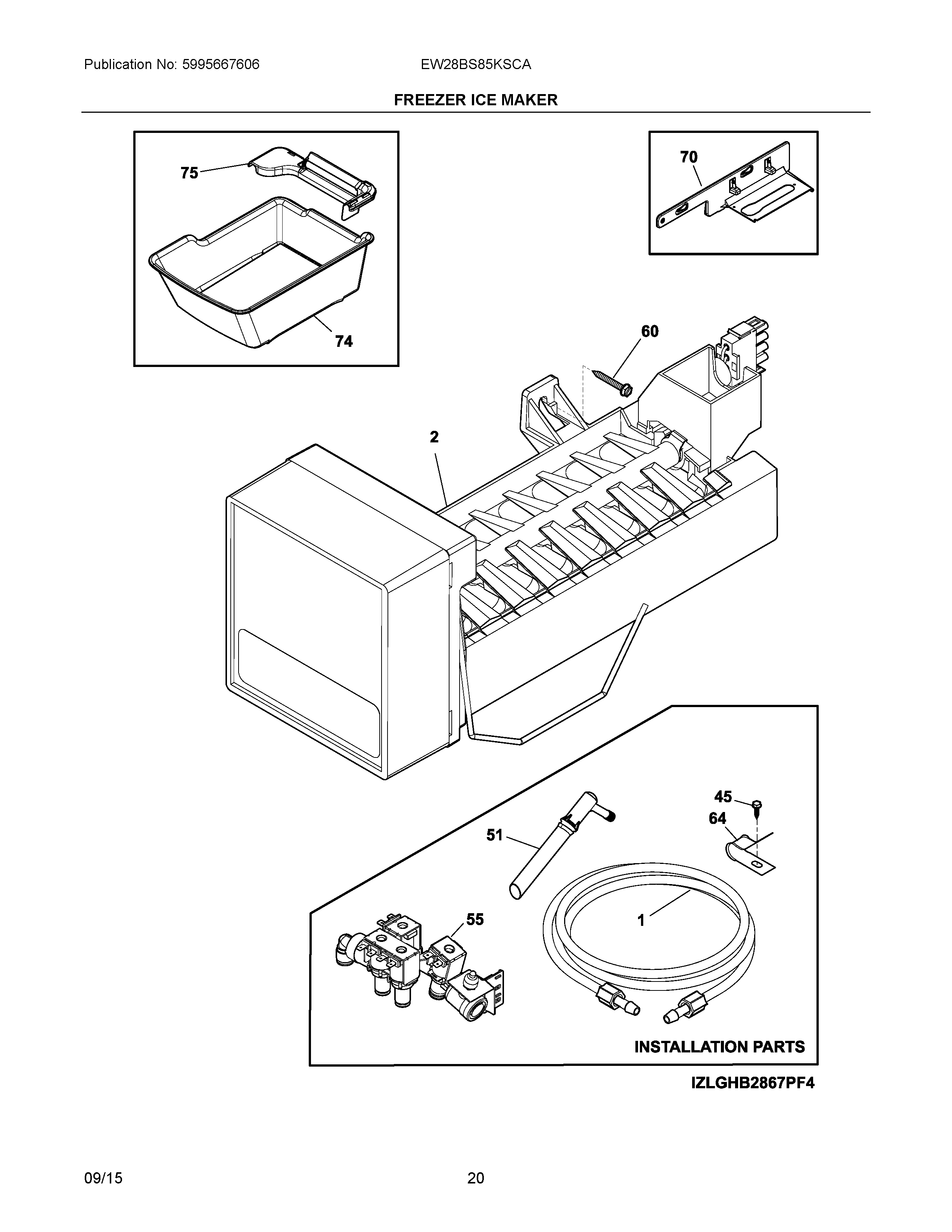

EW28BS85KSCA 10 – FREEZER ICE MAKER

Products

PositionProduct
NI240396801 Frigidaire Refrigerator Tube Clamp
NIG242200102 Frigidaire Refrigerator Clip
NICLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NIA241844403 Frigidaire Refrigerator Tube
NIB241920106 Frigidaire Fill Tube Kit
NIC241964707 Frigidaire Refrigerator Water Tube
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NID241965906 Frigidaire Refrigerator Water Tube
NIE242220105 Frigidaire Refrigerator Water Tube
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NI241806601 Frigidaire Refrigerator Water Connector
NIA240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIF242220106 Frigidaire Tube-WATER
1218976436 Frigidaire Refrigerator Water Inlet Tube
25303918493 Frigidaire Refrigerator Ice Maker Assembly
455303307980 Frigidaire Oven Screw
515303918602 Frigidaire Refrigerator Water Tube Kit
55QUAD WATER VALVE
605304455852 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
70242041701 Frigidaire Refrigerator Ice Maker Bracket
74242127901 Frigidaire Refrigerator Ice Container
75242240101 Frigidaire Refrigerator Shield
