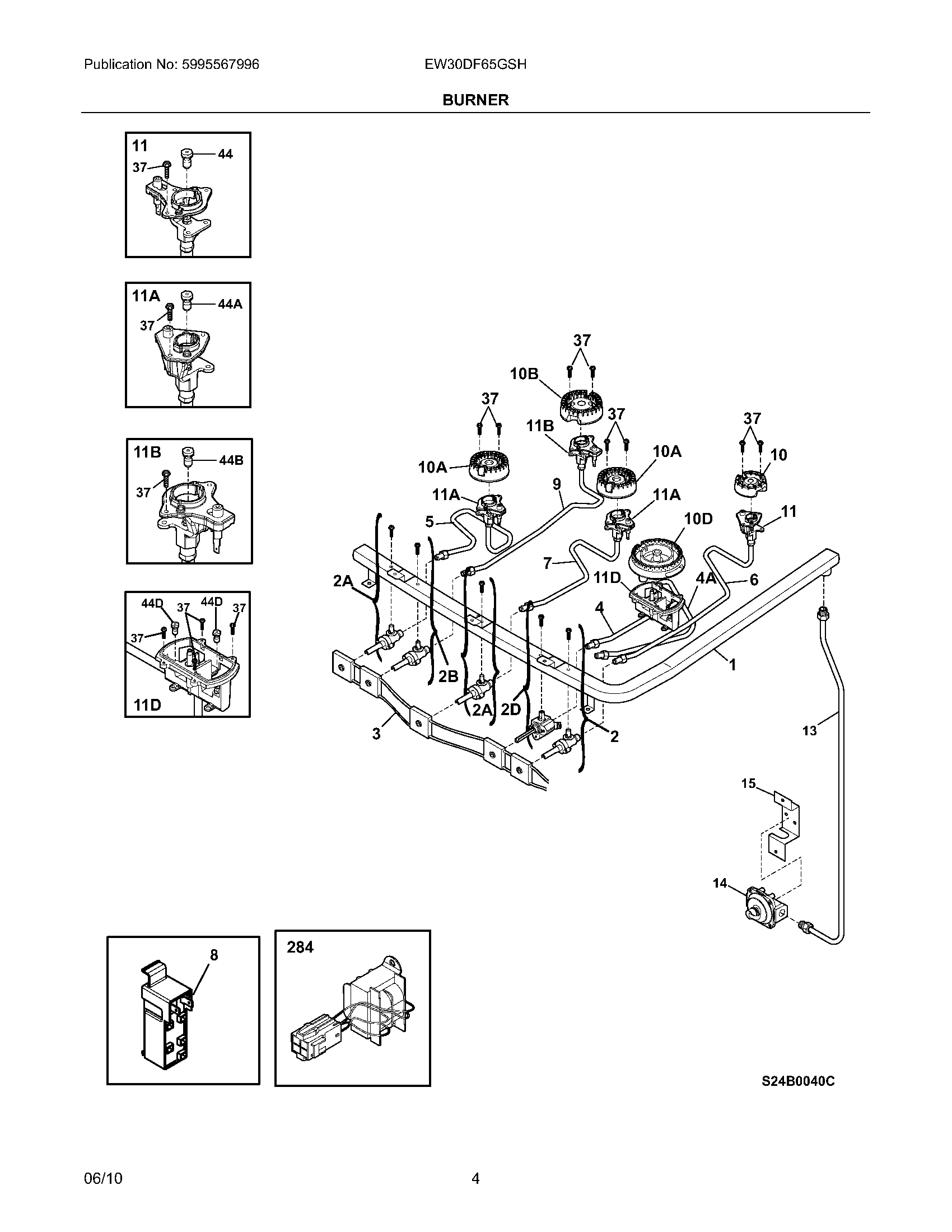

EW30DF65GSH 05 – BURNER

EW30DF65GSH 05 – BURNER

Written by

in

EW30DF65GSH 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NIWCI 316526900
NIWCI 316434900
NIWCI 316443201
NI316001017 Frigidaire Screw
NI316215600 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
1WCI 316505200
2DWCI 316574901
2BWCI 316520703
2A316520701 Frigidaire Oven Valve Assembly
2WCI 316520700
3316518201 Frigidaire Assembly Harness
4WCI 316509000
4AWCI 316509100
5WCI 316509300
6WCI 316509200
7WCI 316509400
85304508269 Frigidaire Oven Range Spark Module Kit
9WCI 316526600
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10DWCI 316525401
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11DWCI 316525100
11316540800 Frigidaire Igniter/Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
11B316543204 Frigidaire Igniter/Orifice Assembly
13WCI 316545700
14WCI 316470719
15316091600 Frigidaire Oven Bracket
37316540900 Frigidaire Oven Screw
44DWCI 316523508
44B316527511 Frigidaire Oven Orifice
44A316527500 Frigidaire Oven Burner Orifice
44316527504 Frigidaire Oven Orifice
284316536100 Frigidaire Transformer
