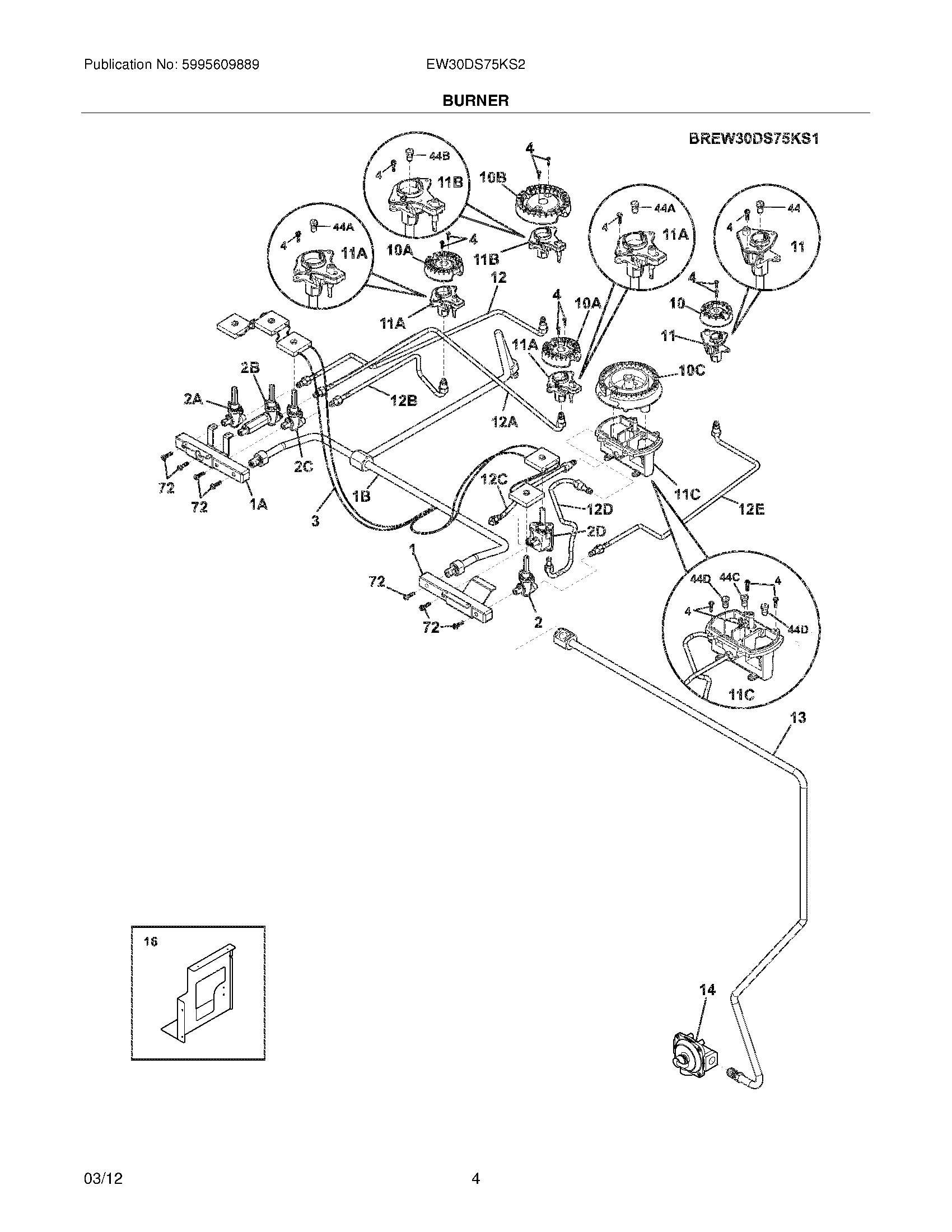

EW30DS75KS2 05 – BURNER

EW30DS75KS2 05 – BURNER

Written by

in

EW30DS75KS2 05 – BURNER

Products

PositionProduct
NI318199795 Frigidaire Wiring Harness
NI318186932 Frigidaire Lp Conversion Kit
NI318064866 Frigidaire Instruction Sheet
NIScrew,No.8-18 x 3/8 ,(10)
NI5303211311 Frigidaire Refrigerator Screw
1WCI 318941200
1A318941201 Frigidaire Oven Manifold
1B318305412 Frigidaire Oven Tube
2BWCI 318589200
2C318387402 Frigidaire Oven Valve
2A318387401 Frigidaire Oven Valve
2318387400 Frigidaire Oven Valve
2DWCI 316574901
3WCI 318232671
4316240600 Frigidaire Igniter Mounting Screw
10316438200 Frigidaire Range Sealed Burner, 5K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10B316438400 Frigidaire Range Sealed Burner, 16/17K
10CWCI 316525401
11B316543202 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
11CWCI 316525103
11A316540700 Frigidaire Igniter/Orifice Assembly
12AWCI 318916807
12318901301 Frigidaire Tubing
12B318901502 Frigidaire Tubing
12CWCI 318901900
12DWCI 318901700
12EWCI 318901100
13WCI 318902301
14318122721 Frigidaire Oven Regulator
16WCI 318590003
44A316527500 Frigidaire Oven Burner Orifice
44B316527508 Frigidaire Oven Orifice
44CWCI 316523509
44DWCI 316523512
44316527504 Frigidaire Oven Orifice
72316215600 Frigidaire Oven Screw
