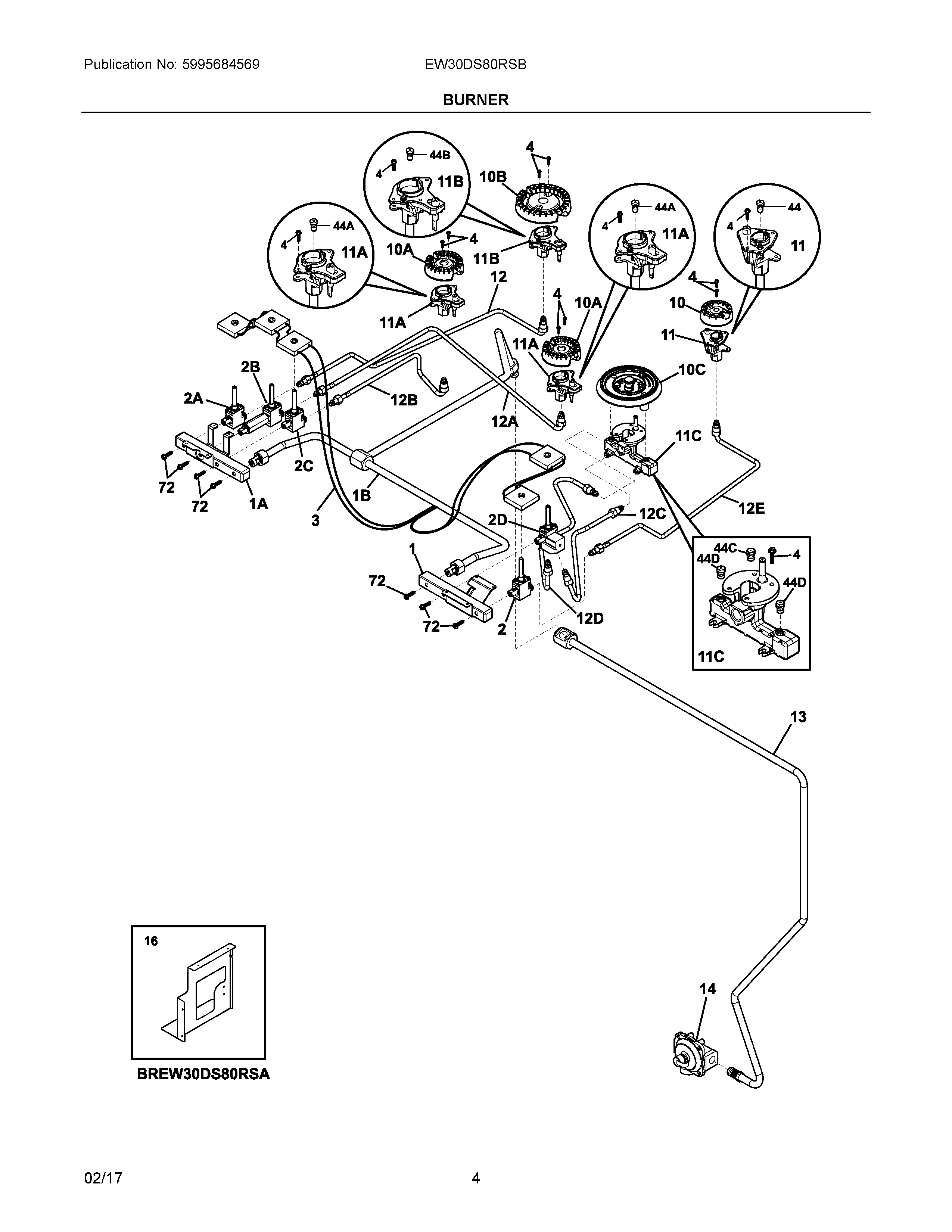

EW30DS80RSB 03 – BURNER

EW30DS80RSB 03 – BURNER

Written by

in

EW30DS80RSB 03 – BURNER

Products

PositionProduct
NIA316566901 Frigidaire Oven Sleeve
NI318186932 Frigidaire Lp Conversion Kit
NI318199795 Frigidaire Wiring Harness
NICWCI 5304503473
NI316021109 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1B318305412 Frigidaire Oven Tube
1MANIFOLD, ASSEMBLY, RIGHT SIDE
1A318941201 Frigidaire Oven Manifold
2316271305 Frigidaire Oven Valve
2DVALVE, TOP BURNER, DUAL
2B807068401 Frigidaire Valve
2C316271303 Frigidaire Oven Valve
2A316271304 Frigidaire Valve
3IGNITOR SWITCHES, ASSEMBLY, W/HARNESS
4316540900 Frigidaire Oven Screw
10316438200 Frigidaire Range Sealed Burner, 5K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10B316438400 Frigidaire Range Sealed Burner, 16/17K
10CA5304501023 Frigidaire Burner Assembly
11B316543202 Frigidaire Igniter/Orifice Assembly
11C316440105 Frigidaire Igniter Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
12B318901502 Frigidaire Tubing
12318901301 Frigidaire Tubing
12CTUBE, G5 BURNER, LOW
12EWCI 318901100
12DTUBE, G5 BURNER, HIGH
12AWCI 318916807
13WCI 318902301
14318122721 Frigidaire Oven Regulator
16WCI 318590003
44316527504 Frigidaire Oven Orifice
44A316527500 Frigidaire Oven Burner Orifice
44D316527502 Frigidaire Oven Orifice
44B316527508 Frigidaire Oven Orifice
44C316527520 Frigidaire Oven Orifice
72316215600 Frigidaire Oven Screw
