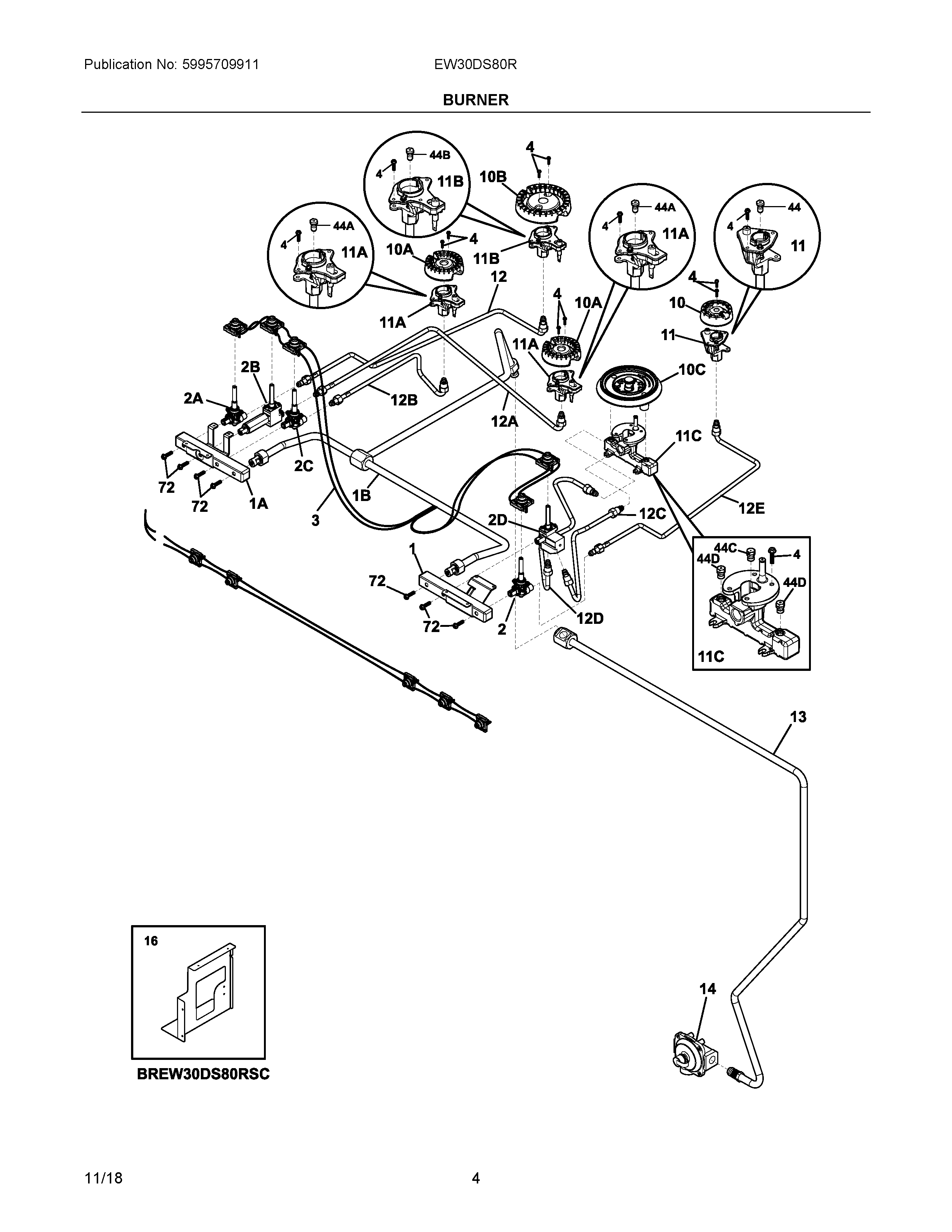

EW30DS80RSD 03 – BURNER

EW30DS80RSD 03 – BURNER

Written by

in

EW30DS80RSD 03 – BURNER

Products

PositionProduct
NI318186932 Frigidaire Lp Conversion Kit
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NICAWCI 5304503473
NIA316566901 Frigidaire Oven Sleeve
NI318199795 Frigidaire Wiring Harness
1A318941201 Frigidaire Oven Manifold
1B318305412 Frigidaire Oven Tube
1MANIFOLD, ASSEMBLY, RIGHT SIDE
2VALVE, TOP BURNER, GREEN STEM, 1000BTU
2A5304507288 Frigidaire Oven Valve
2DVALVE, TOP BURNER, DUAL
2B807068401 Frigidaire Valve
2C5304507287 Frigidaire Oven Valve
3IGNITOR SWITCHES, ASSEMBLY, W/HARNESS
4316540900 Frigidaire Oven Screw
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10316438200 Frigidaire Range Sealed Burner, 5K
10C5304501023 Frigidaire Burner Assembly
10B316438400 Frigidaire Range Sealed Burner, 16/17K
11C316440105 Frigidaire Igniter Orifice Assembly
11B316543202 Frigidaire Igniter/Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
12CTUBE, G5 BURNER, LOW
12DTUBE, G5 BURNER, HIGH
12B318901502 Frigidaire Tubing
12AWCI 318916807
12318901301 Frigidaire Tubing
12EWCI 318901100
13WCI 318902301
14318122721 Frigidaire Oven Regulator
16WCI 318590003
44C316527520 Frigidaire Oven Orifice
44B316527508 Frigidaire Oven Orifice
44D316527502 Frigidaire Oven Orifice
44A316527500 Frigidaire Oven Burner Orifice
44316527504 Frigidaire Oven Orifice
72316215600 Frigidaire Oven Screw
