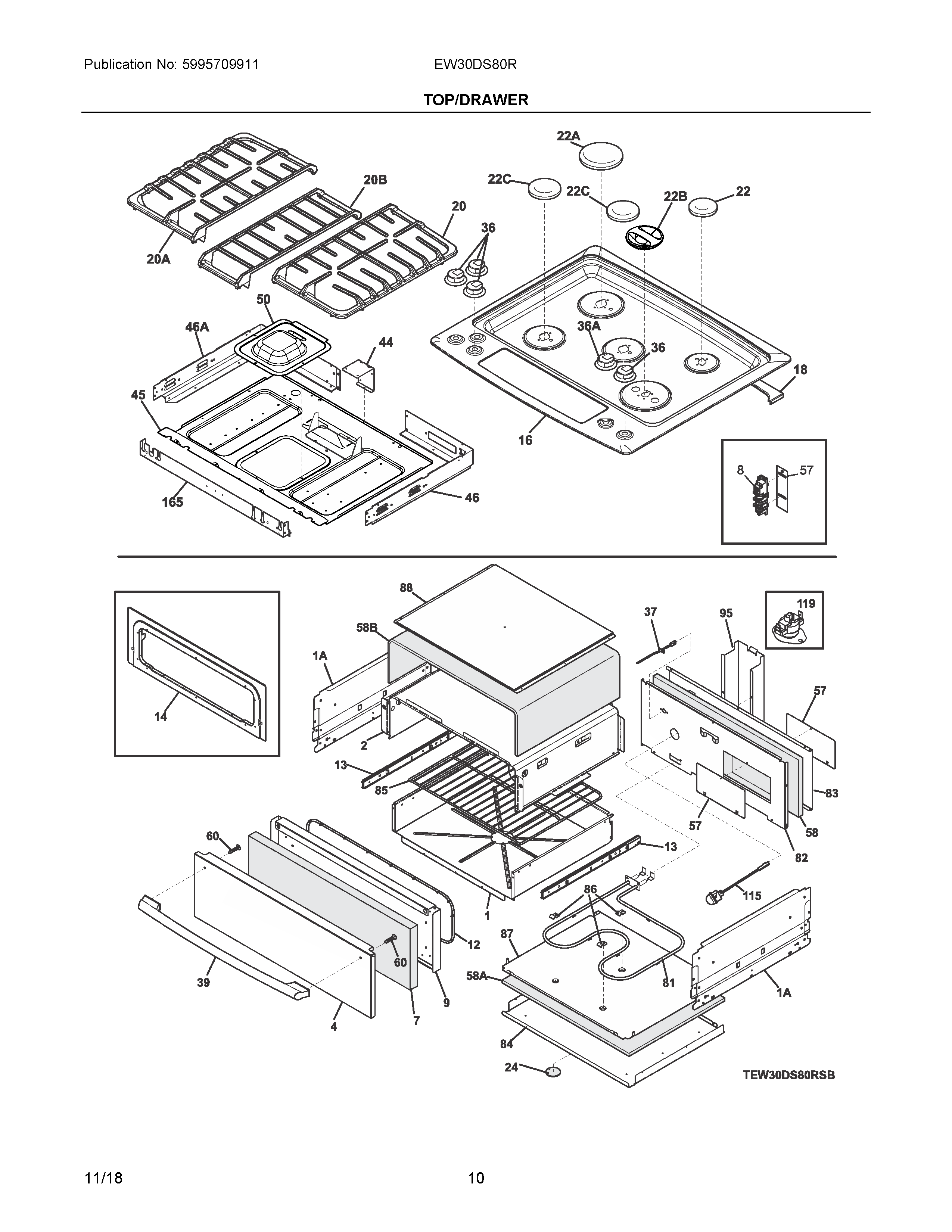

EW30DS80RSE 05 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIWCI 318163602
NI5303288565 Frigidaire Screw
NI5304517816 Frigidaire Harness
NI316021109 Frigidaire Oven Screw
NIA5304505563 Frigidaire Oven Wire
NIA318534403 Frigidaire Oven Gasket
NIWCI 807875201
1A318300002 Frigidaire Panel
1318384703 Frigidaire Oven Body
2318384601 Frigidaire Oven Wrapper
45304503253 Frigidaire Oven Panel
7WCI 5304503261
8SPARK MODULE
95304503255 Frigidaire Oven Liner
12318053326 Frigidaire Oven Seal
13318385600 Frigidaire Oven Glide
14318385401 Frigidaire COVER
15318295611 Frigidaire Panel
16MAINTOP ASSEMBLY, STAINLESS, W/SUPPORT, W/GRAPHICS
18WCI 318906900
20BGrate,burner ,black ,center
20318909206 Frigidaire Oven Grate
20AWCI 318909207
22C5304508442 Frigidaire Oven Surface Burner Cap
22CAP
22B5304499569 Frigidaire Cap
22A5304508468 Frigidaire Oven Cap
24WCI 318346050
365304491269 Frigidaire KNOB
36A5304491270 Frigidaire Oven Knob
37316217005 Frigidaire Oven Probe
39316380802 Frigidaire Oven Handle
44WCI 318905500
45PANEL, BURNER BOX, BOTTOM
46WCI 318568200
46AWCI 318568201
50PANEL, SERVICE, FAN
57WCI 318386301
58BWCI 318362129
58AWCI 318362173
58WCI 318362120
605304414648 Frigidaire Oven Screw
81318255306 Frigidaire Element
82WCI 5304501677
83WCI 5304501689
84WCI 318593800
85318908100 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 318295313
88318532303 Frigidaire Oven Panel
95139008401 Frigidaire Oven Shield
1155304528790 Frigidaire Lamp Assembly Appliance
119318004902 Frigidaire Oven Switch
165WCI 318568301
