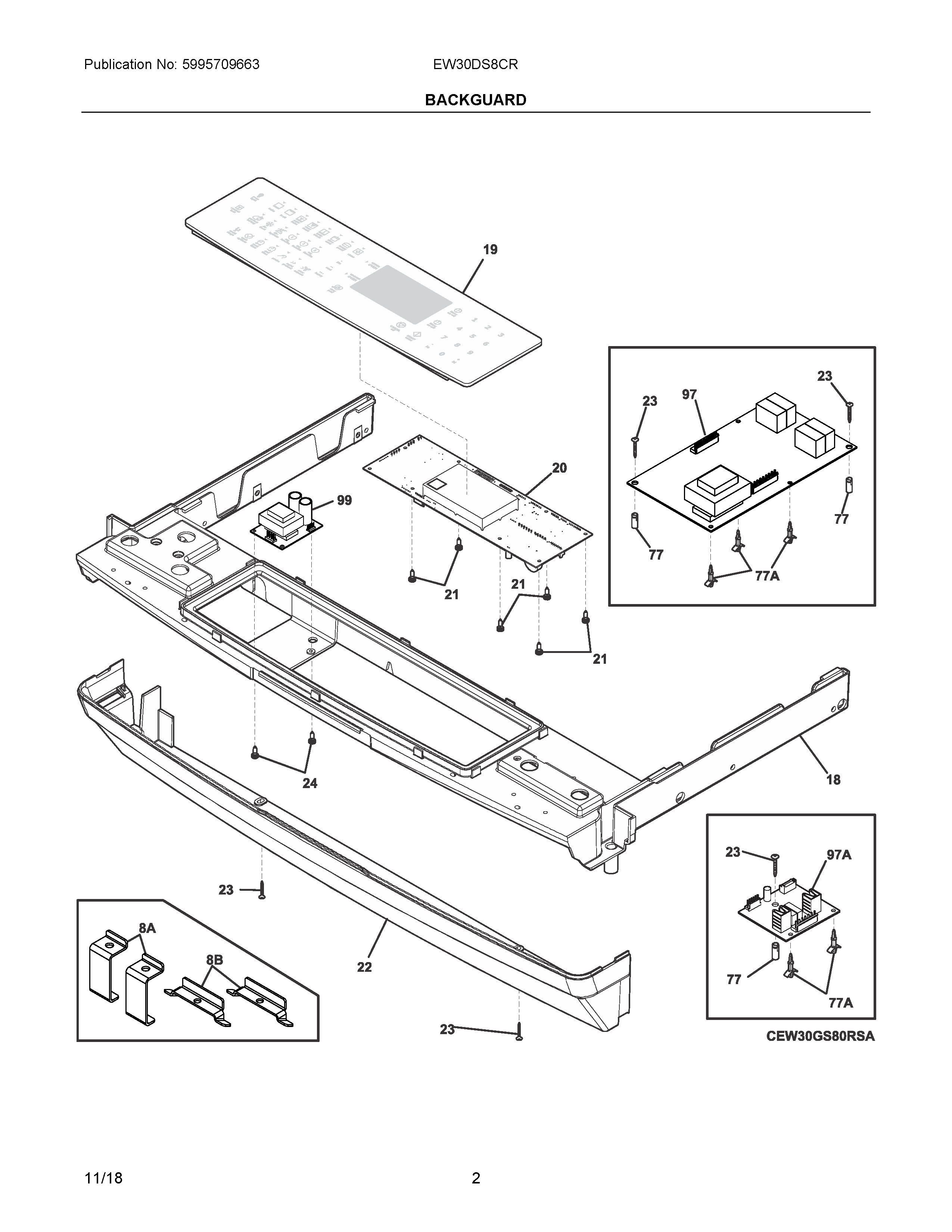

EW30DS8CRSE 02 – BACKGUARD

EW30DS8CRSE 02 – BACKGUARD

Written by

in

EW30DS8CRSE 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIHARNESS, WIRING, POWER SUPPLY
NI5304517816 Frigidaire Harness
NIHARNESS, WIRING, COMMUNICATION, RLY/PWR TO CNTL
NI316001017 Frigidaire Screw
8BWCI 318403202
8A318403105 Frigidaire Oven Bracket
18WCI 318900303
19WCI 318387130
20316576716 Frigidaire Controller
21316524400 Frigidaire Oven Screw
22318905005 Frigidaire Oven Panel
235303289910 Frigidaire Oven Screw
24Screw,cup pt ,8-18 x 0.375 ,chrome
77316247900 Frigidaire Oven Spacer
77A316114100 Frigidaire Oven Spacer
97316443916 Frigidaire Oven Range Relay Board
97A316519200 Frigidaire Oven Control Board
99316535201 Frigidaire Oven Board
