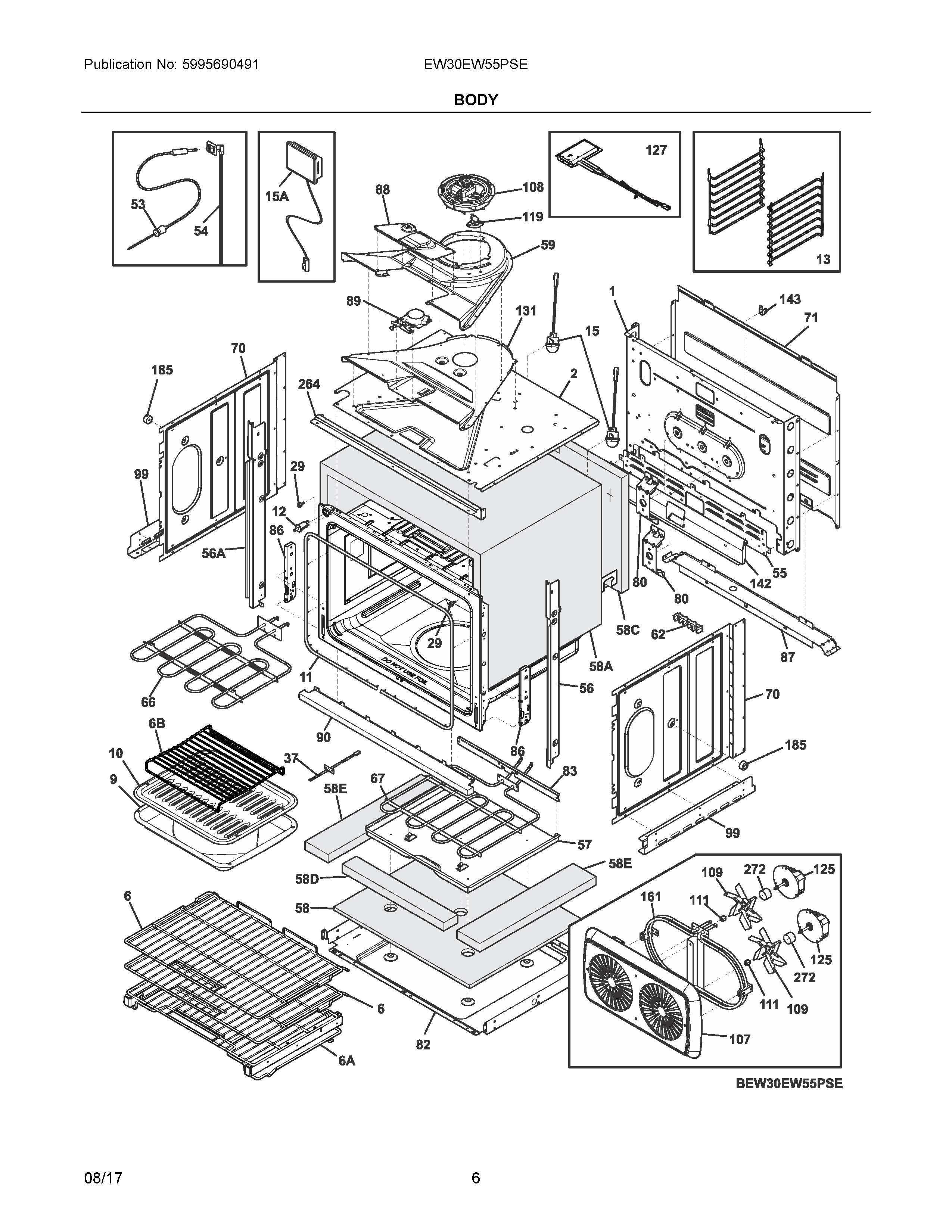

EW30EW55PSE 03 – BODY

EW30EW55PSE 03 – BODY

Written by

in

EW30EW55PSE 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI807597603 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NI5304470882 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NIAA318946400 Frigidaire Oven Bulb
NI5304517285 Frigidaire Assembly Harness
NI316021109 Frigidaire Oven Screw
NIWCI 5304513087
NIA316001017 Frigidaire Screw
NI5303289910 Frigidaire Oven Screw
NI5304506983 Frigidaire Harness Assembly
NIA316205500 Frigidaire Oven Nut
1PANEL, MAIN BACK, UPPER OVEN
2SHIELD, INSULATION, TOP
6A808713906 Frigidaire Glade Rack
6808713913 Frigidaire Rack Assembly
6BWCI 318219500
9316081901 Frigidaire Oven Baking Pan
10316082001 Frigidaire Oven Insert
11807545504 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
13808713901 Frigidaire Ladder Assembly
15AWCI 139001800
155304528790 Frigidaire Lamp Assembly Appliance
29316517601 Frigidaire Bumper
37SENSOR
535304503737 Frigidaire Black Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
55PANEL, SERVICE, MAIN BACK
56TRIM, SIDE, SILVER MIST, RH
56ATRIM, SIDE, SILVER MIST, LH
575304506949 Frigidaire Box
58A139001700 Frigidaire Insulation
58C5304507679 Frigidaire Insulation
58EINSULATION, LOWER, SIDE, (2)
585304506952 Frigidaire Insulation
58D5304506965 Frigidaire Insulation
59139027600 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521861 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139020000 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304507676 Frigidaire Shield
835304506951 Frigidaire Shield Appliance
86139026900 Frigidaire Receptacle
87139020100 Frigidaire Oven Bracket
885304506964 Frigidaire Oven Cover
895304528835 Frigidaire Motor
90318903514 Frigidaire Oven Trim
99318256201 Frigidaire Oven Bracket
107WCI 139001502
108318575614 Frigidaire Oven Wall Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318578506 Frigidaire Oven High Limit Thermostat
125139008504 Frigidaire Oven Motor
127WCI 807123502
131139027700 Frigidaire Oven Duct
1425304507678 Frigidaire Shield
143318172904 Frigidaire Bracket
1615304522063 Frigidaire Element
185318531800 Frigidaire Oven Spacer
264139017601 Frigidaire Oven Trim
272139021700 Frigidaire Oven Tube
