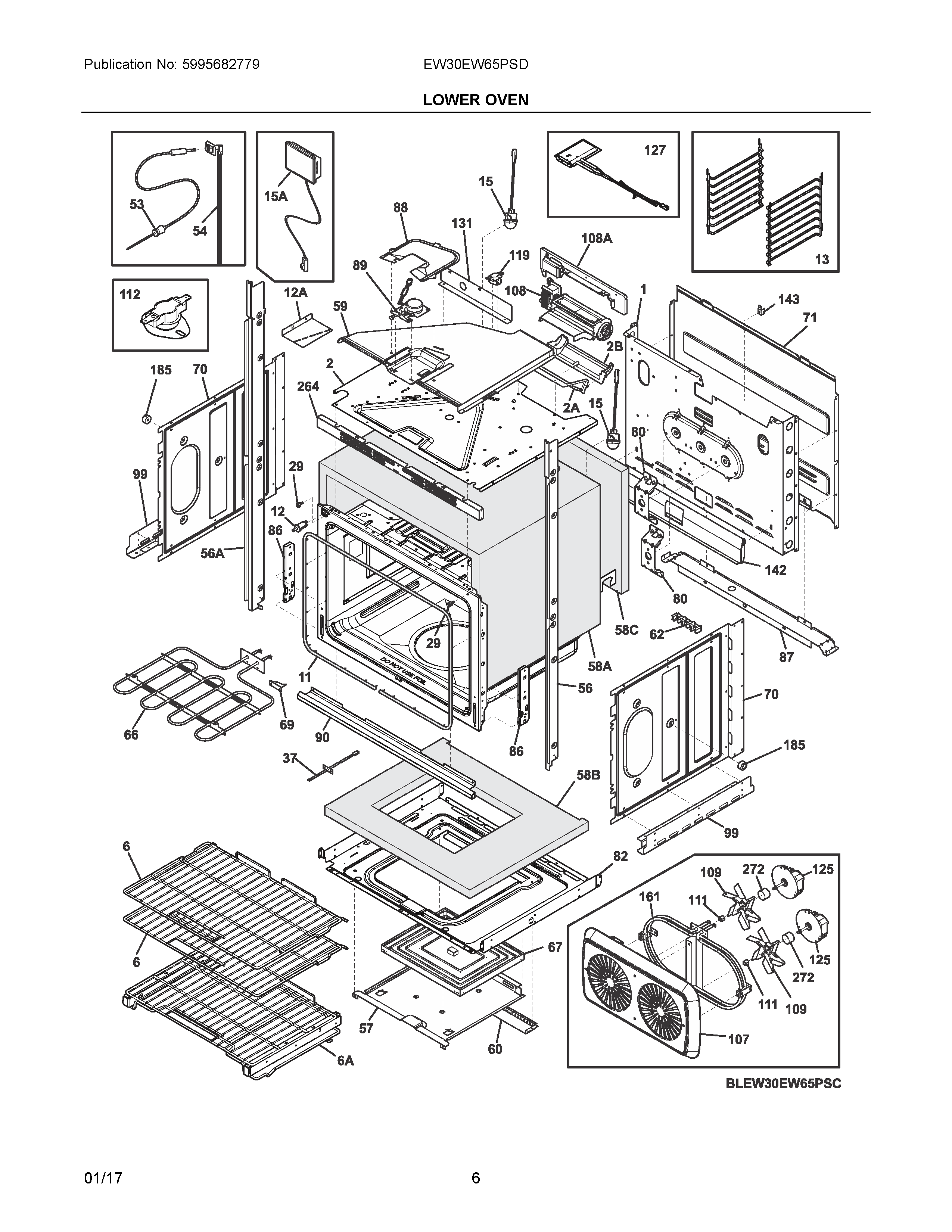

EW30EW65PSD 04 – LOWER OVEN

EW30EW65PSD 04 – LOWER OVEN

Written by

in

EW30EW65PSD 04 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI807597603 Frigidaire Oven Screw
NIBWCI 318231870
NIBA316021119 Frigidaire Oven Screw
NI5304501347 Frigidaire Harness
NIA807181801 Frigidaire Wiring Harness
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI5304517285 Frigidaire Assembly Harness
NIA316418900 Frigidaire Oven Screw
NI5304506955 Frigidaire Harness Assembly
NIAA318946400 Frigidaire Oven Bulb
NI5304470882 Frigidaire Oven Screw
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIA316001017 Frigidaire Screw
NIA139022101 Frigidaire Insulation
NIA316205500 Frigidaire Oven Nut
NI316021109 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
NIA5303323130 Frigidaire Oven Screw
1WCI 139017301
2A139015900 Frigidaire SHIELD
2B139038901 Frigidaire Oven Housing
2WCI 139028103
6808713913 Frigidaire Rack Assembly
6A808713906 Frigidaire Glade Rack
11807545504 Frigidaire Oven Seal
12A807641201 Frigidaire Shield
12808136601 Frigidaire Oven Switch
13808713901 Frigidaire Ladder Assembly
155304528790 Frigidaire Lamp Assembly Appliance
15AWCI 139001800
29316517601 Frigidaire Bumper
37SENSOR
535304503737 Frigidaire Black Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
56TRIM, SIDE FILLER, STAINLESS, RH
56ATRIM, SIDE FILLER, STAINLESS, LH
57807988901 Frigidaire Oven Panel
58C139021400 Frigidaire Insulation
58A139001700 Frigidaire Insulation
58B807989001 Frigidaire Insulation
59139015700 Frigidaire Duct
60807285601 Frigidaire Oven Shield
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521861 Frigidaire Element
67318601604 Frigidaire Oven Bake Element
69WCI 139022500
70139000601 Frigidaire Oven Shield
71139020000 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
82807988802 Frigidaire Shield
86139026900 Frigidaire Receptacle
87139020100 Frigidaire Oven Bracket
885304506963 Frigidaire Cover
89139021302 Frigidaire Oven Motor
90318903536 Frigidaire Oven Trim
99318256201 Frigidaire Oven Bracket
107WCI 139001502
108WCI 139038301
108A139023900 Frigidaire Oven Bracket
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
1125304494446 Frigidaire Oven Switch
119318578506 Frigidaire Oven High Limit Thermostat
125139008504 Frigidaire Oven Motor
127WCI 807123502
1315304507691 Frigidaire Cover
1425304507678 Frigidaire Shield
143318172904 Frigidaire Bracket
1615304522063 Frigidaire Element
185318531800 Frigidaire Oven Spacer
264139007801 Frigidaire Oven Trim
272139021700 Frigidaire Oven Tube
