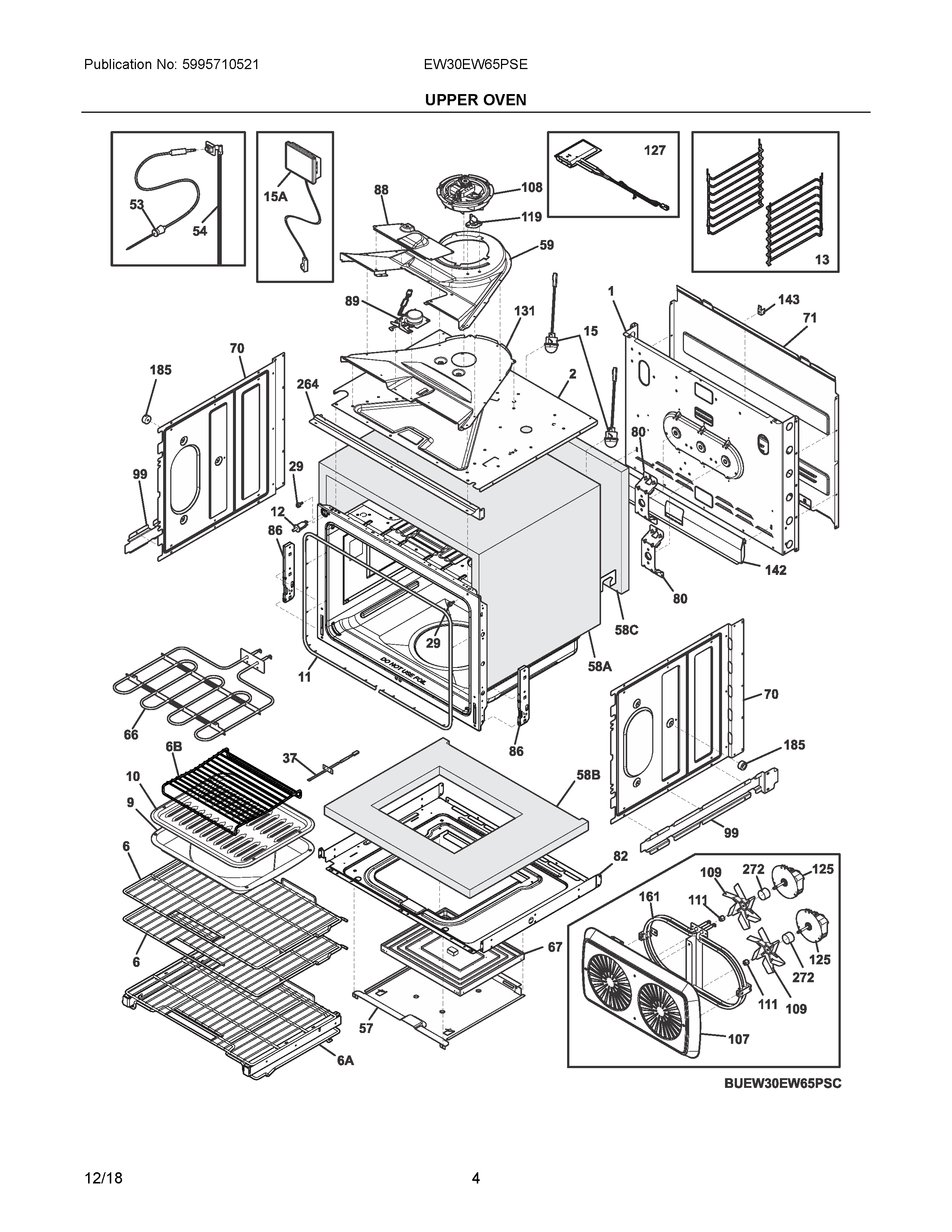

EW30EW65PSE 03 – UPPER OVEN

EW30EW65PSE 03 – UPPER OVEN

Written by

in

EW30EW65PSE 03 – UPPER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NIA318946400 Frigidaire Oven Bulb
NI807597603 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI316021109 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
1PANEL, MAIN BACK, UPPER OVEN
2SHIELD, INSULATION, TOP
6BWCI 318219500
6808713913 Frigidaire Rack Assembly
6A808713906 Frigidaire Glade Rack
9316081901 Frigidaire Oven Baking Pan
10316082001 Frigidaire Oven Insert
11807545504 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
13808713901 Frigidaire Ladder Assembly
155304528790 Frigidaire Lamp Assembly Appliance
15AAWCI 139001800
29316517601 Frigidaire Bumper
37SENSOR
54139017203 Frigidaire Assembly Receptacle
575304506949 Frigidaire Box
58C5304507679 Frigidaire Insulation
58B807989001 Frigidaire Insulation
58A139001700 Frigidaire Insulation
59139027600 Frigidaire Oven Duct
665304521861 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139020000 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304507676 Frigidaire Shield
86139026900 Frigidaire Receptacle
885304506964 Frigidaire Oven Cover
895304528835 Frigidaire Motor
99A316519205 Frigidaire Oven Board
99139005201 Frigidaire Bracket
107WCI 139001502
108318575614 Frigidaire Oven Wall Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318578506 Frigidaire Oven High Limit Thermostat
125139008504 Frigidaire Oven Motor
127WCI 807123502
131139027700 Frigidaire Oven Duct
1425304507678 Frigidaire Shield
143318172904 Frigidaire Bracket
1615304522063 Frigidaire Element
185318531800 Frigidaire Oven Spacer
264139017601 Frigidaire Oven Trim
272139021700 Frigidaire Oven Tube
