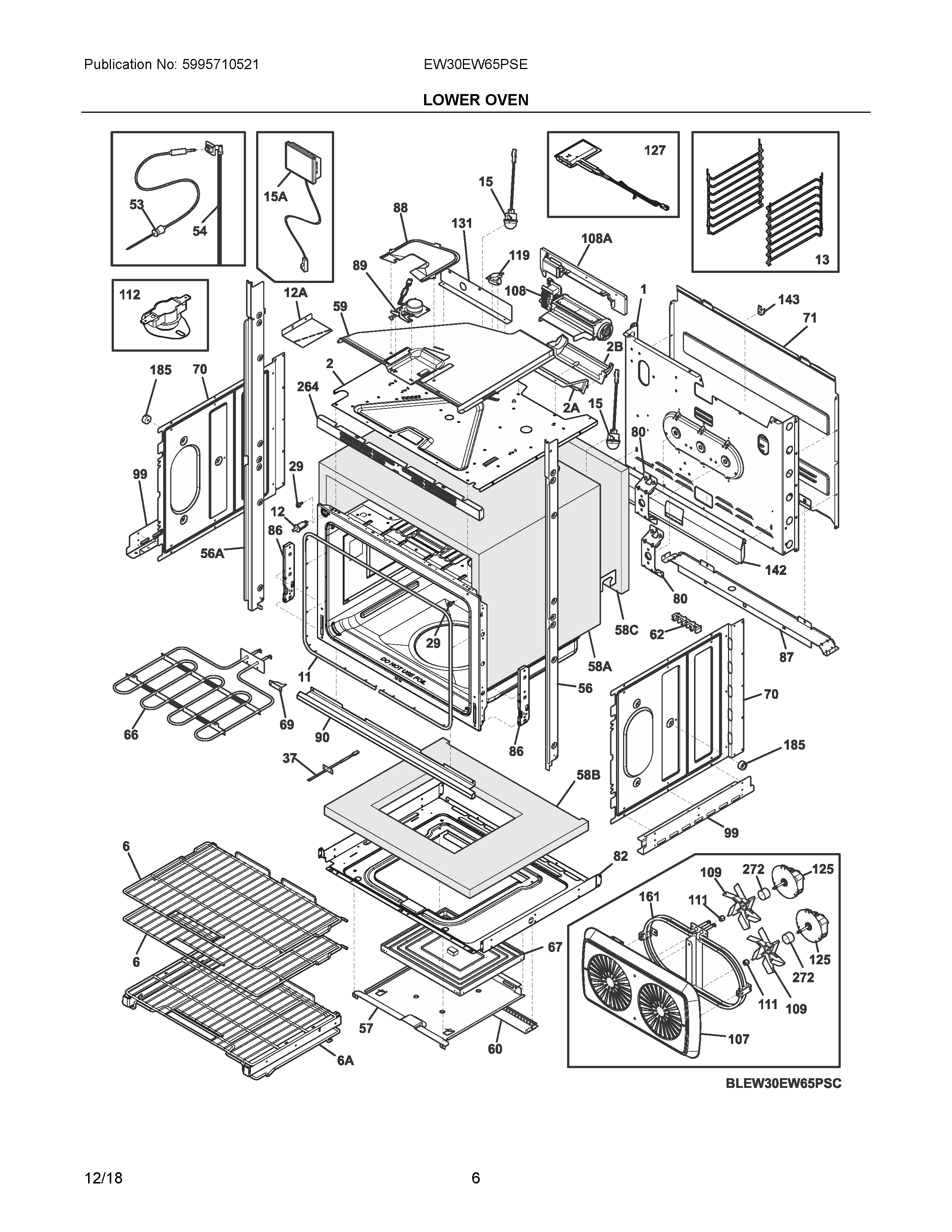

EW30EW65PSE 04 – LOWER OVEN

EW30EW65PSE 04 – LOWER OVEN

Written by

in

EW30EW65PSE 04 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304470882 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI807597603 Frigidaire Oven Screw
NI5304517285 Frigidaire Assembly Harness
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIBA316021119 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NIA318946400 Frigidaire Oven Bulb
NI5303289910 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIA316205500 Frigidaire Oven Nut
NIA139022101 Frigidaire Insulation
NIA316001017 Frigidaire Screw
NIA5304517383 Frigidaire Harness
1PANEL, MAIN BACK, UPPER OVEN
2SHIELD, INSULATION, TOP
2B139038901 Frigidaire Oven Housing
2AWCI 139028103
2A139015900 Frigidaire SHIELD
6A808713906 Frigidaire Glade Rack
6808713913 Frigidaire Rack Assembly
11807545504 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
12A807641201 Frigidaire Shield
13808713901 Frigidaire Ladder Assembly
15AAWCI 139001800
155304528790 Frigidaire Lamp Assembly Appliance
29316517601 Frigidaire Bumper
37SENSOR
535304503737 Frigidaire Black Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
56ATRIM, SIDE FILLER, STAINLESS, LH
56TRIM, SIDE FILLER, STAINLESS, RH
575304506949 Frigidaire Box
58C5304507679 Frigidaire Insulation
58B807989001 Frigidaire Insulation
58A139001700 Frigidaire Insulation
59139027600 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521861 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139020000 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304507676 Frigidaire Shield
86139026900 Frigidaire Receptacle
87139020100 Frigidaire Oven Bracket
885304506963 Frigidaire Cover
895304528835 Frigidaire Motor
90318903514 Frigidaire Oven Trim
99318256201 Frigidaire Oven Bracket
107WCI 139001502
108A139023900 Frigidaire Oven Bracket
108318575614 Frigidaire Oven Wall Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
1125304494446 Frigidaire Oven Switch
119THERMOSTAT,SAFETY,125C
125139008504 Frigidaire Oven Motor
127WCI 807123502
131139027700 Frigidaire Oven Duct
1425304507678 Frigidaire Shield
143318172904 Frigidaire Bracket
1615304522063 Frigidaire Element
185318531800 Frigidaire Oven Spacer
264139017601 Frigidaire Oven Trim
272139021700 Frigidaire Oven Tube
