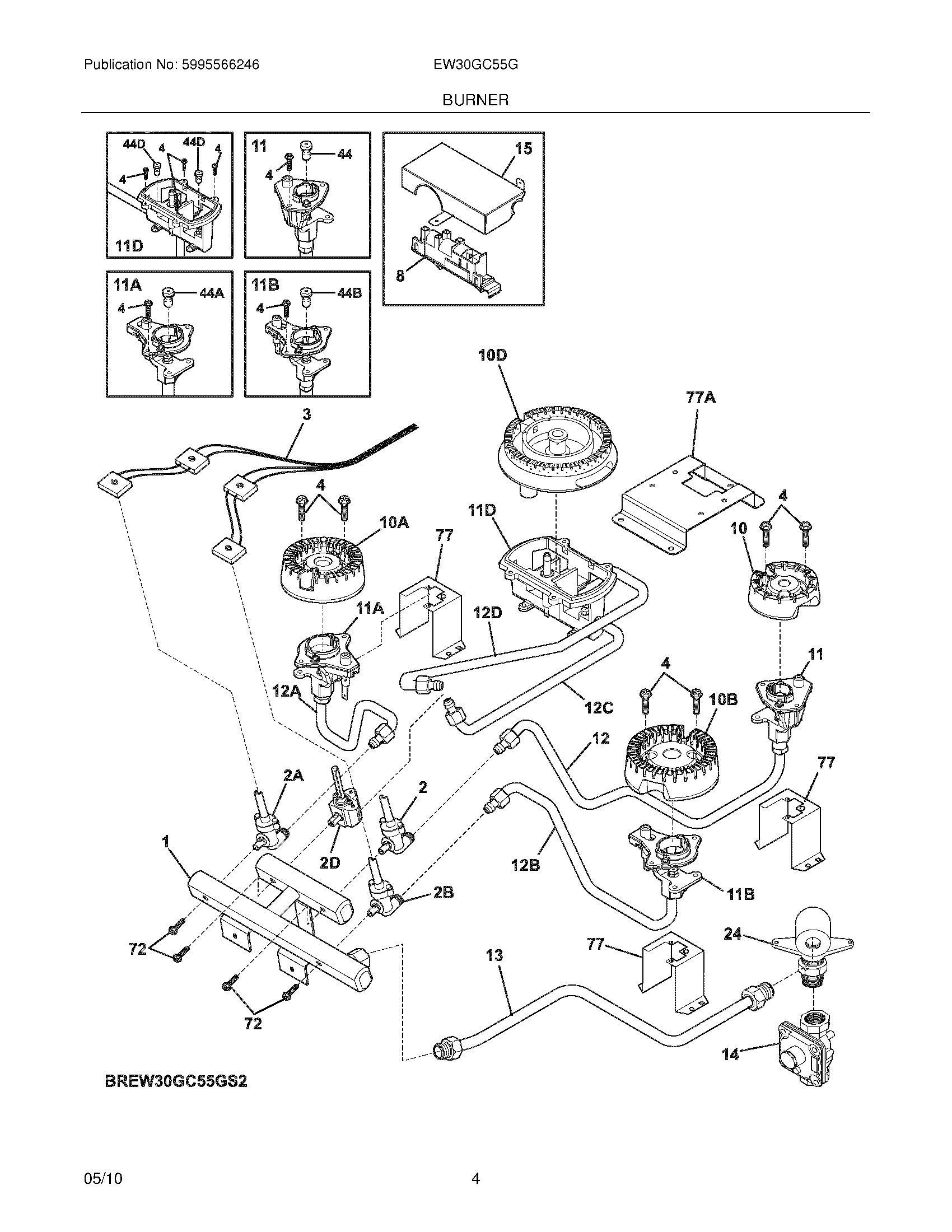

EW30GC55GB2 05 – BURNER

EW30GC55GB2 05 – BURNER

Written by

in

EW30GC55GB2 05 – BURNER

Products

PositionProduct
NI5303323140 Frigidaire Oven Screw
NI5303323137 Frigidaire Oven Screw
NIWCI 318199779
NIWCI 318127445
NI5303211311 Frigidaire Refrigerator Screw
NI5303311174 Frigidaire Oven Screw
NI5304480396 Frigidaire Screw
1WCI 318379200
2A318387401 Frigidaire Oven Valve
2DWCI 316574901
2318387400 Frigidaire Oven Valve
2B318387402 Frigidaire Oven Valve
3WIRING HARNESS, W/IGNTR SWITCH
4316240600 Frigidaire Igniter Mounting Screw
85304505695 Frigidaire Oven Module
10B316438600 Frigidaire Range Sealed Burner, 14K
10316438200 Frigidaire Range Sealed Burner, 5K
10DWCI 316525401
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11DWCI 316525103
11316540800 Frigidaire Igniter/Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
11B316543204 Frigidaire Igniter/Orifice Assembly
12DTUBING, TOP BURNER, 18K, LEFT REAR
12CTUBING, TOP BURNER, 18K, LEFT REAR
12BTUBING, TOP BURNER, 14K, RIGHT FRONT
12ATUBING, TOP BURNER, 9.5K, LEFT FRONT
12TUBING, TOP BURNER, 5K, RIGHT REAR
13PIPE, MANIFOLD INLET
14REGULATOR, PRESSURE
15DEFLECTOR, SPARK MODULE
24318054010 Frigidaire Oven Elbow
44316527504 Frigidaire Oven Orifice
44A316527500 Frigidaire Oven Burner Orifice
44DWCI 316523512
44B316527511 Frigidaire Oven Orifice
72316215600 Frigidaire Oven Screw
77WCI 318920303
77AWCI 318384103
