EW30GC60PS0 03 – BURNER

EW30GC60PS0 03 – BURNER

Written by

in

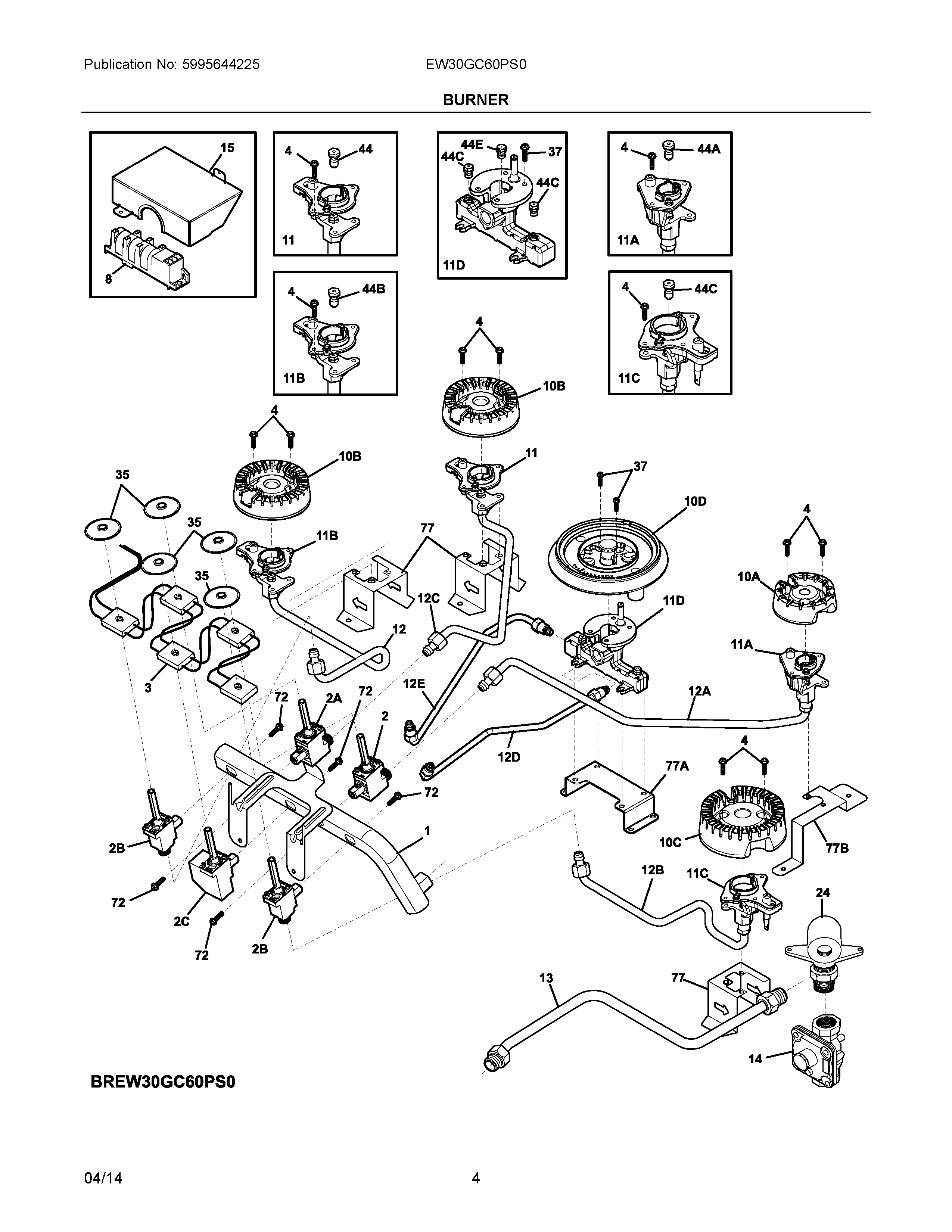

EW30GC60PS0 03 – BURNER

Products

PositionProduct
NI305338702 Frigidaire Screw
NIWCI 808695305
NIAWCI 318199789
NIA803910601 Frigidaire Screw
NIDA316566901 Frigidaire Oven Sleeve
NIC305452800 Frigidaire Screw
NIB305338601 Frigidaire Screw
NI305338602 Frigidaire Screw
1WCI 318569804
2CWCI 316272302
2B316560902 Frigidaire Oven Valve
2WCI 316271307
2AWCI 316271310
3WCI 305595101
4316240600 Frigidaire Igniter Mounting Screw
8SPARK MODULE
10D5304519952 Frigidaire Burner Assembly
10A316438200 Frigidaire Range Sealed Burner, 5K
10C316438600 Frigidaire Range Sealed Burner, 14K
10B316558300 Frigidaire Oven 9.5L Sealed Burner
11A316540800 Frigidaire Igniter/Orifice Assembly
11B316540700 Frigidaire Igniter/Orifice Assembly
11WCI 316540704
11C316543208 Frigidaire Igniter/Orifice Assembly
11D316440105 Frigidaire Igniter Orifice Assembly
12DWCI 809112201
12AWCI 318560724
12WCI 318560725
12EWCI 809112301
12CWCI 318560726
12B318560723 Frigidaire Tube
13WCI 318054517
14WCI 318122717
15WCI 318024209
24318054010 Frigidaire Oven Elbow
35807164301 Frigidaire Oven Bushing
37305309701 Frigidaire Oven Screw
44B316527500 Frigidaire Oven Burner Orifice
44A316527504 Frigidaire Oven Orifice
44C316527502 Frigidaire Oven Orifice
44WCI 316527518
44E316527520 Frigidaire Oven Orifice
72316215600 Frigidaire Oven Screw
77WCI 318920309
77BWCI 318920304
77AWCI 305583001
